Gradient syncFURNACE mOD-200 - Page 68

syncFURNACE OD Instruction & Installation Manual – Rev 09 Pg. 68 of 81

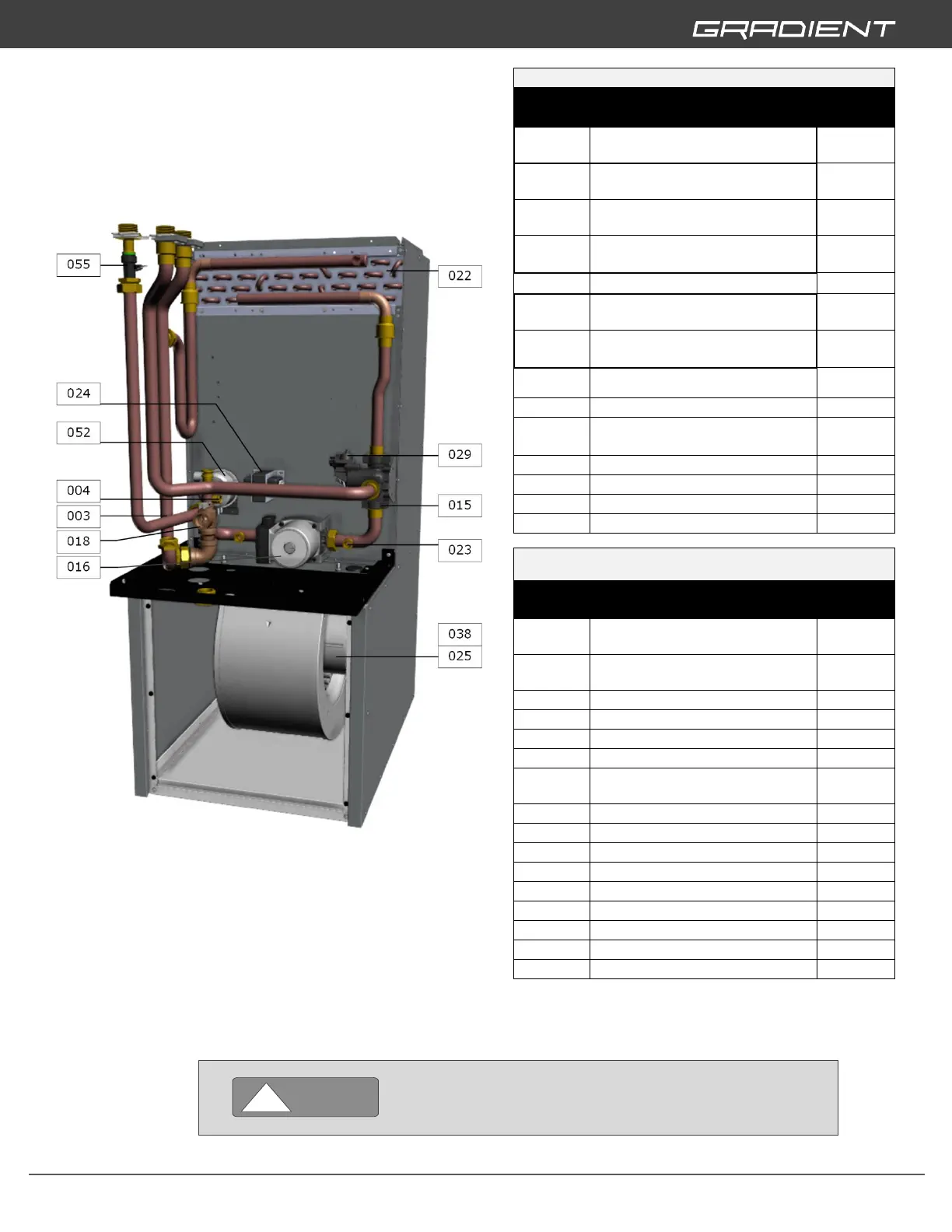

syncFURANCE OD Replacement Parts List - Shown
Item No.
Component Description
Order
Part No.
022
WARM-AIR HEATING COIL > 17.5”
WIDE, 30” DEEP MODELS
111242
022
WARM-AIR HEATING COIL > 17.5”
WIDE, 37” DEEP MODELS
110931
022
WARM-AIR HEATING COIL > 21”
WIDE MODELS
110932
022
WARM-AIR HEATING COIL > 24”
WIDE MODELS
110946
023
FAN-COIL MANUAL AIR BLEEDER
110164
024
24Vac TRANSFORMER - 40va >
STANDARD
110165
024
24Vac TRANSFORMER - 75va >
ZONED / HV PRODUCT VERSIONS
111162
025
FAN-COIL BLOWER & MOTOR
ASSY
CALL
029
STEPPER MOTOR
110156
030
CONDEN TRAP HOSE – 10L
111260
030
CONDEN TRAP HOSE
111252
031
CONDENSATION TRAP
110171
033
CONTROL ASSY
110087
038
FAN-COIL BLOWER MOTOR ONLY
CALL
052
BLOCKED TRAP PRES SWITCH
110170
syncFURANCE OD Replacement Parts List - NOT
Shown
Item No.
Component Description
Order
Part No.
027
PSC FAN BOARD > PSC MODELS
ONLY
111125
039
COMBUSTION BLOWER TO
BURNER GASKET
110104
040
DIRECT SPARK IGNITOR GASKET
110176
041
FLAME SENSOR GASKET
110177
042
BURNER DOOR GASKET
110178
043
BURNER DOOR REFRACTORY
110179
044
COMBUSTION CHAMBER
REFRACTORY
110180
045
1" G RUBBER GASKET
110061
046
3/4" G RUBBER GASKET
110571
047
MAIN POWER WIRE HARNESS
110210
048
FAN-COIL WIRE HARNESS
110090
049
DUCT SENSOR - 12" PROBE
110181
050
OUTDOOR / INDOOR SENSOR
110182
051
RETURN AIR SENSOR
110183
053
SPARK IGNITION CABLE
110184
054
FLAME SENSE CABLE
110197
When ordering replacement parts, product
MODEL, SERIAL number listed on the rating
plate and site address must be provided.
!
NOTE
