Function Settings and Operations
4-29

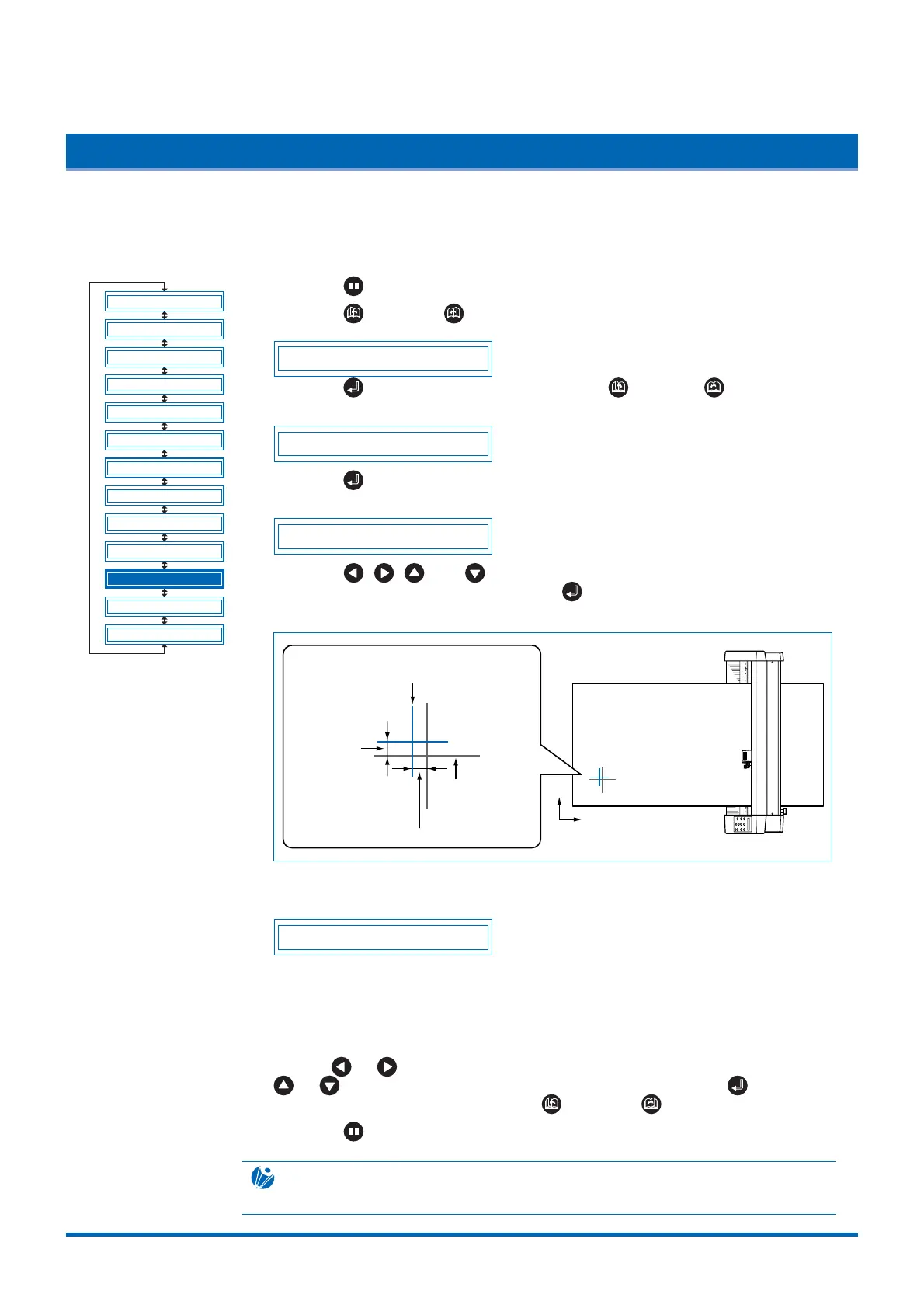

4.25 Adjusting the Distance Between the Pens
This function compensates for the difference in position between the cutter pen and the plotter pen. First of
all, mount a plotter pen in the pen station and draw a cross. Next, mount a plotter pen in the cutter pen
holder and draw a second cross (the reference cross). The difference between the two crosses can be
adjusted by inputting corrective values. The setting range is within -3.0 mm to +3.0 mm, in 0.1 mm intervals.
(1) Press the (PAUSE) key to switch to PAUSE mode.
(2) Press the (NEXT) or (PREV.) key until the following menu is displayed.
ADVANCED FUNC.
(3) Press the (ENTER) key, and then press the (NEXT)or (PREV.) key
until the following menu is displayed.
PEN 1/2 ADJ.
(4) Press the (ENTER) key, and then wait for the Pen Compensation Pattern
Prompt.
PLOT ADJ PAT.
(5) Press the , , , and (POSITION) keys to move the pen to the pattern
drawing start position, and then press the (ENTER) key to start drawing the
pattern.
Compensation value X
Compensation
value Y
The cross drawn
by the pen
in Pen Holder 1.
The cross drawn by the pen
in Pen Holder 2 (the reference pattern)
Y
X
(6) After the crosses have been drawn, the display changes to the following.
X= Y=
Measure the difference between the crosses, and then input the corrective values.
Use the second cross as the reference, and input the values corresponding to the
difference with the first cross drawn. (In the drawing above, for example, the
difference is in the -X and +Y directions. In this case, input X = -**mm, and Y =
+**mm.
Use the or keys to move the cursor to the items to be changed, and the
or keys to select the select the values and then press the (ENTER)
key. To cancel the selection, press the (NEXT) or (PREV.) key.
(7) Press the (PAUSE) key to cancel PAUSE mode.
CHECKPOINT
The setting is retained in the internal memory even when the power is turned off.
BLADE WARE SETUP
CUT LINE PAT.
TANGENTIAL
INIT. B
PEN UP SPEED
INITIAL FEED
AUTO PRE FEED
SETUP MENU
TEST
FEED&CUT
PEN UP/DOWN
ADVANCED FUNC.
CLEAR BUFFER
To Next Page
