75
outputting the past or failed waveform so as to detect the change condition of the
signal.
Table 2-47 Page 1 of the pass/fail function menu:
Option Setup Description
Test allowed
Run
Stop
Run the pass/fail function.
Stop the pass/fail function.
Signal source
selection
CH1
CH2
Select the signal input channel.
Operation
■
Run pass/fail
Stop pass/fail
Display
information
Open waveform pass/fail time display
information.
Close waveform pass/fail time display
information.
Next Skip to page 2 to the pass/fail menu.

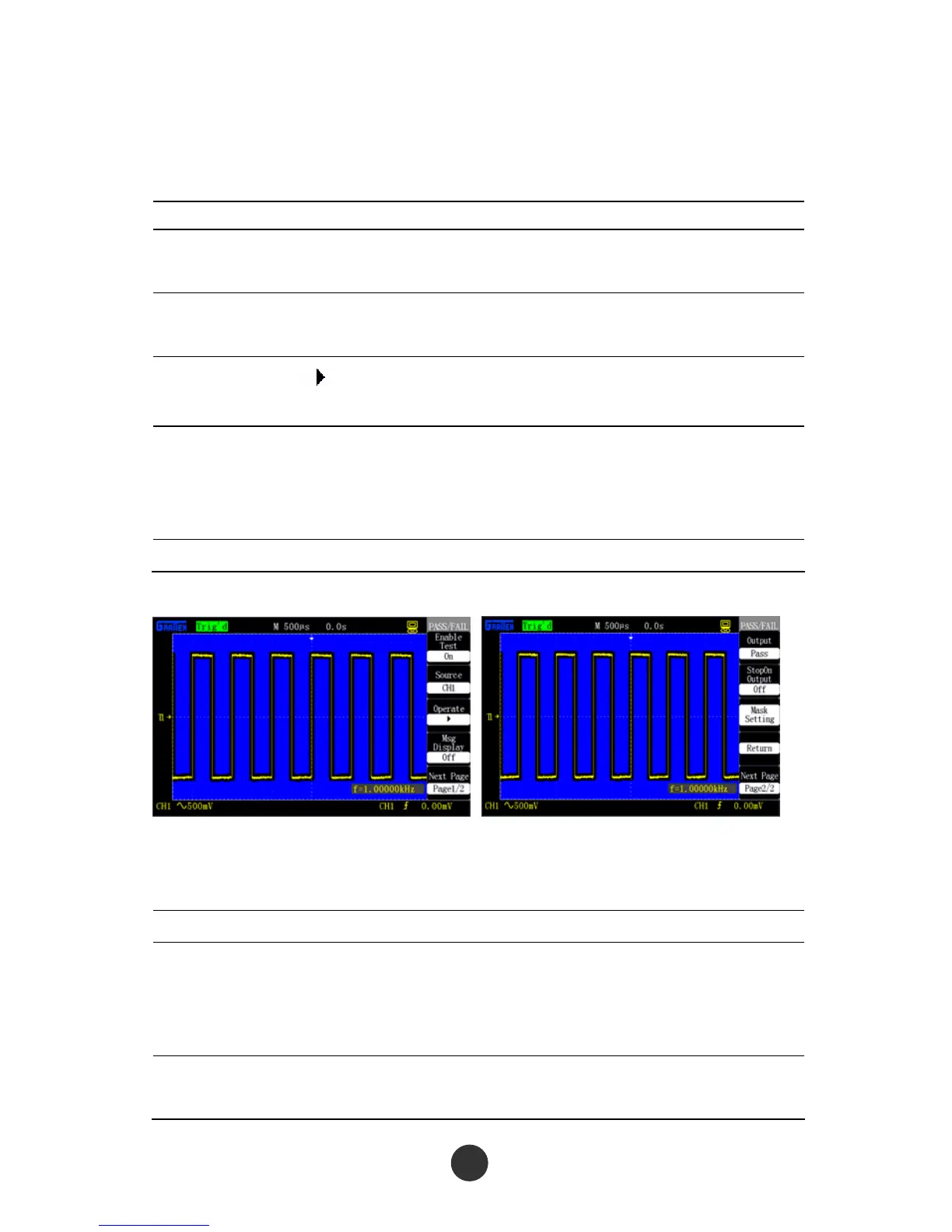

Figure 2-73 Page 1 of pass/fail menu Figure 2-74 Page 2 of pass/fail menu
Table 2-48 Page 2 of the pass/fail function menu:
Option Setup Description
Output
Pass
Fail
Output a negative pulse train when the test
is passed.
Output a negative pulse train when the test
is failed. .
Output stop
Run
Stop
Enter STOP state if output exist.
Continue to run if output exists.
