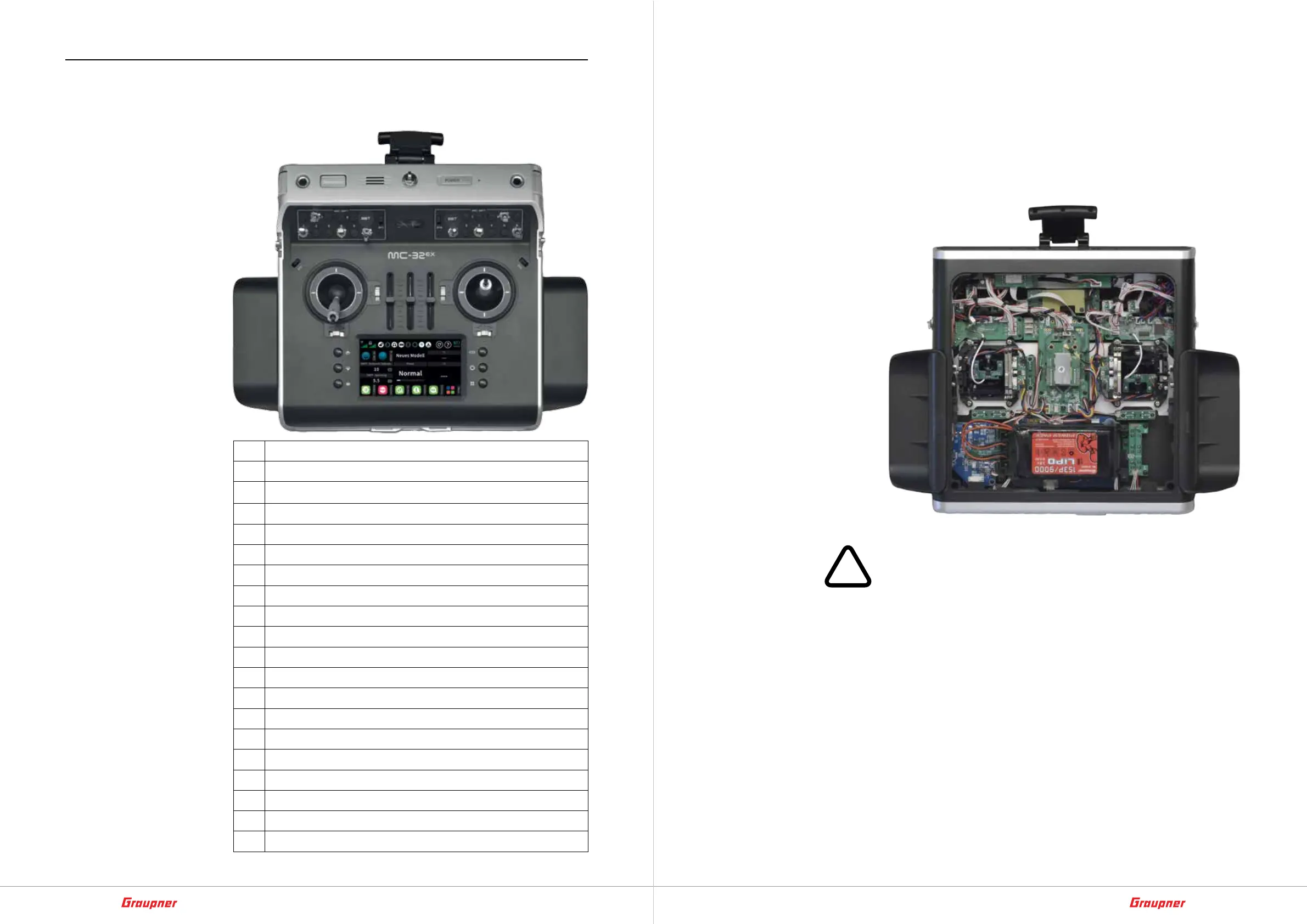

Transmitter description
Front side of the transmitter
1
2
3
4
5
6
6
7
8
9
10
10
11
11
12
12
13
15
13
14
14
16 18
19
6
6
17
20
1 Display
2 Directional buttons to scroll through menu pages
3 Direct access to the servo view
4 Direct access to „Setting & Data View“ / „Model List“
5 Back button / Menu button
6 Joystick trim button
7 left stick
8 middle slider board SL1 … SL3
9 right stick
10 Digital button DT5 + DT6
11 left and right switch board
12 left and right lever control LV1 + LV2
13 left and right rotary drum control TV1 + TV4
14 Telescopic rotary control TV2 + TV3
15 Rotary drum control UV1
16 Speaker
17 Eyelet for mobile phone holder or carrying strap
18 Power Switch
19 Antenna
20 Graupner Logo with integrated RF status LED
Back side of the transmitter
Open the transmitter
Before opening the transmitter, switch it off by sliding the power
switch to the right.
To open the transmitter, push both locks on the bottom of the
housing towards the front side of the transmitter as far as they go.
Then open the bottom of the case and unhook it.
CAUTION
• To open the transmitter, place it on your lap preferably with
the hand rests or on two stably high supports of suitable
material for the stick units together with their toggle
switches, neither to load excessive pressure nor to cause
damage.
• Before starting any work inside the transmitter, disconnect
the transmitter battery by unplugging the connecting cable
to avoid short-circuits!
• No modifications to the transmitter. Otherwise the war-
ranty and approval will be void!
• Never touch and contacts circuit boards with metal objects
or your fingers.
