Attention
If the left value field of the Binding group option is tapped in
bound model memory with the RF switched off, all binding
information of this model memory will be lost without further
notice.

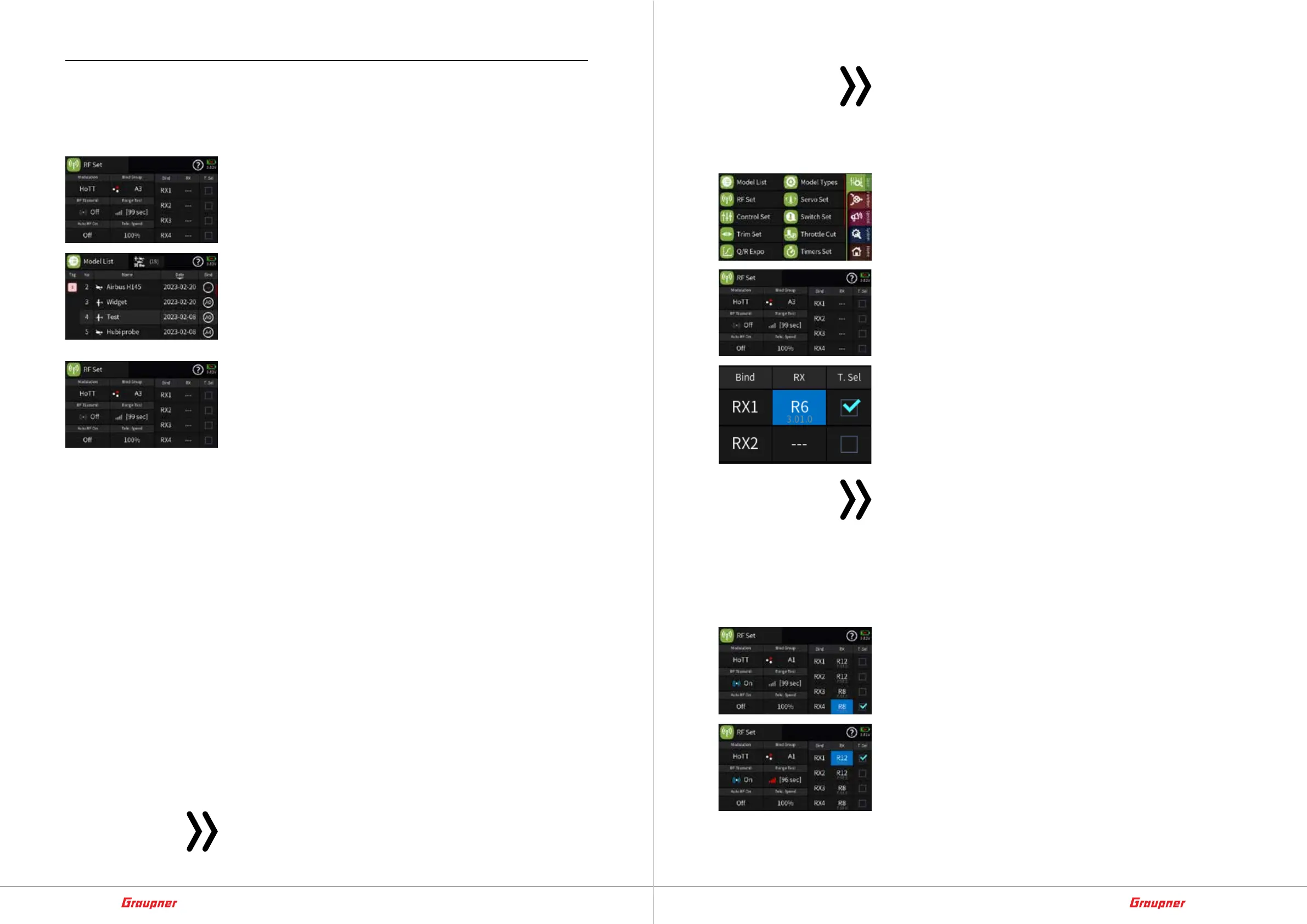

Basic procedure step by step
1. Keep transmitter and receiver at a proper distance from each
other.
2. Either switch on the Graupner mc-32ex HoTT transmitter
without RF or set the RF module to „OFF“ in the „Transmit RF“
field of the „RF Config.“ menu.
3. Switch on the power supply of the receiving system.
4. Put the receiver in Bind mode according to its instructions.
5. On the screen, touch the desired value field „RX1 ... RX4“ in the
„Bind“ column to trigger the binding process on the transmitter
side.
If the LED on the receiver signal correct connection according to
its description and the receiver abbreviation appear in the value
field of the relevant line „RX1 ... RX4“, the binding process has been
successfully completed. Otherwise, the positions of the devices
may have to be changed and the entire procedure is to be
repeated.
Note
As part of the binding process, the current firmware status of
compatible receivers is saved in the transmitter and is dis-
played in the blue field below the receiver ID. Therefore the
receiver must be rebound after each firmware update. Other-
wise the firmware version display will not be updated.
Bind multiple recipients
The Graupner mc-32ex HoTT transmitter supports the binding
of up to 4 Graupner receivers per model memory. Each of these
receivers must be linked respectively and the last linked receiver
is selected by ticking the appropriate box. “T. sel.” is defined as the
main recipient. See photo on the left. After all required receivers
have been bound, this tick can be moved back to the line of the
desired receiver by tapping on the corresponding value field,
because only the telemetry data of the main receiver is evaluated.
If necessary, all sensors should therefore also be connected to this
receiver. However, if several ticks are ticked, the telemetry can be
switched between the marked receivers via channel 16. For more
information, see the help text in the „RF Set“ menu.
As part of the maximum available number of channels, each of
these maximum 4 receivers bound per model memory, always
Bind Receiver
To be able to establish a connection to the transmitter, the
Graupner HoTT receivers have to be bound to at least one model
memory of “their” Graupner HoTT transmitter. This process is
usually referred to as “binding” and can be repeated at any time.
With the mc-32ex HoTT transmitter, this „binding“ of a receiver
always takes place as part of a so-called binding group whereby
the next free group is always suggested automatically when bind-
ing a model memory. As long as this suggestion is always adopted,
it is ensured that each model memory be in its own binding group.
As a rule, a model-specific binding takes place.
The respective group membership is visualized e.g. in the „Bind-
ing“ column on the right-hand side of the model list. See the
screenshot on the left. Alternatively, a model memory can also be
bound „universally“ or as part of a specific binding group.
Bind Group
In the case of an unbound model memory, the next free binding
group is preset as default after opening the menu. However, as
long as the model memory is unbound, this default can be
changed if required in the left value field of this option:
• „Global“, i.e. transmitter-specific, bound receivers react to the
signals of all globally bound model memories of „their“ trans-
mitter!
• „Group“-specific bound receivers only react to the signals of
the model memory belonging to their binding group.
– Without any action on the part of the user, a model mem-
ory is bound in the next free binding group.
‖ Model memories binded by this way only react to the
signals of the explicitly assigned model memory. Unin-
tended operation on model memory is NOT possible.
– If an occupied binding group is selected manually, for
example because a receiver with the same ID has to be
stored with the management as part of a competition, the
binding is carried out with the ID of the selected binding
group.
‖ Model memories linked by this way react to the signals
of each model memory in the same group identifier.
Unintended operation is excluded only from model
memory in global binding or deviating group member-
ship.
Note
The respective group affiliation is displayed u. o. in the column
“Bind” on the right-hand side of the “Model list” submenu.
To Next Page
