GRAVOGRAPH LS100 EX - Input;Output Characteristics

40
M_LS100IQ EX Energy_EN_C
Connections - Installation

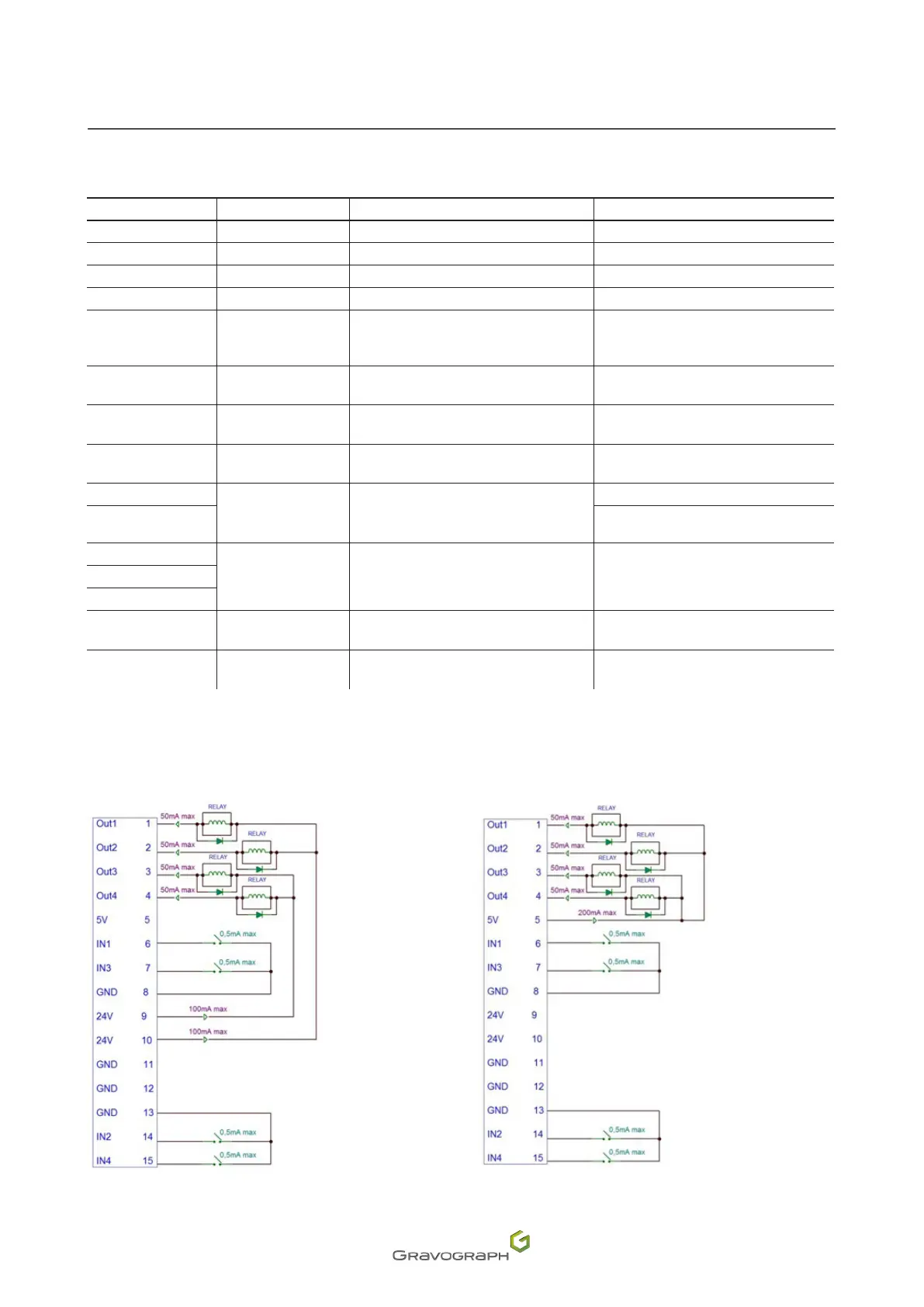

Input / Output characteristics (Sub-D15 connector)
Number Function Type: Comments
1 O1 Output NPN Maximum current: 50 mA
2 O2 Output NPN Maximum current: 50 mA
3 O3 Output NPN Maximum current: 50 mA
4 O4 Output NPN Maximum current: 50 mA
5 5 V Available for powering the loads
switched by the NPN outputs (O1 -
O4)
Maximum current: 200 mA
6 I1 dry contact
Input
TTL-compatible
7 I3 dry contact
Input
TTL-compatible
8 Gnd Grounding The grounds are shared by pins
8-11-12-13.
9
24 V
Available for powering the loads
switched by the NPN outputs (O1 -
O4)
Maximum current: 100 mA
10
Maximum current: 100 mA
11
Gnd Grounding
The grounds are shared by pins
8-11-12-13.
12
13
14 I2 dry contact
Input
TTL-compatible
15 I4 dry contact
Input
TTL-compatible
Note: The loads switched by the NPN outputs can be powered by 5 V / 24 V.
Wiring example - Wiring example -
24 V inductive load 5 V inductive load
