Grizzly G0452 User Manual

Model G0452/P/Z (Mfg. Since 08/12)
-15-
Hardware and Tools (Not shown) Qty
• Wrenches 8/10mm & 12/14mm ......... 1 each
• Hex Wrenches 2.5, 3, 4, 6, & 8mm ... 1 each
• Cap Screws M10-1.5 x 20 .......................... 3
• Cap Screws M10-1.5 x 25 .......................... 2
• Hex Bolts M10-1.5 x 55 .............................. 2
• Lock Washers 10mm .................................. 3
• Flat Washers 10mm ................................... 5
• Hex Nuts M10-1.5 ....................................... 2
• Hex Bolt M8-1.25 x 50 ................................ 1
• Cap Screws M8-1.25 x 60 .......................... 4
• Cap Screws M8-1.25 x 25 .......................... 4
• Cap Screws M8-1.25 x 20 .......................... 2
• Lock Washers 8mm.................................... 8
• Flat Washers 8mm ....................................11
• Phillip Head Screws M5-.8 x 15 ................. 4
• Flat Washers 5mm ..................................... 4

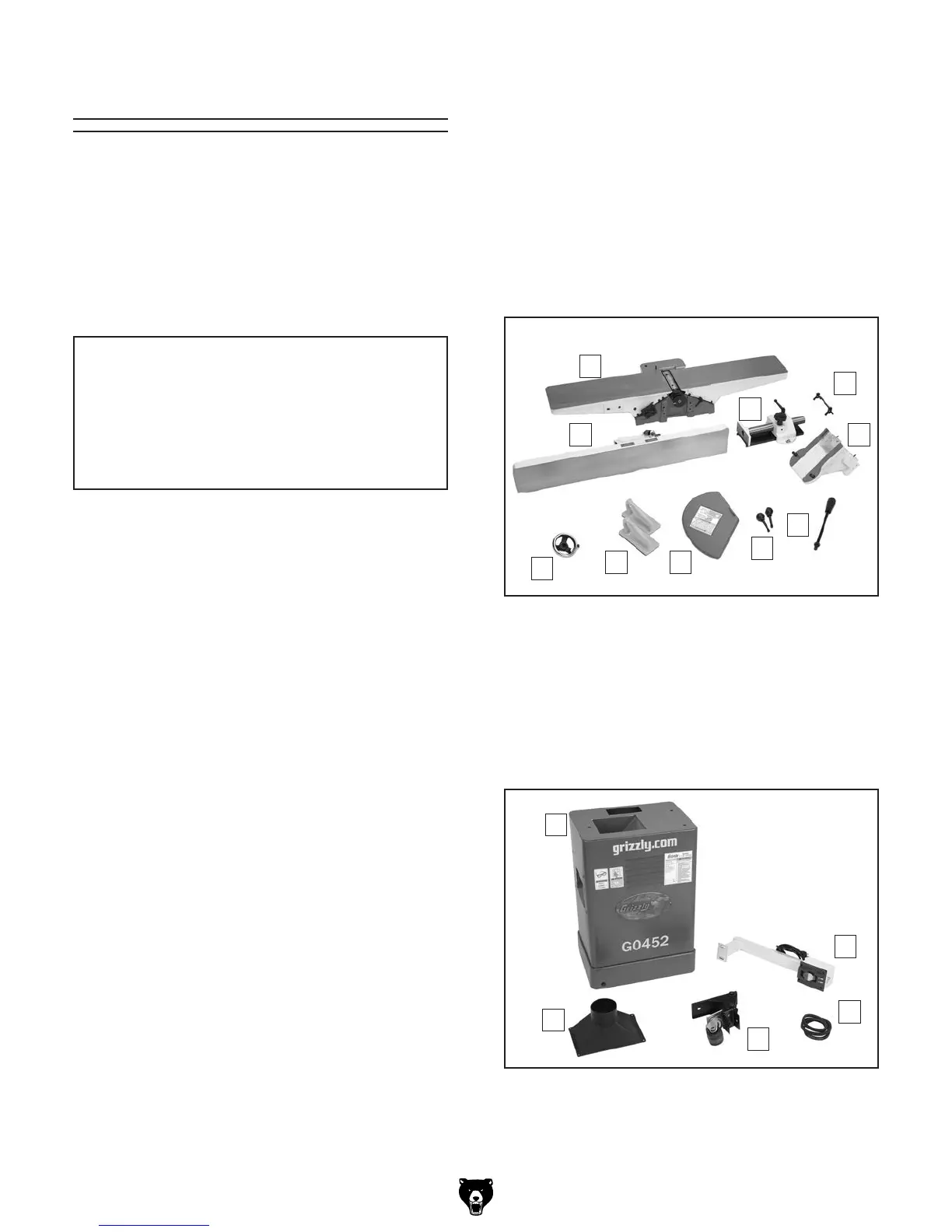

Figure 7. Box 2 inventory.
Box 2 (Figure 7):
K. Cabinet ....................................................... 1
L. Power Switch and Support Arm ................. 1
M. V-Belt .......................................................... 1
N. Locking Foot Pedal Assembly .................... 1
O. Dust Port ..................................................... 1
Figure 6. Box 1 inventory.
A
D
B
G
E
F
H
I
J
C
L
K
M
N
O
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
Box 1 (Figure 6): Qty
A. Table Assembly .......................................... 1
B. Fence Carriage Assembly .......................... 1
C. Cutterhead Jig ............................................ 1
D. Carriage Mounting Bracket ......................... 1
E. Infeed Table Lever ...................................... 1
F. Fence Tilt Handles ..................................... 2
G. Cutterhead Guard ....................................... 1
H. Push Blocks ................................................ 2
I. Outfeed Table Handwheel .......................... 1
J. Fence Assembly ......................................... 1
