-18-
Model G0452/P/Z (Mfg. Since 08/12)

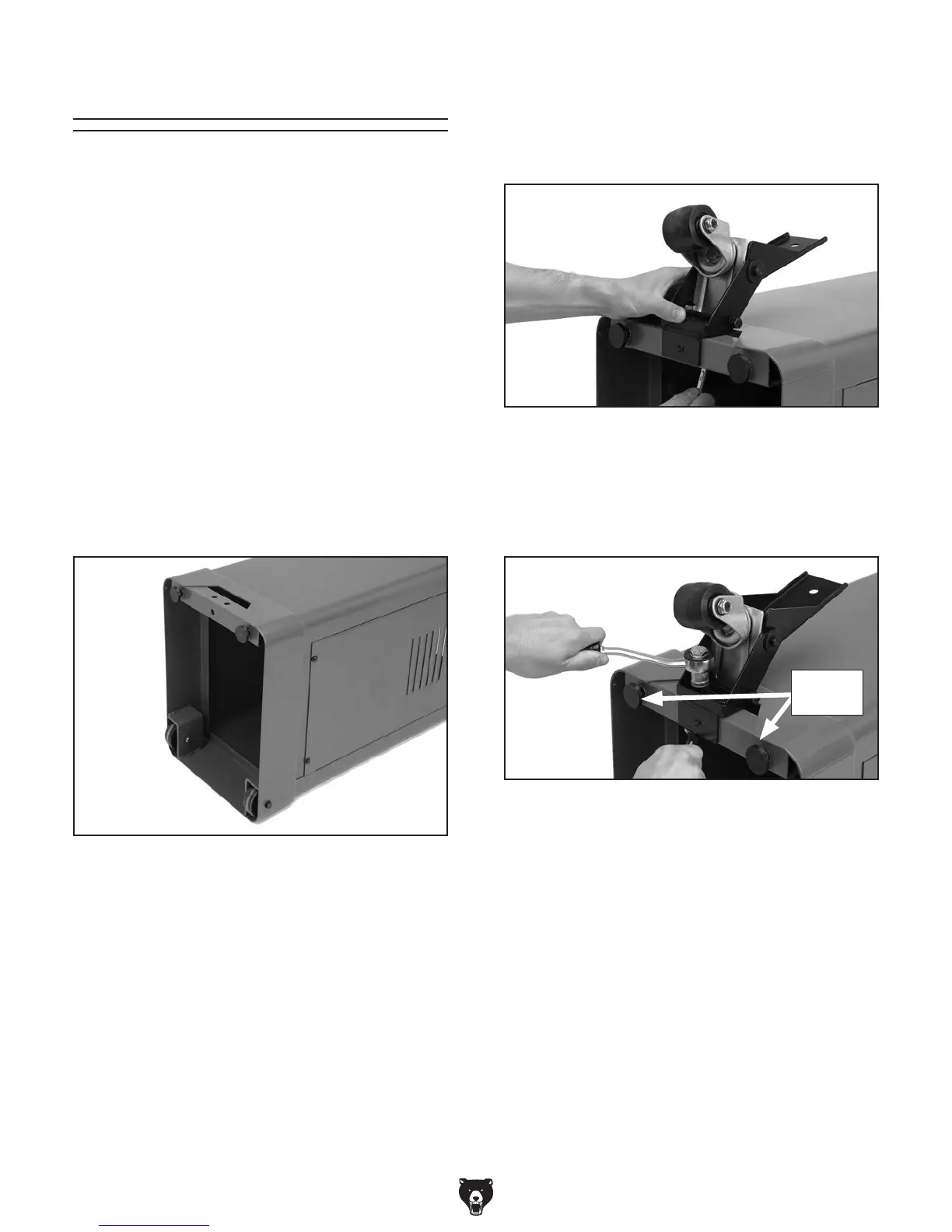

Figure 10. Cabinet.
Components and Hardware Needed: Qty
Cabinet .............................................................. 1
Locking Foot Pedal Assembly ........................... 1
Hex Bolts M10-1.5 x 55 ..................................... 2
Flat Washers 10mm .......................................... 2
Hex Nuts M10-1.5 .............................................. 2
Hex Bolt M8-1.25 x 50 ....................................... 1
Flat Washer 8mm .............................................. 1
Tools Needed: Qty
Wrench 17mm .................................................. 1
Socket Wrench 17mm ....................................... 1
Wrench 13mm ................................................... 1
Level .................................................................. 1
To install the locking foot pedal:
1. Lay the cabinet on its side as shown in
Figure 10.
4. Install the M10-1.5 x 55 hex bolts, flat wash-
ers, and hex nuts through the front of the
locking foot pedal assembly as shown in
Figure 12.
2. Place the locking foot pedal assembly onto
the cross brace.
5. Raise the cabinet upright.
6. Lock the foot pedal down.
7. Level the cabinet front-to-back and side-
to -side by adjusting the leveling feet (see
Figure 12).
Locking Foot Pedal
3. Use a 13mm wrench to install the M8-1.25
x 50mm hex bolt and washer as shown in
Figure 11.
Note: The hex bolt installs from inside.
Figure 11. Installing locking foot pedal.
Figure 12. Installing locking foot pedal.
Leveling
Feet
