Model G0452/P/Z (Mfg. Since 08/12)
-19 -
Components and Hardware Needed: Qty
Table Assembly ................................................. 1
Cabinet .............................................................. 1
Cap Screws M10-1.5 x 20 .................................. 3
Lock Washers 10mm ......................................... 3
Flat Washers 10mm .......................................... 3
Tools Needed: Qty
Hex Wrench 8mm ............................................. 1
Extra Person for Lifting Help ............................. 1
To mount the jointer to the stand:
1. Remove the access cover from the cabinet.
2. With the help of an assistant, lift the jointer
onto the cabinet.
3. Align the three bolt holes on the jointer with
the three holes on the cabinet (Figure 13).
4. Using the 8mm hex wrench, secure the jointer
to the cabinet with the M10-1.5 x 20 cap
screws, 10mm flat washers, and 10mm lock
washers.
Note: Reach through the dust vent for access
to the forward mounting hole as shown in
Figure 14.

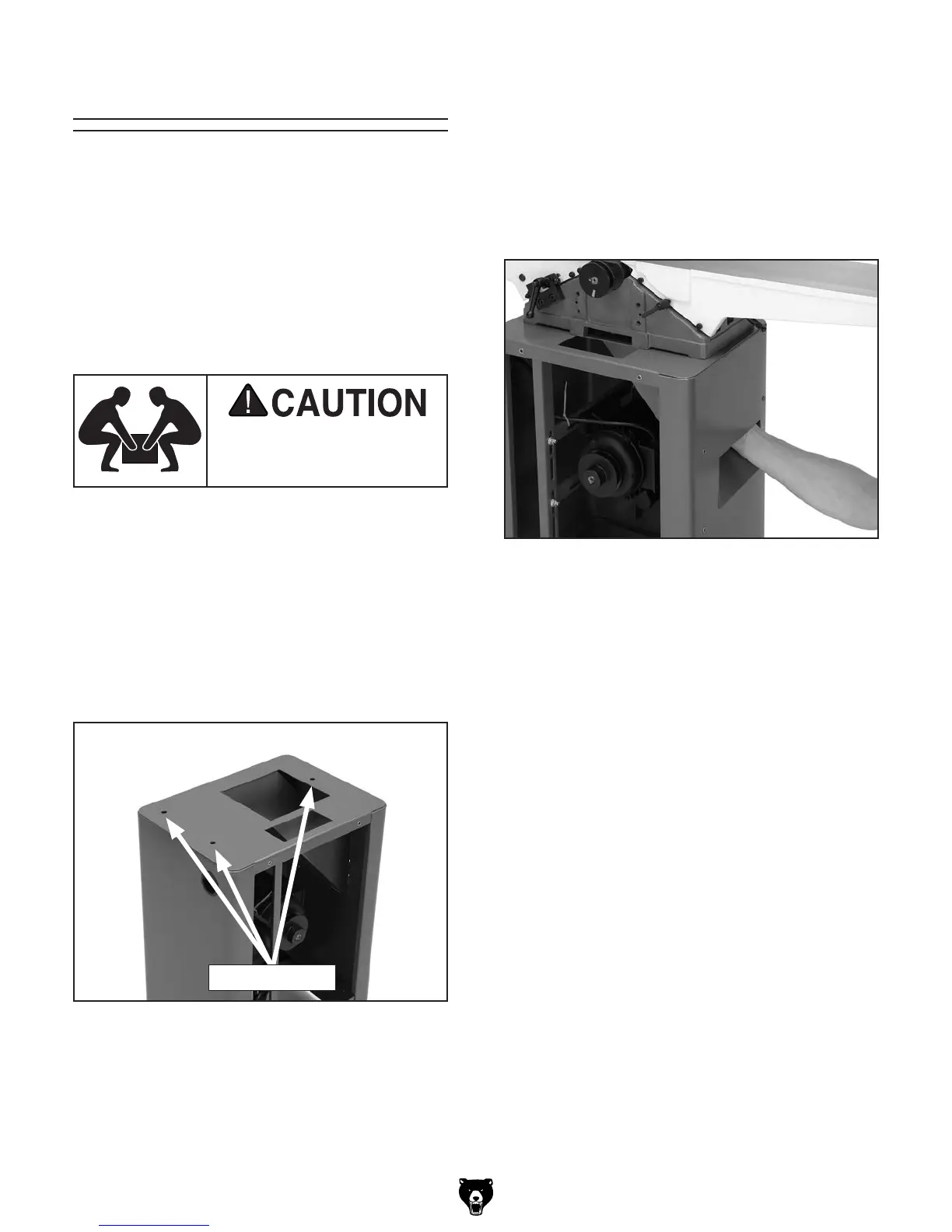

Figure 13. Mounting holes.
Mounting Holes
Figure 14. Installing forward mounting bolt.
Mounting Jointer
The jointer is heavy. Seek
assistance when lifting it
onto the jointer stand.
