Model G0452/P/Z (Mfg. Since 08/12)
-25-
Components and Hardware Needed: Qty
Power Switch & Support Arm ............................ 1
Cap Screws M8-1.25 x 25 ................................. 2
Flat Washers 8mm ............................................ 2
Tools Needed: Qty
Hex Wrench 6mm .............................................. 1
To install the power switch & support arm:
1. Install the support arm with the M8-1.25 x
25 cap screws and flat washers as shown in
Figure 26.

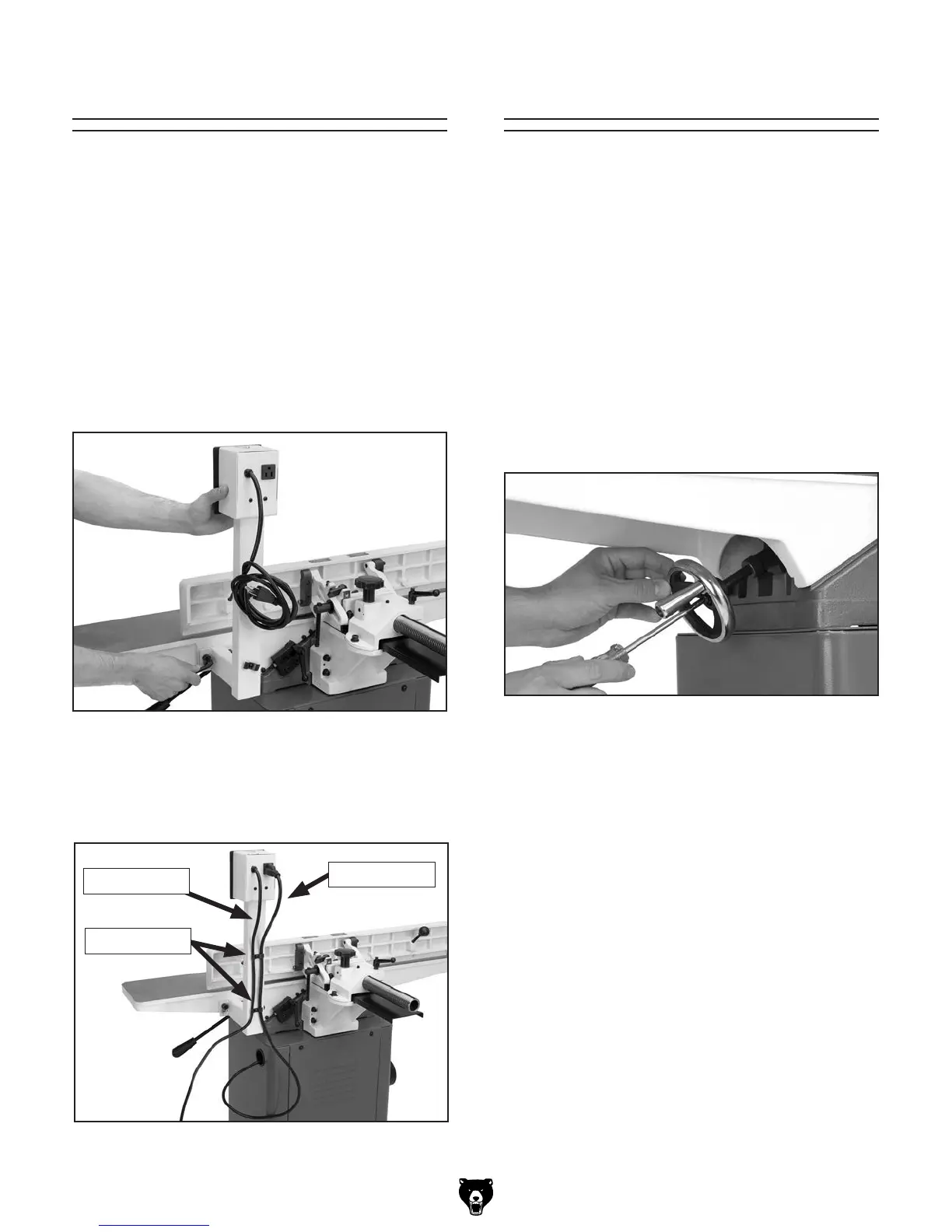

Figure 26. Installing support arm.
Figure 27. Cord locations.
2. Plug the motor cord into the back of the
switch box, then secure the loose cords with
the hold downs shown in Figure 27.
Motor Cord
Hold Downs
Power Cord
Power Switch
Components and Hardware Needed: Qty
Outfeed Table Handwheel ................................. 1
Phillips Head Screw M5-.8 x 15 ........................ 1
Flat Washer 5mm .............................................. 1
Tools Needed: Qty
Phillips Head Screwdriver .................................. 1
To install the handwheel:
1. Remove the screw and flat washer already
mounted to the handwheel shaft.
2. Secure the handwheel to the shaft with the
hardware removed in Step 1.
Figure 28. Securing the handwheel.
Handwheels
