Grizzly G0452 User Manual

-22-
Model G0452/P/Z (Mfg. Since 08/12)

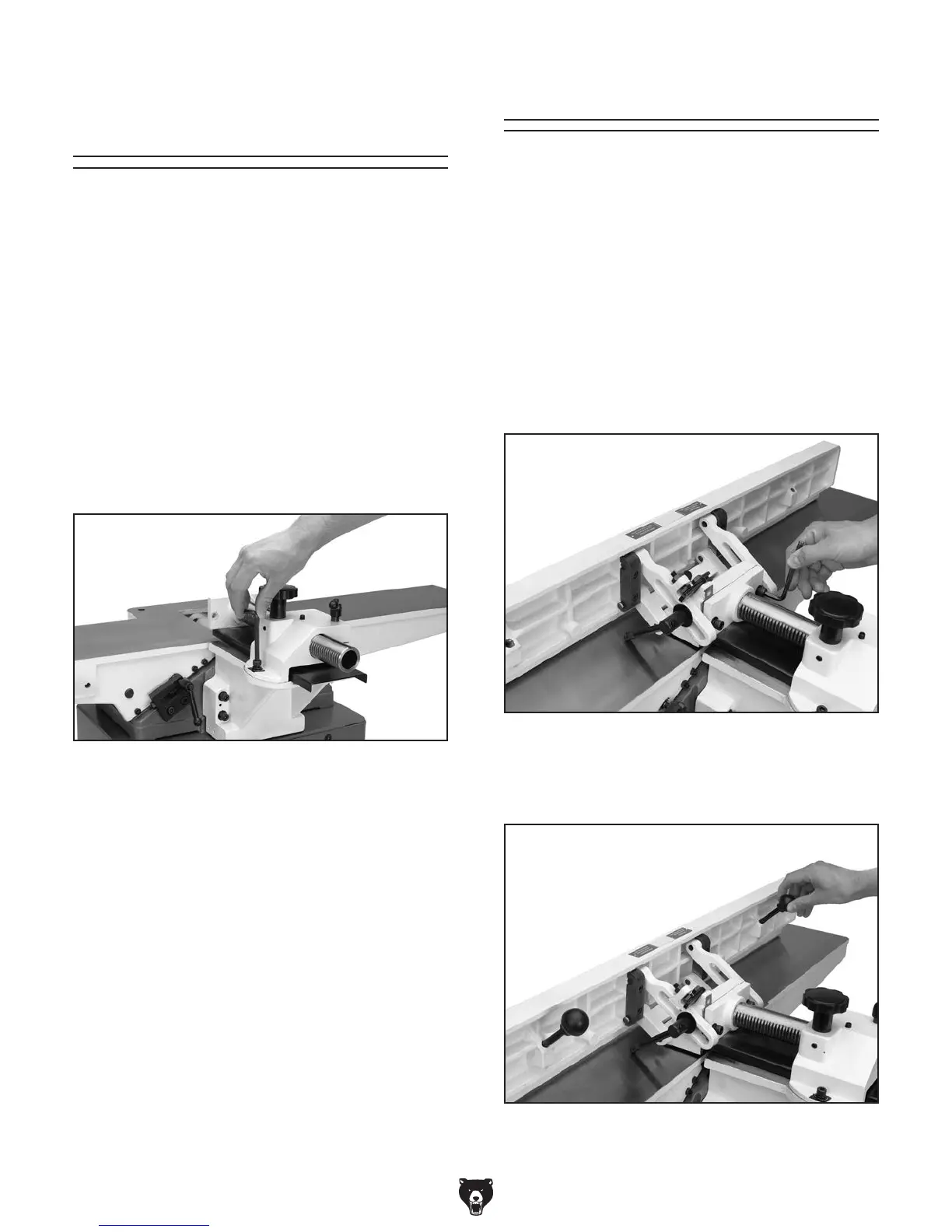

Figure 19. Fence carriage assembly.
Components and Hardware Needed: Qty
Fence Carriage Assembly ................................. 1
Cap Screws M8-1.25 x 20 ................................. 2
Lock Washers 8mm ........................................... 2
Flat Washers 8mm ............................................ 2
Tools Needed: Qty
Hex Wrench 6mm ............................................. 1
To install the fence carriage assembly:
1. Use the M8-1.25 x 20 cap screws, lock wash-
ers, and flat washers to secure the fence
carriage assembly to the carriage mounting
bracket (see Figure 19).
Fence Carriage
Assembly
Figure 20. Installing fence assembly.
To install the fence carriage assembly:
1. Use the M8-1.25 x 25 cap screws, lock wash-
ers, and flat washers to secure the fence
assembly to the fence carriage assembly (see
Figure 20).
2. Thread the fence tilting handles into the fence
(see Figure 21).
Figure 21. Installing fence tilting handles.
Components and Hardware Needed: Qty
Fence Assembly ................................................ 1
Cap Screws M8-1.25 x 25 ................................. 2
Lock Washers 8mm ........................................... 2
Flat Washers 8mm ............................................ 2
Fence Tilting Handles ........................................ 2
Fence Assembly
