Model G0452/P/Z (Mfg. Since 08/12)
-21-

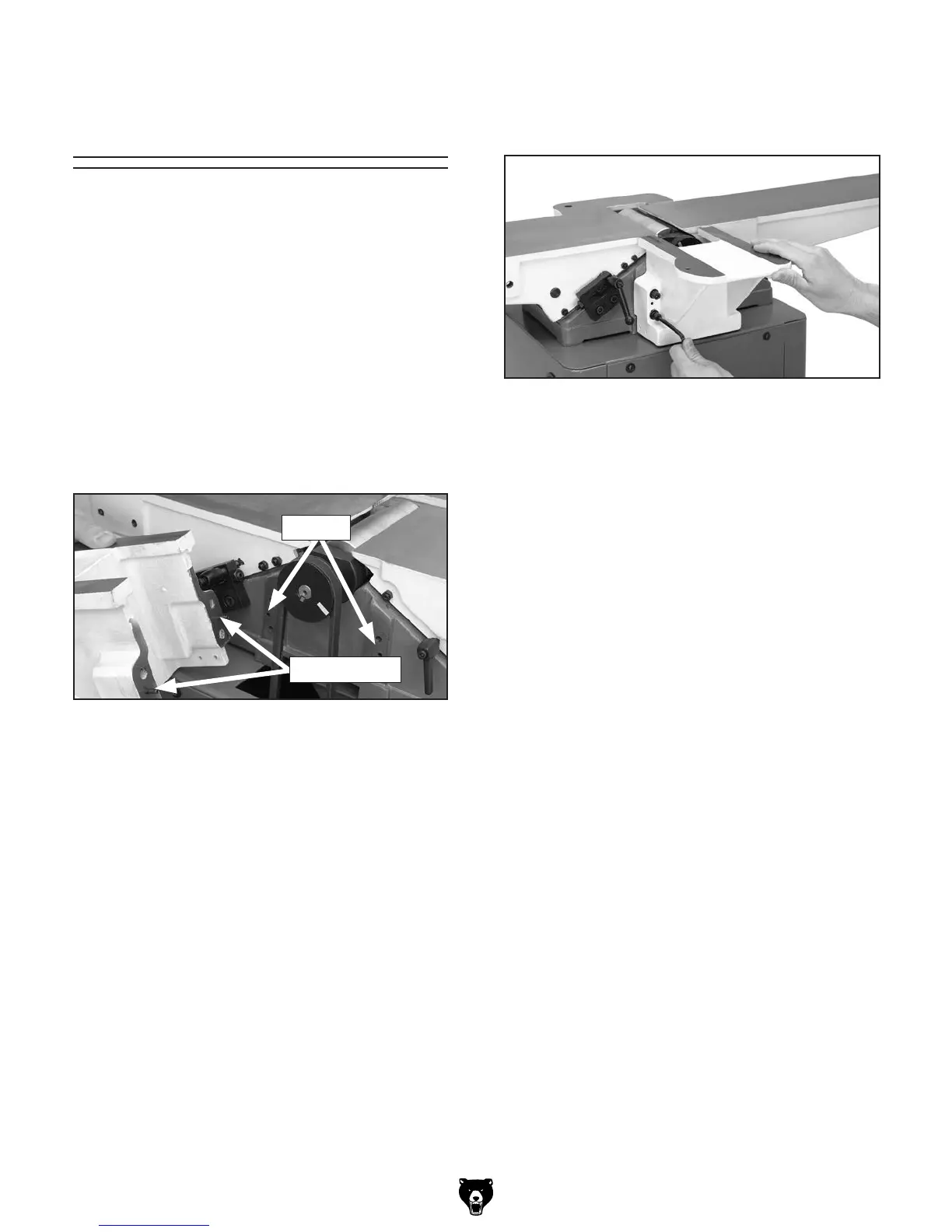

Figure 17. Locating pins.
Components and Hardware Needed: Qty
Carriage Mounting Bracket ................................ 1
Cap Screws M8-1.25 x 60 ................................. 4
Lock Washers 8mm ........................................... 4
Flat Washers 8mm ............................................ 4
Tools Needed: Qty
Hex Wrench 6mm ............................................. 1
To install the carriage mounting bracket:
1. Align the locating pins on the back of the car-
riage mounting bracket with the sockets on
the jointer table (see Figure 17).
Carriage Mounting
Bracket
Sockets
Locating Pins
2. Tighten the carriage mounting bracket to the
jointer table with the cap screws, lock wash-
ers, and flat washers (see Figure 18).
Figure 18. Assembled carriage mounting
bracket.
