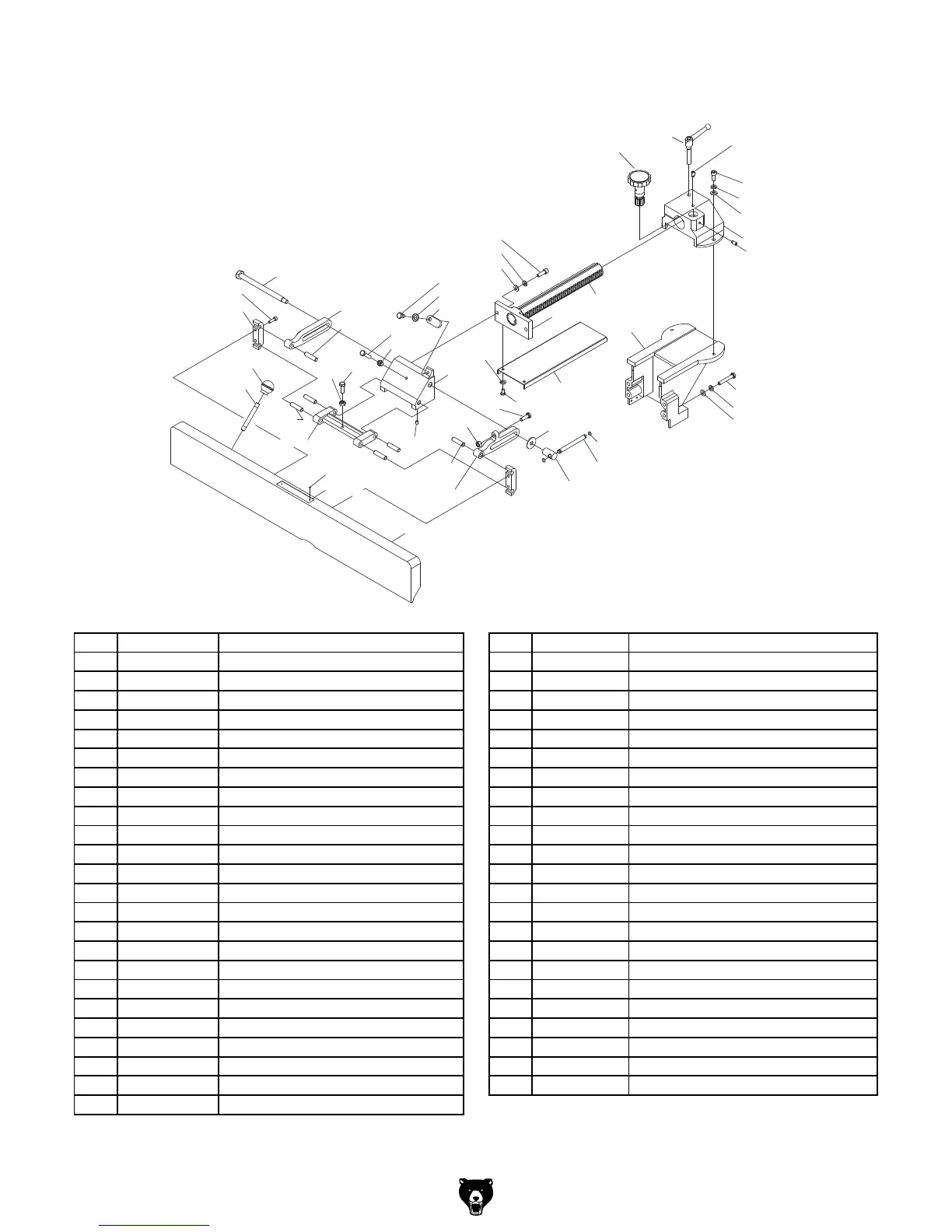

G0452 Fence
129
127
125
123
124
122
119
119-1
115
113
92
132
133
91
121
120
134
135
96
95
97
94
93
88
130
131
104
105
106
107
98
114
102
103
108
109 99
100
101
116
117
118
110
112
111
90
89
126
128
REF PART # DESCRIPTION REF PART # DESCRIPTION
88 P0452088 FENCE 113 P0452113 PHLP HD SCR M6-1 X 12
89 P0452089 LEVER ROD 114 P0452114 LOCK WASHER 6MM
90 P0452090 BALL KNOB 115 P0452115 FENCE CUTTERHEAD GUARD
91 P0452091 HANDLE HUB 116 P0452116 FLAT WASHER 8MM
92 P0452092 FLAT WASHER 4MM 117 P0452117 LOCK WASHER 8MM
93 P0452093 RIGHT BRACKET 118 P0452118 CAP SCREW M8-1.25 X 25
94 P0452094 DOWEL PIN 119 P0452119 FENCE RAM
95 P0452095 HEX NUT M8-1.25 119-1 P0452119-1 RAM PLATE
96 P0452096 HEX BOLT M8-1.25 X 25 120 P0452120 CAP SCREW M8-1.25 X 60
97 P0452097 SET SCREW M6-1 X 10 121 P0452121 FENCE SUPPORT BRACKET
98 P0452098 FENCE BRACKET 122 P0452122 SET SCREW M8-1.25 X 12
99 P0452099 ANGLE STOP 123 P0452123 RAM BRACKET
100 P0452100 FLAT WASHER 8MM 124 P0452124 FLAT WASHER 8MM
101 P0452101 SHOULDER BOLT M8-1.25 X 15 125 P0452125 LOCK WASHER 8MM
102 P0452102 HEX NUT M8-1.25 126 P0452126 CAP SCREW M8-1.25 X 20
103 P0452103 HEX BOLT M8-1.25 X 25 127 P0452127 SET SCREW M8-1.25 X 12
104 P0452104 FENCE SUPPORT 128 P0452128 KNOB BOLT
105 P0452105 DOWEL PIN 129 P0452129 LOCK LEVER
106 P0452106 HEX NUT M8-1.25 130 P0452130 FENCE WARNING LABEL
107 P0452107 HEX BOLT M8-1.25 X 25 131 P0452131 ALUMINUM RIVET
108 P0452108 DOWEL PIN 132 P0452132 O-RING 5.8 X 1.9 P6
109 P0452109 LEFT BRACKET 133 P0452133 LOCK LEVER BAR
110 P0452110 FENCE BRACKET BOLT 134 P0452134 LOCK WASHER 8MM
111 P0452111 REAR CLAMP 135 P0452135 FLAT WASHER 8MM
112 P0452112 CAP SCREW M6-1 X 20
