-30-
Model G0452/P/Z (Mfg. Since 08/12)
3. Use the depth of cut scale to set the infeed
table to the desired depth and lock the table
in position.
Note: The infeed table stops can be adjusted
to return the table height to the same height
every time by loosening the lock nuts and
adjusting the set screws.

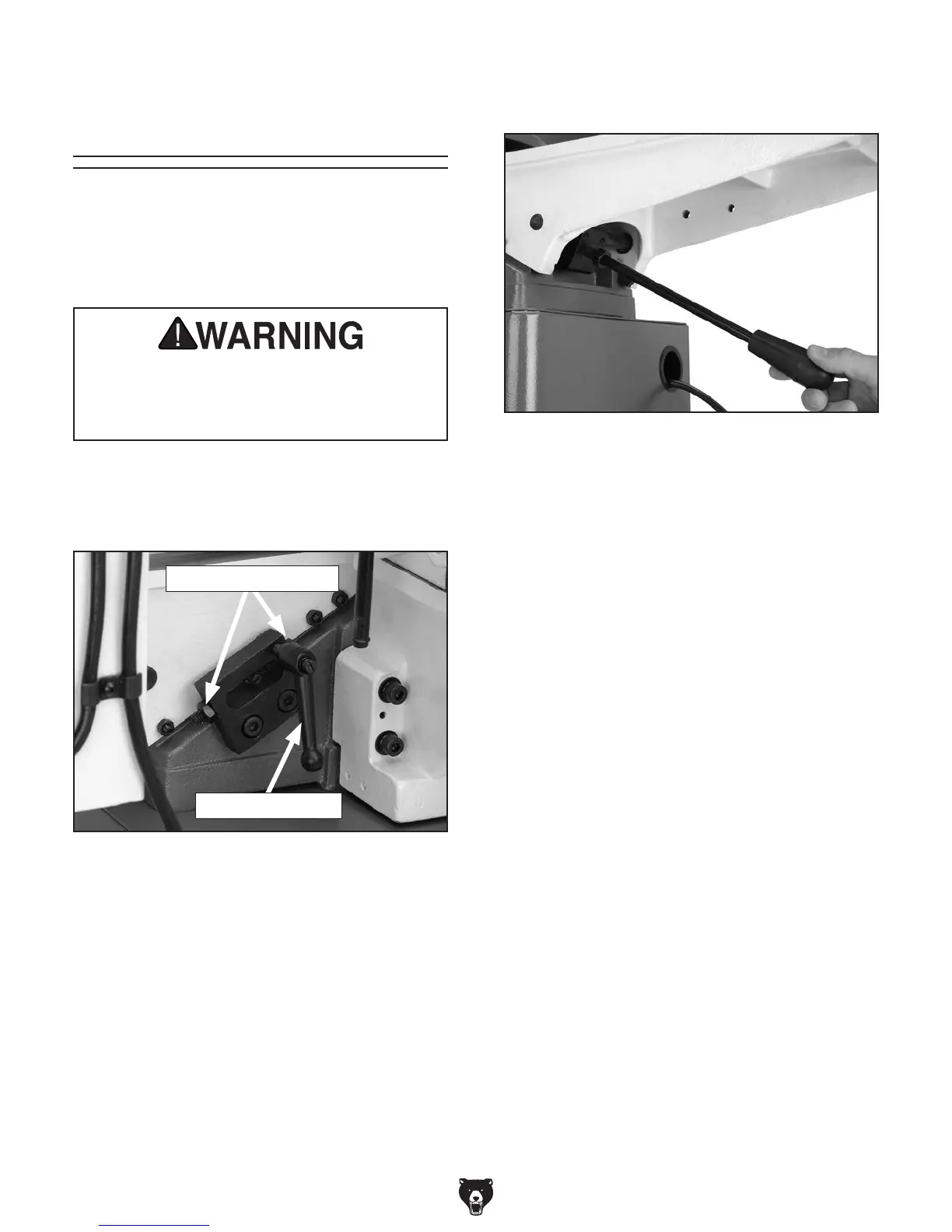

Figure 39. Adjusting infeed table height.
Proper infeed table adjustment must be made to
safely and efficiently use the jointer. DO NOT set
the infeed table depth greater than
1
⁄16" on your
first pass and never greater than
1
⁄8" when rab-
beting.
To adjust the infeed table:
1. Loosen the infeed table lock in Figure 38.
Infeed Table Lock
Table Stop Lock Nuts
Figure 38. Infeed table lock.
Infeed Table
Adjustment
2. Use the infeed table lever to raise or lower
the infeed table (Figure 39).
Serious personal injury could occur in the
event of a kickback. Kickback can occur
if excessive depth of cut is made. Limit a
single pass from
1
⁄16" to
1
⁄8".
