Grizzly G0623X User Manual

-14-
Model G0623X/G0623X3 (Mfg. Since 5/12)
G0623X3 Circuit Requirements 440V
This machine can be converted to operate on a
440V power supply
(refer to
Voltage Conversion
instructions) that has a verified ground and meets
the following requirements:
Circuit Type .................... 440V, 60 Hz, 3-Phase
Circuit Rating ...................................... 15 Amps
Connection Type ......... Permanent (Hardwire)
A permanently connected (hardwired) power sup-
ply is typically installed with wires running through
mounted and secured conduit. A disconnecting
means, such as a locking switch (see following
Figure
), must be provided to allow the machine
to be disconnected (isolated) from the power
supply when required. This installation must be
performed by an electrician in accordance with all
applicable electrical codes and ordinances.
The power cord and plug used on this machine
must have an equipment-grounding wire and
grounding prong. The plug must only be inserted
into a matching receptacle (outlet) that is prop-
erly installed and grounded in accordance with all
local codes and ordinances (see figure below).
The power cord and plug used on this machine
must have an equipment-grounding wire and
grounding prong. The plug must only be inserted
into a matching receptacle (outlet) that is prop-
erly installed and grounded in accordance with all
local codes and ordinances (see figure below).
No adapter should be used with the
required plug. If the plug does not fit the
available receptacle, or the machine must
be reconnected for use on a different type
of circuit, the reconnection must be made
by a qualified electrician and comply with all
local codes and ordinances.
G0623X Circuit Requirements
Circuit Type .................... 230V, 60 Hz, 1-Phase
Circuit Rating ...................................... 30 Amps
Plug/Receptacle .......................................L6-30
Cord ........“S”-Type, 3-Wire, 10 AWG, 300 VAC
This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

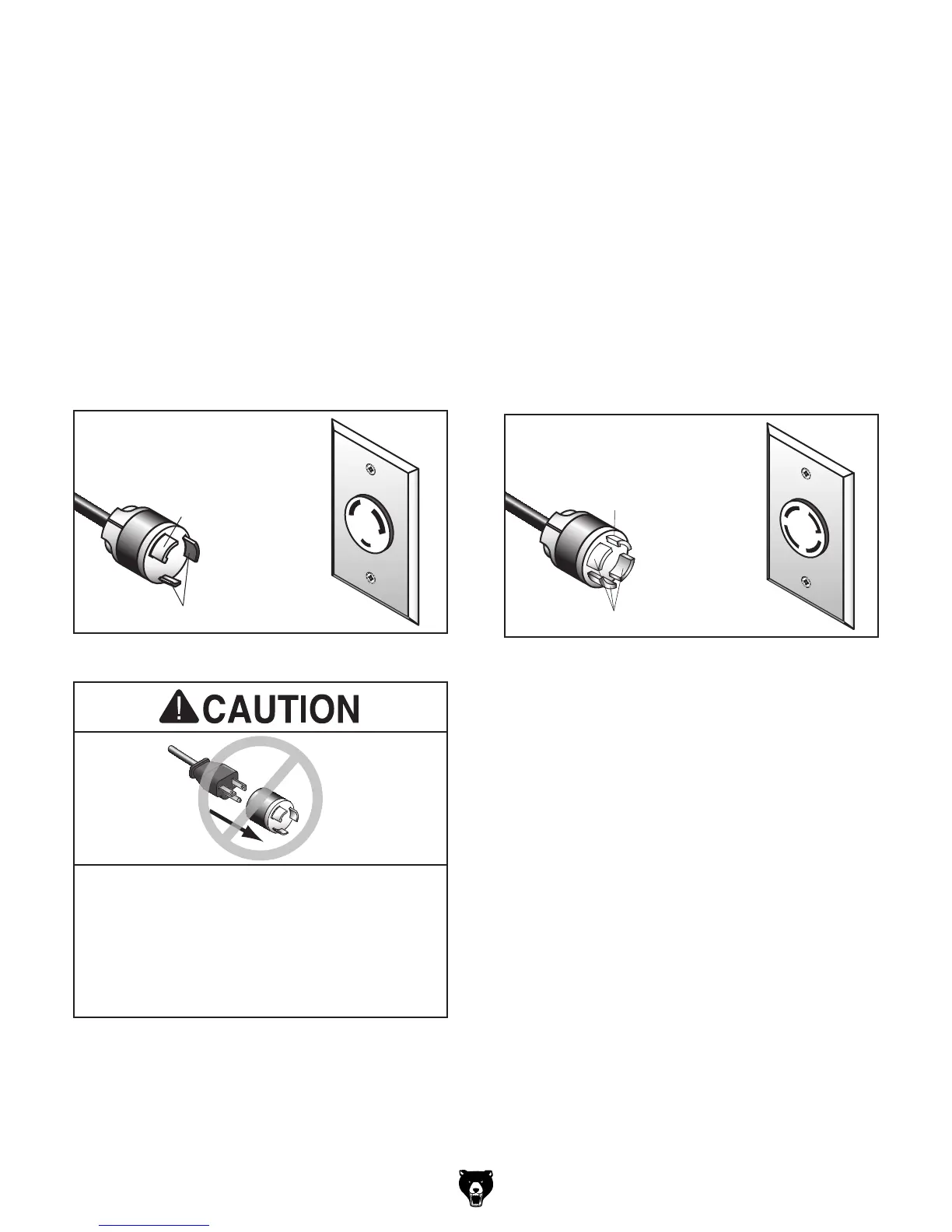

Figure 2. Typical L6-30 plug and receptacle.
Grounding Prong
is Hooked
Current Carrying Prongs
L6-30 GROUNDED
LOCKING
RECEPTACLE
L6-30
LOCKING
PLUG
G0623X3 Circuit Requirements 220V
Circuit Type .................... 220V, 60 Hz, 3-Phase
Circuit Rating ...................................... 30 Amps
Plug/Receptacle ..................................... L15 -30
Cord ........“S”-Type, 4-Wire, 10 AWG, 300 VAC
This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:
Figure 3. Typical L15-30 plug and receptacle.
Grounding Prong
is Hooked
Current Carrying Prongs
GROUNDED
L15-30 RECEPTACLE
L15-30
PLUG
