Grizzly G0623X User Manual

Model G0623X/G0623X3 (Mfg. Since 5/12)
-87-
933
934
906
932
927
931
904
929
926
905
925
924
923
922
919
918
917
916
935
915
914
913
912
921
920
911
907
903
902
901
930
908
909
910

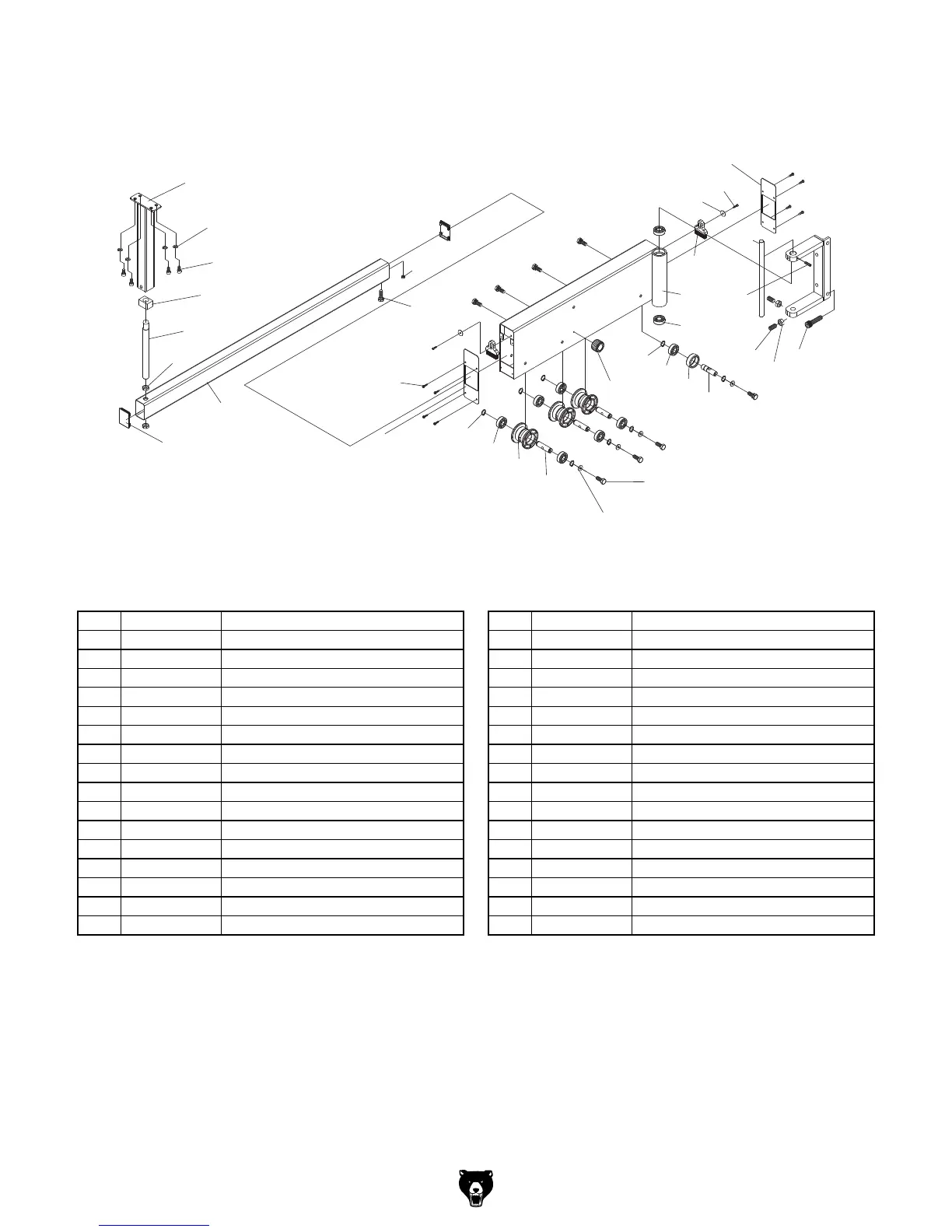

Swing Arm
REF PART # DESCRIPTION REF PART # DESCRIPTION
901 P0623X0901 FRAME 918 P0623X0918 RING
902 PLW03M LOCK WASHER 6MM 919 P0623X0919 ADJUST SHAFT
903 PCAP01M CAP SCREW M6-1 X 16 920 P0623X0920 SET SCREW
904 P0623X0904 ROTARY SHAFT 921 P6202ZZ BALL BEARING 6202 ZZ
905 PN28M HEX NUT M20-2.5 922 P0623X0922 SWING ARM
906 P0623X0906 PLUG 40 X 80MM 923 P0623X0923 BRUSH
907 P0623X0907 SLIDING TUBE 924 PW03M FLAT WASHER 6MM
908 PB26M HEX BOLT M8-1.25 X 30 925 PCAP02M CAP SCREW M6-1 X 20
909 PN03M HEX NUT M8-1.25 926 P0623X0926 SET SCREW M6 X 10
910 PHTEK15M TAP SCREW M4 X 10 927 P0623X0927 SET SCREW M10 X 1.5 X 25
911 P0623X0911 COVER 929 PB14M HEX BOLT M10-1.5 X 35
912 PR05M EXT RETAINING RING 15MM 930 P0623X0930 PLUG
913 P6202ZZ BALL BEARING 6202 ZZ 931 PN02M HEX NUT M10-1.5
914 P0623X0914 ROLLER 932 P0623X0932 COVER
915 P0623X0915 ADJUST SHAFT 933 PB09M HEX BOLT M8-1.25 X 20
916 PR05M EXT RETAINING RING 15MM 934 PW01M FLAT WASHER 8MM
917 P6202ZZ BALL BEARING 6202 ZZ 935 P0623X0935 MAGNET BASE ASSEMBLY
