-76-
Model G0623X/G0623X3 (Mfg. Since 5/12)
34
33
32
2
31
29
30
28
27
9
8
4
3
12
11
20
21
22
10
35
6
26
24
25
19
17
16
13
14
5
1
7
18
15
23

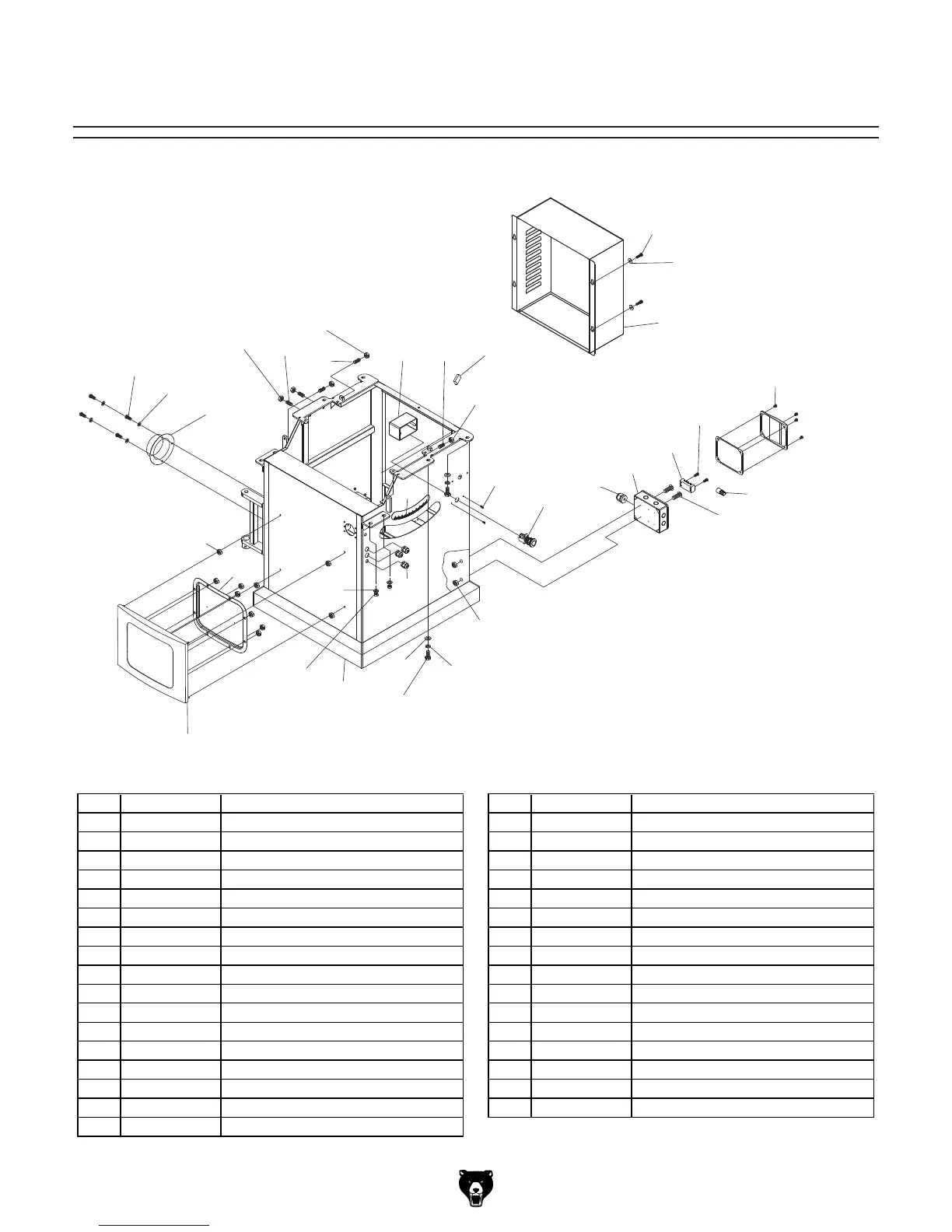

Cabinet
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P0623X0001 CABINET 19 PN03M HEX NUT M8-1.25
2 P0623X0002 COVER PLATE 20 P0623X0020 POWER BOX
3 P0623X0003 EMERGENCY STOP BUTTON 21 P0623X30021 TERMINAL BAR 4P (G0623X3)
4 PHTEK19M TAP SCREW M5 X 16 22 PS05M PHLP HD SCR M5-.8 X 8
5 P0623X0005 BLADE TILT SCALE 23 PBHS06M BUTTON HD CAP SCR M5-.8 X 12
6 PLW06M LOCK WASHER 10MM 24 PB01M HEX BOLT M10-1.5 X 30
7 PN02M HEX NUT M10-1.5 25 PWF10M FENDER WASHER 10MM
8 P0623X0008 SWITCH BOX 26 PLW06M LOCK WASHER 10MM
9 P0623X0009 STRAIN RELIEF PG-9 27 P0623X0027 DECORATIVE PLATE
10 PBHS05M BUTTON HD CAP SCR M6-1 X 20 28 P0623X0028 PLATE SUPPORT
11 PN01M HEX NUT M6-1 29 PSS74M SET SCREW M8-1.25 X 35
12 P0623X0012 STRAIN RELIEF M20 30 PN03M HEX NUT M8-1.25
13 PN02M HEX NUT M10-1.5 31 PN01M HEX NUT M6-1
14 PSS73M SET SCREW M10-1.5 X 30 32 PCAP11M CAP SCREW M8-1.25 X 16
15 P0623X0015 DUST PORT 4" 33 PW01M FLAT WASHER 8MM
16 PLW03M LOCK WASHER 6MM 34 P0623X0034 WIRE CONNECTOR
17 PS11M PHLP HD SCR M6-1 X 16 35 P0623X0035 WIRE NUT 12AWG X 2 (G0623X)
18 PSS21M SET SCREW M8-1.25 X 25
SECTION 10: PARTS
