Model G0623X/G0623X3 (Mfg. Since 5/12)
-3-

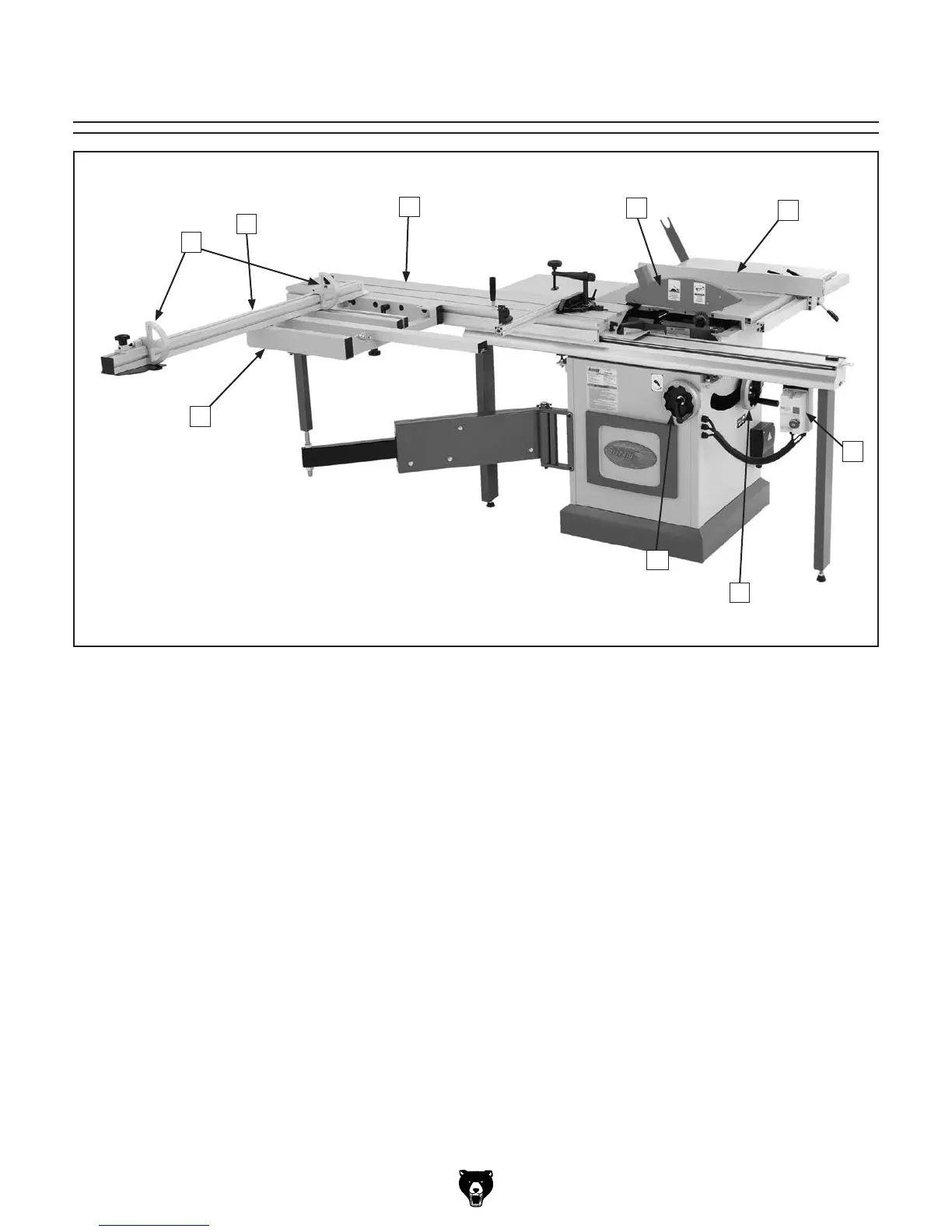

Figure 1. Main view of machine features and controls.
C
G
H
Identification
A. Crosscut Table—Provides a wide, stable
platform for supporting full-size panels during
crosscutting operations.
B. Flip Stops—Used for quick measurements
for crosscutting.
C. Crosscut Fence—Used during crosscutting
operations. Features a scale and multiple
flip-style stop blocks for precise, repeatable
crosscutting operations.
D. Sliding Table—Conveniently glides the
workpiece through the blade with effortless
precision and ease.
E. Blade Guard—Fully-adjustable blade guard
maintains maximum protection around the
saw blade and a 2½" dust port effectively
extracts dust from the cutting operation.
F. Rip Fence—Fully adjustable with micro-
adjustment knob for precision adjustments.
Fence face can be positioned for standard
cutting operations, or in the lower position for
blade guard clearance during narrow ripping
operations.
G. Switch—Features push-button controls start-
ing and stopping the table saw motor.
H. Blade Angle Handwheel—Adjusts the angle
of the saw blades.
I. Blade Elevation Handwheel—Located
on the right-hand side of the cabinet, this
handwheel adjusts the height of the main
saw blade.
A
D
E
B
F
I
