Grizzly G0623X User Manual

-84-
Model G0623X/G0623X3 (Mfg. Since 5/12)
608
624
634
638
640
629
619
639
603
641
602
643
601
612
613
614
615
616
617
618
620
621
622
623
632
631
630
611
628
642
627
626
636
637
633
607
606
605
604
603
641
609
610
625
601
602
643

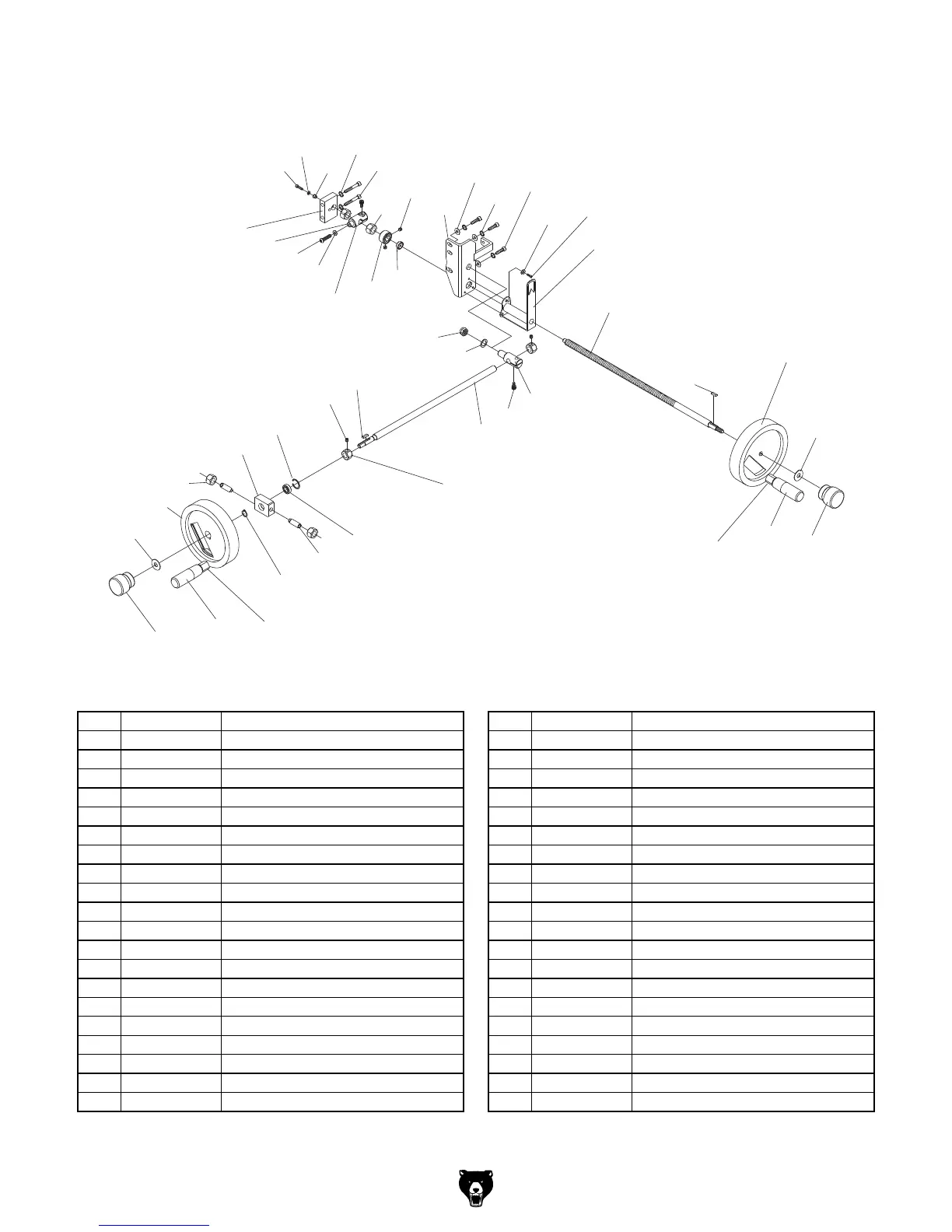

Handwheels
REF PART # DESCRIPTION REF PART # DESCRIPTION
601 P0623X0601 LOCK KNOB M10-1.5 622 P0623X0622 BEARING SELF LUBRICATING
602 P0623X0602 HANDWHEEL HANDLE 623 PW03M FLAT WASHER 6MM
603 P0623X0603 HANDWHEEL 624 PR03M EXT RETAINING RING 12MM
604 PK34M KEY 5 X 5 X 20 625 P0623X0625 LOCATE BLOCK
605 P0623X0605 ANGLE SEAT 626 P0623X0626 LOCATE BLOCK
606 PR20M INT RETAINING RING 28MM 627 PCAP04M CAP SCREW M6-1 X 10
607 PSS02M SET SCREW M6-1 X 6 628 PW03M FLAT WASHER 6MM
608 PCAP61M CAP SCREW M10-1.5 X 20 629 P0623X0629 SLEEVE
609 P0623X0609 SHAFT M16 X 2P X 2T 630 PLN07M LOCK NUT M16-2
610 P0623X0610 NUT 631 P0623X0631 FLAT WASHER 16MM COPPER
611 P0623X0611 LOCATE RING 632 PCAP26M CAP SCREW M6-1 X 12
612 P0623X0612 SCREW M16 X 2P X 2T 633 PN13M HEX NUT M16-2
613 P0623X0613 FINGER GUIDE 634 PN09M HEX NUT M12-1.75
614 PCAP04M CAP SCREW M6-1 X 10 636 PK34M KEY 5 X 5 X 20
615 PLW03M LOCK WASHER 6MM 637 P0623X0637 BEARING
616 PCAP14M CAP SCREW M8-1.25 X 20 638 P0623X0638 SET SCREW M12-1.75 X 35
617 PLW04M LOCK WASHER 8MM 639 PSS02M SET SCREW M6-1 X 6
618 PW01M FLAT WASHER 8MM 640 PN13M HEX NUT M16-2
619 P0623X0619 STRUT BOARD 641 P0623X0641 DISC WASHER 10 X 20
620 PCAP05M CAP SCREW M8-1.25 X 50 642 P0623X0642 BUSHING
621 PLW04M LOCK WASHER 8MM 643 P0623X0643 HANDLE EXTENSION
