Grizzly G0623X User Manual

Model G0623X/G0623X3 (Mfg. Since 5/12)
-89-
1126
1124
1125
1108
1122
1122
1118
1101
1121
1120
1119
1101
1117
1116
1115
1114
1113
1112
1123
1109
1110
1111
1107
1106
1102
1103
1104
1105

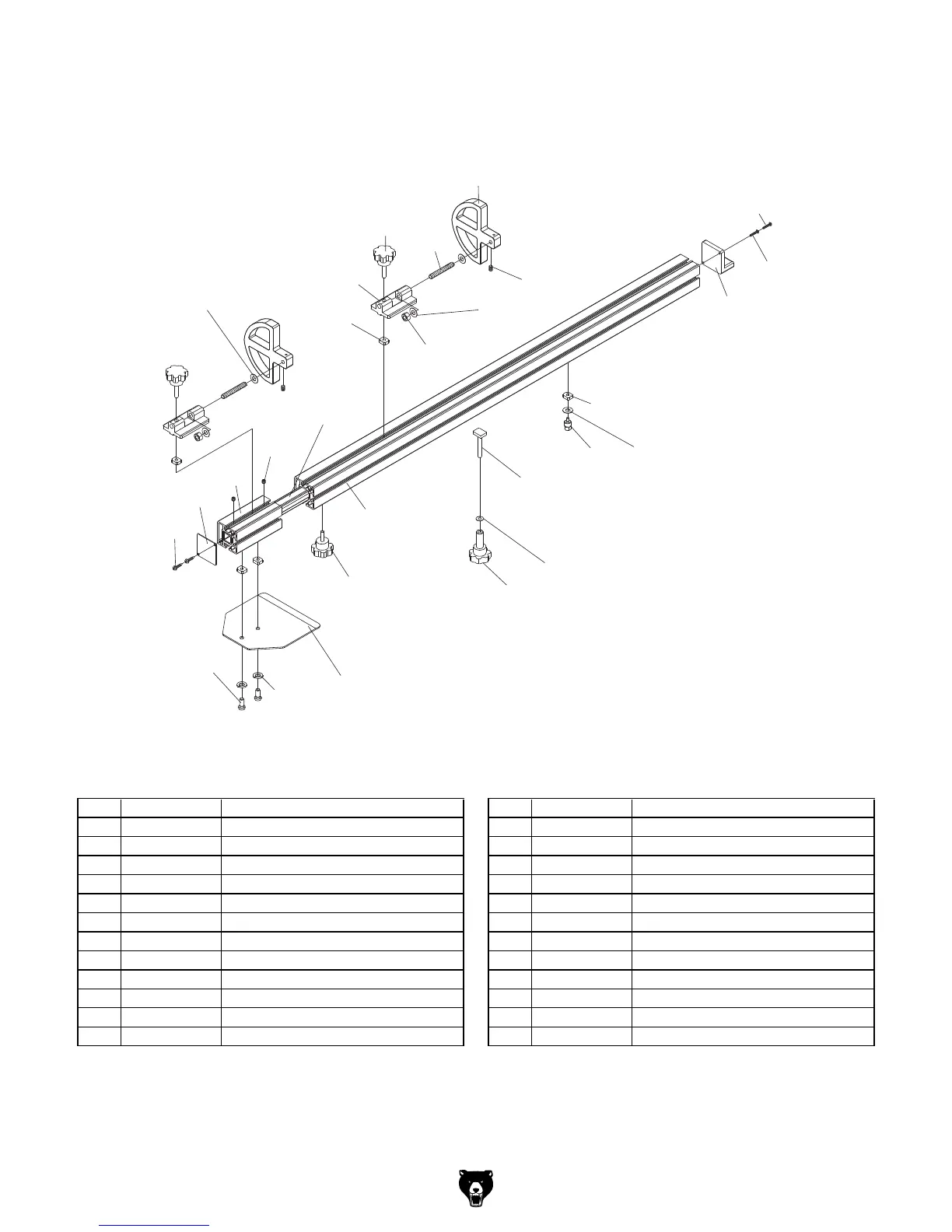

Crosscut Fence
REF PART # DESCRIPTION REF PART # DESCRIPTION
1101 P0623X1101 T-NUT M8-1.25 1114 P0623X1114 LOCATE PLATE
1102 P0623X1102 STOP BRACKET 1115 P0623X1115 KNOB SCREW M8-1.25 X 25
1103 P0623X1103 KNOB M8-1.25 X 40 1116 P0623X1116 SQUARE FENCE
1104 P0623X1104 SCREW 1117 P0623X1117 ROTATE SHAFT
1105 P0623X1105 FLIP STOP 1118 PW01M FLAT WASHER 8MM
1106 PSS01M SET SCREW M6-1 X 10 1119 P0623X1119 ROTATE BLOCK
1107 PLN05M LOCK NUT M10-1.5 1120 PS38M PHLP HD SCR M4-.7 X 10
1108 P0623X1108 SQUARE TUBE 1121 PS25M PHLP HD SCR M4-.7 X 35
1109 P0623X1109 EXT FENCE 1122 P0623X1122 FLAT WASHER 10MM BRASS
1110 P0623X1110 COVER 1123 PSS02M SET SCREW M6-1 X 6
1111 PHTEK15M TAP SCREW M4 X 10 1124 P0623X1124 KNOB SCREW M8-1.25 X 55
1112 PBHS03M BUTTON HD CAP SCR M8-1.25 X 16 1125 PWF08M FENDER WASHER 8MM
1113 PLW04M LOCK WASHER 8MM 1126 P0623X1126 T-BOLT M8-1.25 X 60
