Figure 81. Crosscutting workpieces
using the rip fence as a cut-off gauge.
Additionally, this machine has the capability of
crosscutting workpieces while using the rip fence
as a cut-off gauge (Figure 81).
Determine which cutting operation will be best
suited for the workpiece to be crosscut.
— If you will be crosscutting full size panels,
then skip ahead to Crosscutting Full Size
Panels.
— If you will be crosscutting smaller panels,
then skip ahead to Crosscutting Smaller
Panels.
— If you will be crosscutting workpieces using
the rip fence as a cut-off gauge, then skip
ahead to Crosscutting Using Rip Fence
as a Cut-Off Gauge.
The Model G0623X/G0623X3 can crosscut full
size panels with the fence in the forward or rear
position, although it is easier to load full size pan-
els with the crosscut fence mounted in the forward
position (see Figure 79).
Mounting the crosscut fence in the rear position
(Figure 80) gives greater stability for crosscutting
smaller panels.
Crosscutting

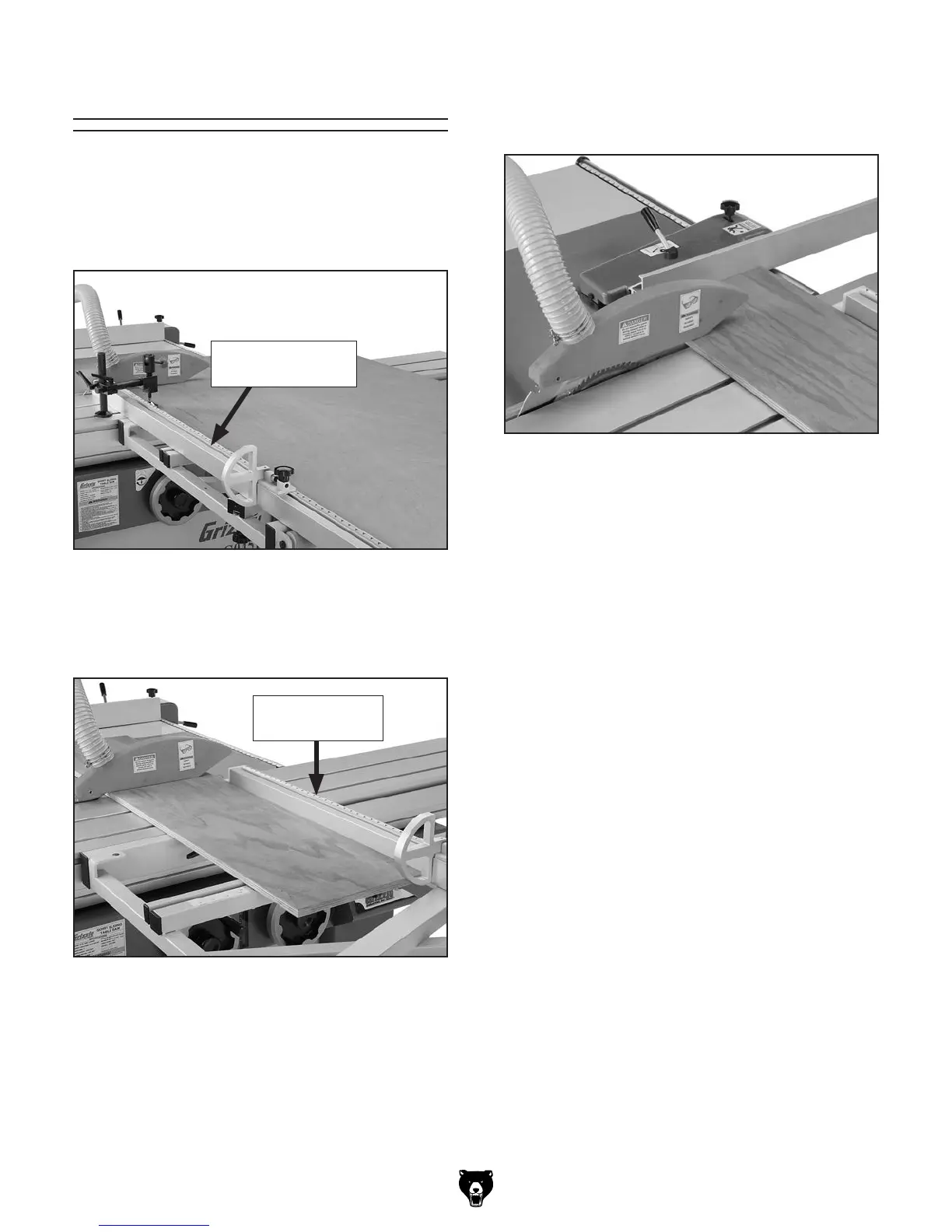

Figure 79. Crosscutting full size panel.
Forward Mounted
Crosscut Fence
Figure 80. Crosscutting smaller panels.
Rear Mounted
Crosscut Fence
