Grizzly G0623X User Manual

-74-
Model G0623X/G0623X3 (Mfg. Since 5/12)
READ ELECTRICAL SAFETY
ON PAGE 72!
A
AMP
RESET
96
98
T1/2 T3/6
NO14
T2/4
L1/1 L3/5
NO13
L2/3
95
18
22
26
SET @ 20
NC15
SDE
NC16
Ground
1/2 3/4 5/6
OL RELAY RA-30
1 2 3 4
EMERGENCY
STOP SWITCH
MAGNETIC SWITCH
ASSEMBLY
L15-30 PLUG
(AS RECOMMENDED)
BLADE GUARD
LIMIT SWITCH
1
2
SDE MA-18
220V
220 VAC
3-Phase
POWER
CONNECTION
BOX
MOTOR @ 220V
1 2 3
1
12
2
10
3
11
4
5
6
7
8
9
Ground
Hot
Hot
Hot
A2

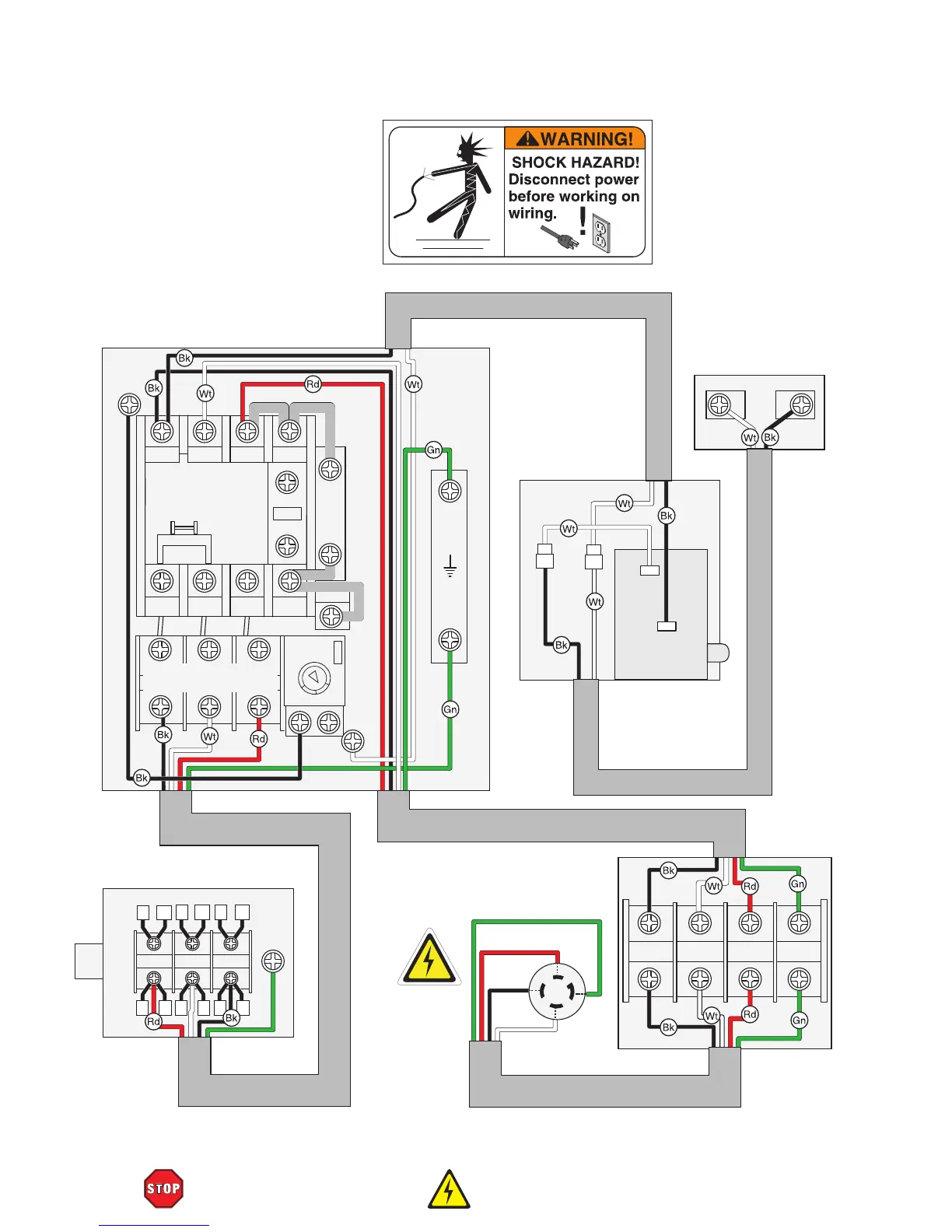

G0623X3 7.5 HP 220V Wiring Diagram
