Grizzly G0623X User Manual

-86-
Model G0623X/G0623X3 (Mfg. Since 5/12)
826
811
813
825
812
815
801
818
819
817
805
804
806
820
821
816
807
808
814
803
802
823
822
824
810
809

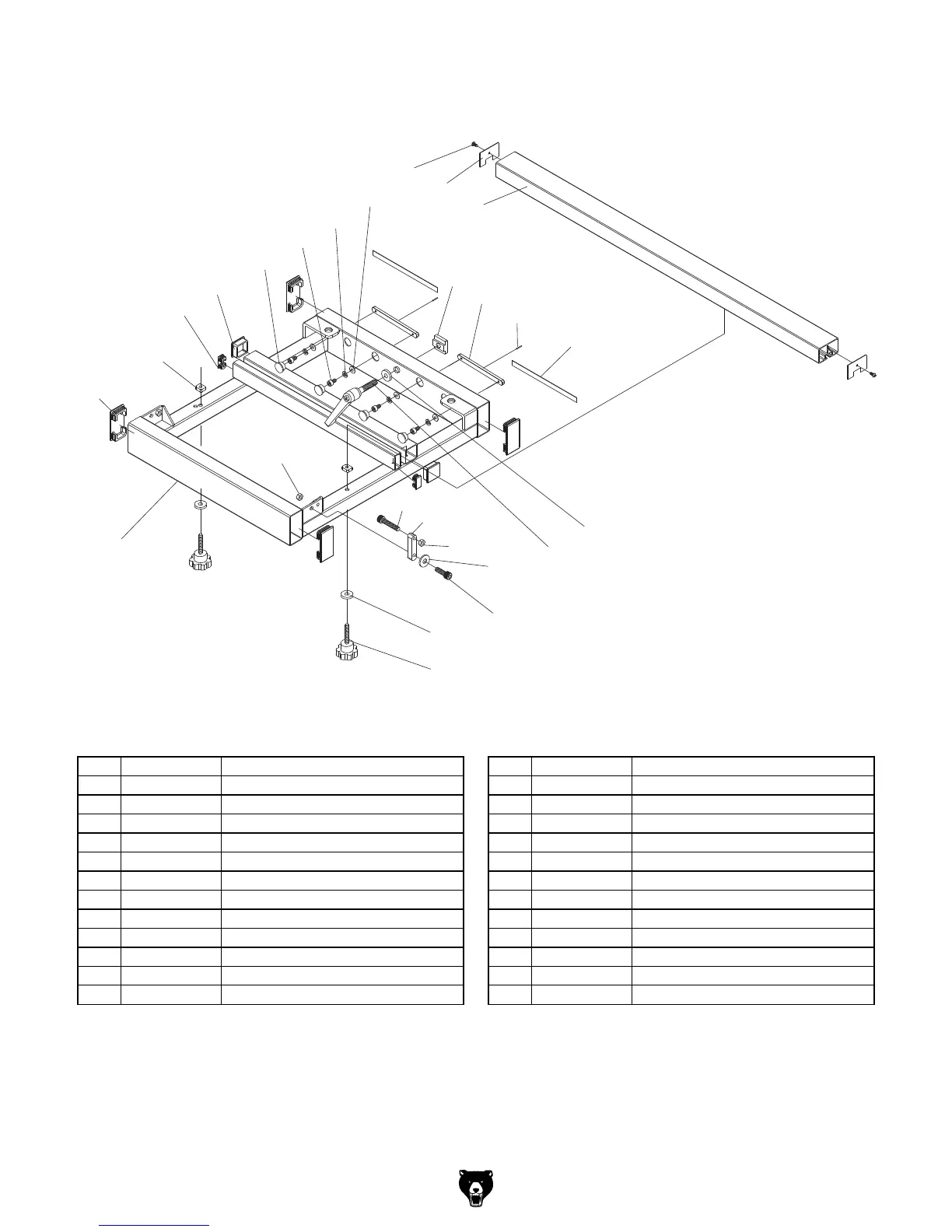

Crosscut Table
REF PART # DESCRIPTION REF PART # DESCRIPTION
801 P0623X0801 SUPPORT FRAME 814 PW03M FLAT WASHER 6MM
802 P0623X0802 PLUG 38 X 38MM 815 P0623X0815 PLUG 80 X 40MM
803 P0623X0803 PLUG 40 X 20MM 816 P0623X0816 PLUG
804 P0623X0804 T-NUT M12-1.75 817 P0623X0817 PIN 3 X 14
805 P0623X0805 T-SLOT BAR 818 P0623X0818 KNOB SCREW M8-1.25 X 50
806 P0623X0806 PAD 819 PWF08M FENDER WASHER 8MM
807 PCAP115M BUTTON HD CAP SCR M6-1 X 16 820 P0623X0820 SQUARE BRACE
808 PLW03M LOCK WASHER 6MM 821 P0623X0821 COVER
809 PWF12M FENDER WASHER 12MM 822 PHTEK7 TAP SCREW #8 X 3/8
810 P0623X0810 ADJUST HANDLE M12-1.75 X 55 823 P0623X0823 T-NUT M8-1.25
811 P0623X0811 T-NUT 824 PCAP13M CAP SCREW M8-1.25 X 30
812 PN03M HEX NUT M8-1.25 825 PWF08M FENDER WASHER 8MM
813 PB15M HEX BOLT M8-1.25 X 40 826 PLN04M LOCK NUT M8-1.25
