Grizzly G0623X User Manual

Model G0623X/G0623X3 (Mfg. Since 5/12)
-73-
READ ELECTRICAL SAFETY
ON PAGE 72!

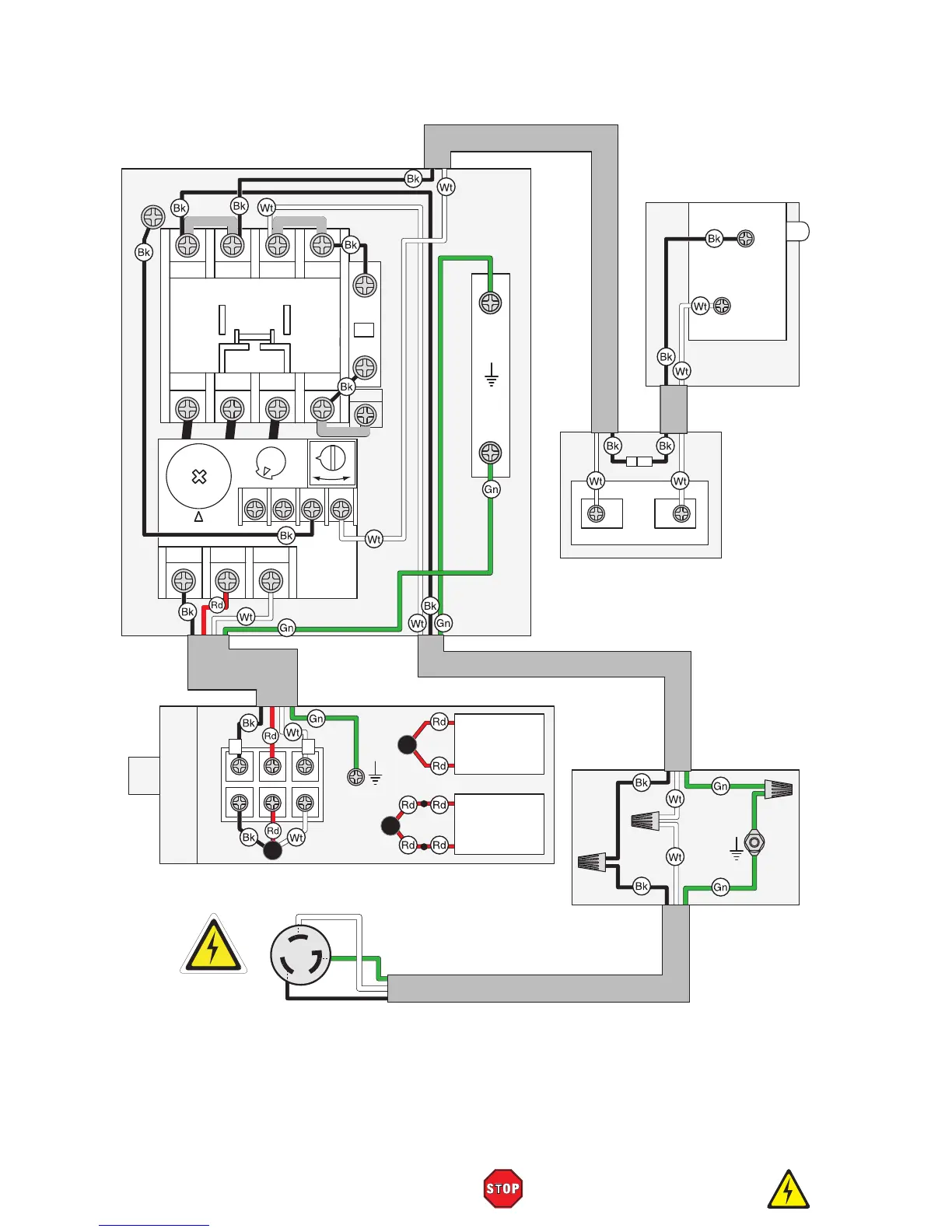

G0623X Wiring Diagram
Start
Capacitor
400MFD
250VAC
Run
Capacitor
30MFD
500VAC
EMERGENCY
STOP SWITCH
MAGNETIC SWITCH
ASSEMBLY
MOTOR 5HP 230V SINGLE-PHASE
L6-30 PLUG (AS RECOMMENDED)
Ground
Hot
Hot
230 VAC
G
X
Y
POWER
CONNECTION
BOX
BLADE GUARD
LIMIT SWITCH
Ground
Ground
Ground
2T1 6T3
14NO
4T2
1L1 5L3
13NO
3L2
NHD C-18D
230V
2T1 4T2 6T3
98 97
17
18
A1
96
O R
95
17
18
19
20
21
NHD
NTH-21
U
V
A2

Grizzly G0623X Specifications

General

Brand	Grizzly
Model	G0623X
Category	Saw
Language	English
