Grizzly G0623X User Manual

Model G0623X/G0623X3 (Mfg. Since 5/12)
-75-
READ ELECTRICAL SAFETY
ON PAGE 72!
1 2 3 4
EMERGENCY
STOP SWITCH
MAGNETIC SWITCH
ASSEMBLY
MOTOR @ 440V
BLADE GUARD
LIMIT SWITCH
1
2
POWER
CONNECTION
BOX
Hot
Hot
440 VAC
3-Phase
Ground
DISCONNECT SWITCH
(AS RECOMMENDED)
1 2 3
1 12 2 10 3 11
4 5 6 7 8 9
A
AMP
RESET
96
98
T1/2 T3/6
NO14
T2/4
L1/1 L3/5
NO13
L2/3
95
8
12
SET @ 10
NC15
SDE
NC16
Ground
1/2 3/4 5/6
OL RELAY RA-20
SDE MA-18
440V
A2

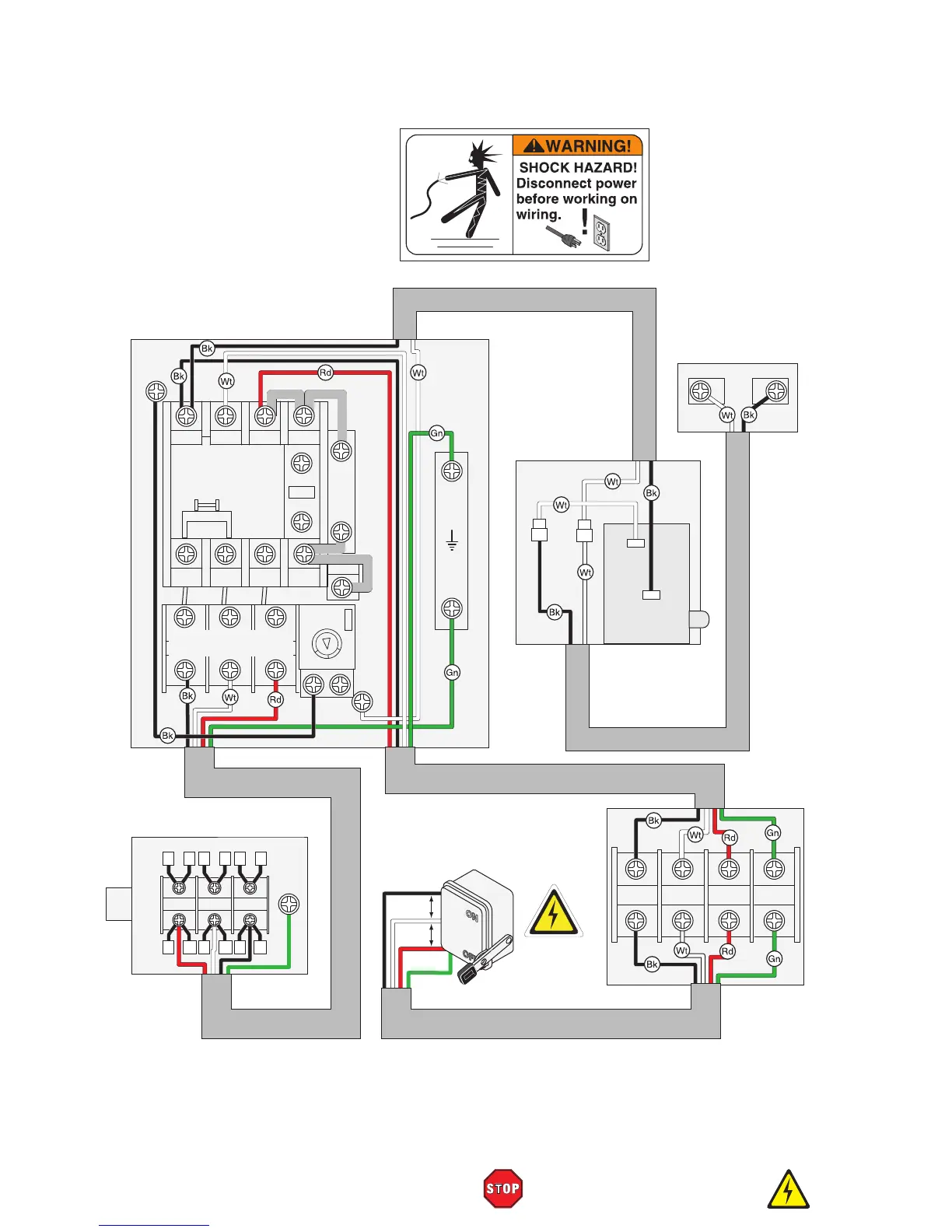

G0623X3 7.5 HP 440V Wiring Diagram
440V Wiring Diagram
