-30-
Model G0623X/G0623X3 (Mfg. Since 5/12)

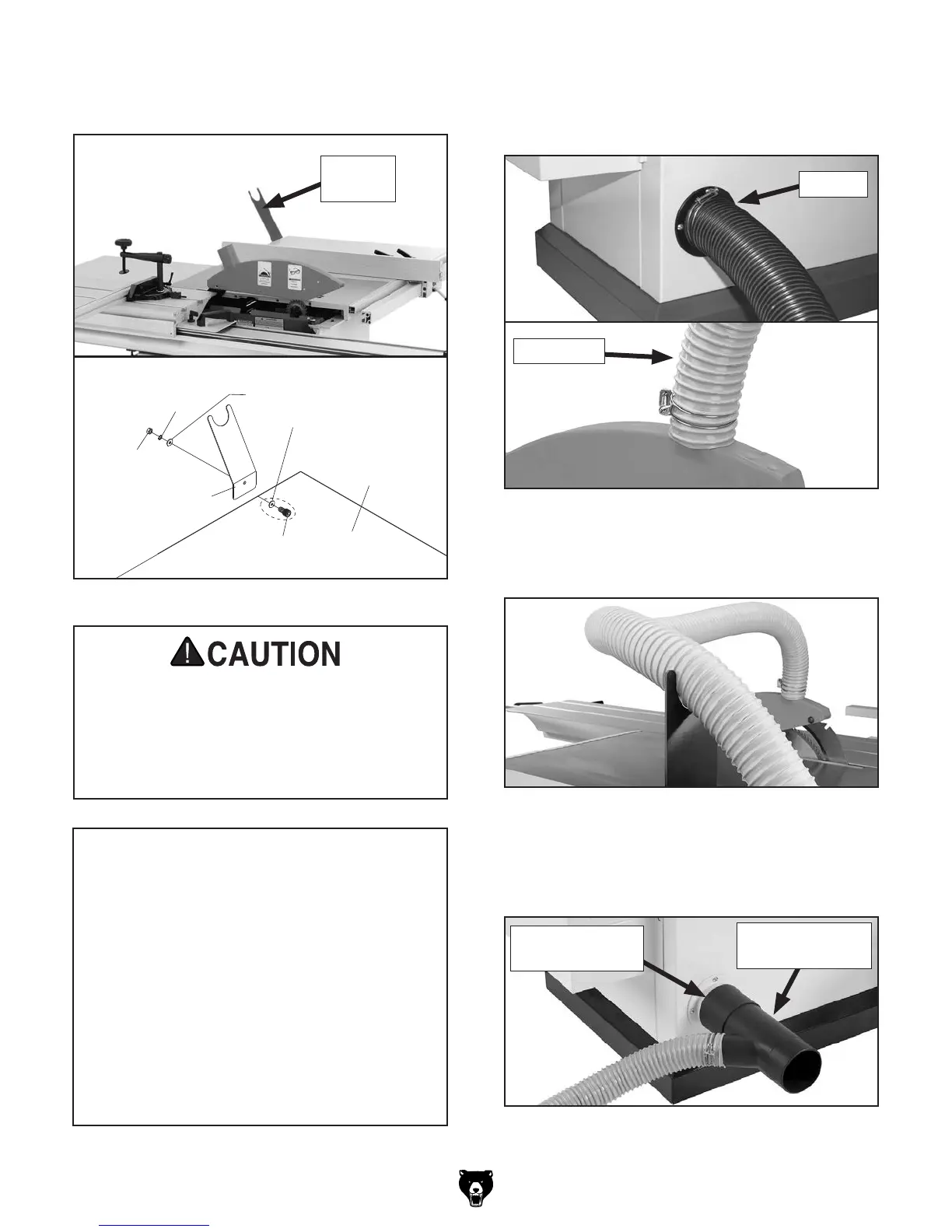

39. Install the hose support, as shown in Figure
45, with hardware shown below.
41. Run the 2½" hose over the hose support, as
shown in Figure 47.
Figure 47. Dust hose placement on support.
DO NOT operate this saw without an ade-
quate dust collection system. This saw cre-
ates substantial amounts of wood dust while
operating. Failure to use a dust collection
system can result in short and long-term
respiratory illness.
Minimum CFM at 5" Dust Port: 625 CFM
Minimum CFM at 2
1
⁄2" Dust Port: 150 CFM
Do not confuse this CFM recommendation with
the rating of the dust collector. To determine
the CFM at the dust port, you must consider
these variables: (1) CFM rating of the dust col-
lector, (2) hose type and length between the
dust collector and the machine, (3) number
of branches or wyes, and (4) amount of other
open lines throughout the system. Explaining
how to calculate these variables is beyond the
scope of this manual. Consult an expert or pur-
chase a good dust collection "how-to" book.
Figure 45. Hose support installed.
Hose
Support
Hose
Support
Lock Washer
10mm
Flat Washer
10mm
Large
Extension
Table
Cap Screw
M10-1.5 x 25
Hex Nut
M10-1.5
40. Secure a 4" dust hose to the dust port located
under the saw table and the 2
1
⁄2" dust hose to
the blade guard (see Figure 46).
Figure 46. Dust hoses attached.
2
1
⁄2" Hose
4" Hose
Tip: Connect the saw to a single dust collec-
tion branch line, using the optional accesso-
ries shown in Figure 48.
Figure 48. Optional accessories for connecting
saw to a single dust collection branch line.
H1215 4" Quick
Fit Sleeve
T20559 2
1
⁄2" x
4" x 4" Y-Fitting
To Next Page
