-18-
Model G0623X/G0623X3 (Mfg. Since 5/12)

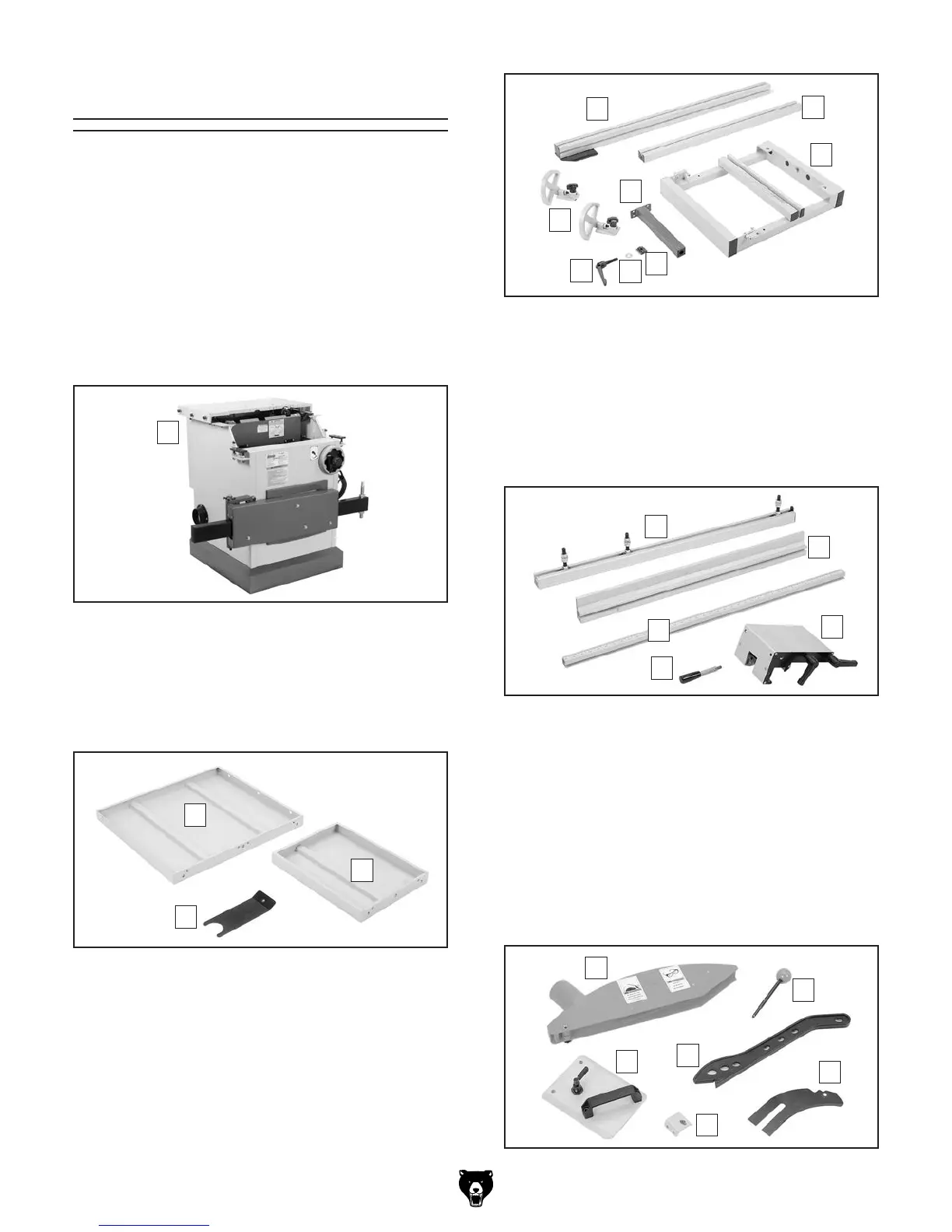

Inventory
After all the parts have been removed from the
boxes in the crate, you should have the items
listed below.
If any nonproprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
Inventory Item: (Figure 5) Qty
A. Table Saw ................................................... 1
A
Figure 5. Table saw.
Inventory Item: (Figure 6) Qty
B. Large Extension Table ............................... 1
C. Small Extension Table ................................ 1
D. Hose Support ............................................. 1
Inventory item: (Figure 7) Qty
E. Crosscut Fence .......................................... 1
F. Support Bar ................................................ 1
G. Crosscut Table ........................................... 1
H. Crosscut Table Support Leg ....................... 1
I. Flip Stops ................................................... 2
J. Lock Lever M12-1.75 x 55 ........................... 1
K. Flat Washer 12mm ..................................... 1
L. T-Nut M12-1.75 ............................................ 1
Inventory Item: (Figure 8) Qty
M. Rip Fence Rail ............................................ 1
N. Rip Fence ................................................... 1
O. Rip Fence Scale ......................................... 1
P. Rip Fence Lever w/Hex Nut M8-1.25 ......... 1
Q. Rip Fence Base .......................................... 1
Figure 8. Rip fence items.
N
O
M
P
Q
Inventory Item: (Figure 9) Qty
R. Blade Guard w/Cap Screw & Lock Nut ...... 1
S. Arbor Lock Tool .......................................... 1
T. Sliding Table Handle w/Lock ...................... 1
U. Push Stick .................................................. 1
V. Riving Knife ................................................ 1
W. End Cover ................................................... 1
X. Wrench 17mm (not shown) ......................... 1
Y. Wrench 19/22mm (not shown) .................... 1
Figure 7. Crosscut table items.
E
F
I
G
L
K
J
H
Figure 6. Extension table items.
B
C
D
Figure 9. Miscellaneous components.
R
S
V
T
W
U
