SECTION 4: OPERATIONS
Damage to your eyes and face could result
from using this machine without proper pro-
tective gear. Always wear safety glasses or a
face shield when operating this machine.
NOTICE
If you have never used this type of machine
or equipment before, WE STRONGLY REC-
OMMEND that you read books, review
industry trade magazines, or get formal
training before beginning any projects.
Regardless of the content in this section,
Grizzly Industrial will not be held liable for
accidents caused by lack of training.
Loose hair, clothing, or
jewelry could get caught
in machinery and cause
serious personal injury.
Keep these items away
from moving parts at all
times to reduce this risk.
To reduce the risk of
serious injury when using
this machine, read and
understand this entire
manual before beginning
any operations.
Basic Controls
Refer to Figures 11–13 and the following descrip-
tions to become familiar with the basic controls
and components of your lathe.
Headstock

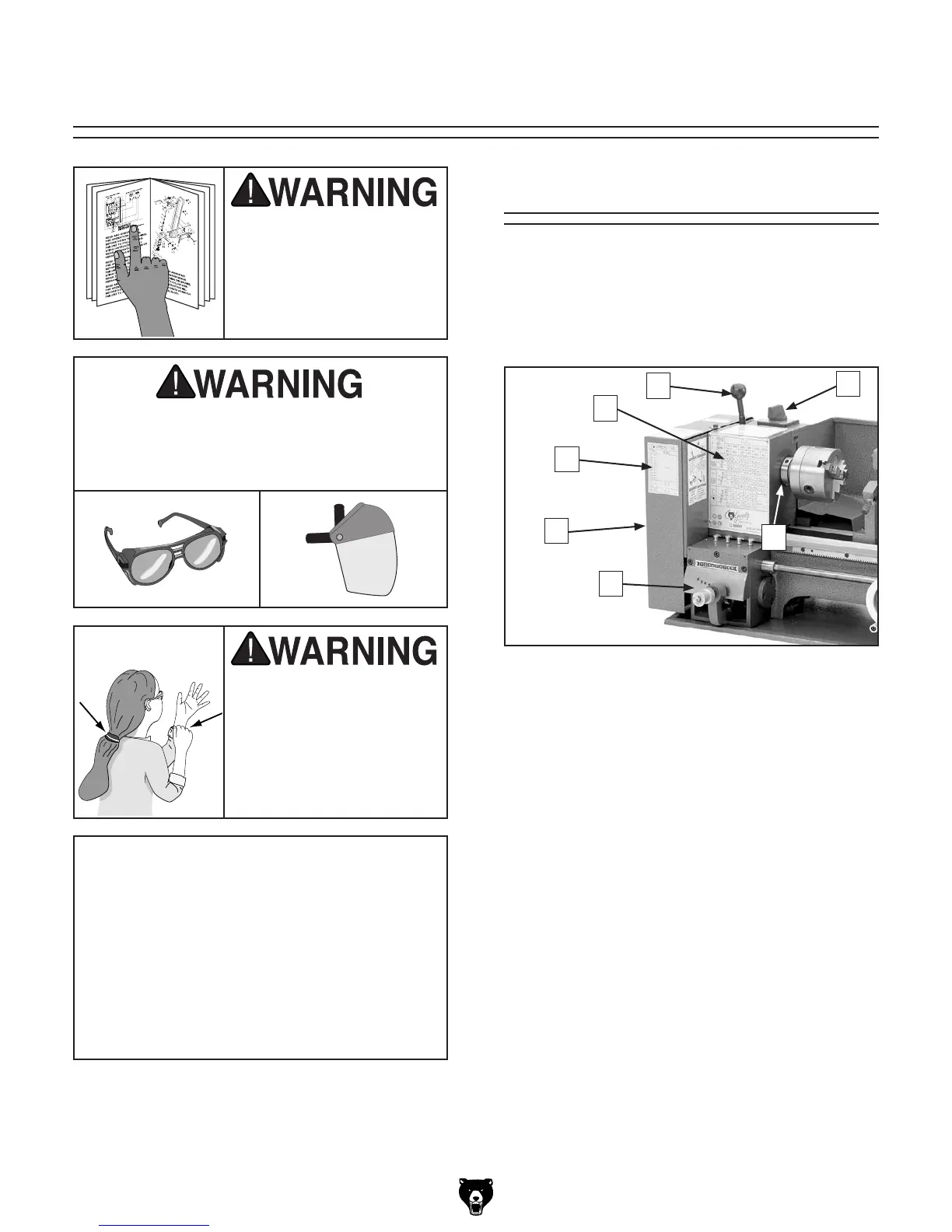

Figure 11. Headstock controls and components.
D
C
B
A
G
F
E
A. Thread Dial Chart: Shows when to engage
the half-nut for inch threading.
B. Configuration Chart: Provides belt, gear,
and lever positions for spindle speeds, power
feed rates, and threading operations.
C. Belt Tensioning Lever: Releases or applies
tension to the spindle belt.
D. Spindle Switch: Starts, reverses, and stops
spindle rotation.
E. Spindle: Holds a chuck, faceplate or center
for workpiece mounting.
F. Feed Rate Lever: Engages the gearing that
partly control the carriage feed rate.
G. Change Gear Cover: Protects the operator
from the change gears, belts, and pulleys that
transfer power from the motor to the spindle
and leadscrew.
