Model G4000 (Mfg. Since 8/09)
-35-
120 RPM
(BC1)
300 RPM
(BC2)
400 RPM
(AC1)
600 RPM
(BC3)
1000 RPM
(AC2)
2000 RPM
(AC3)

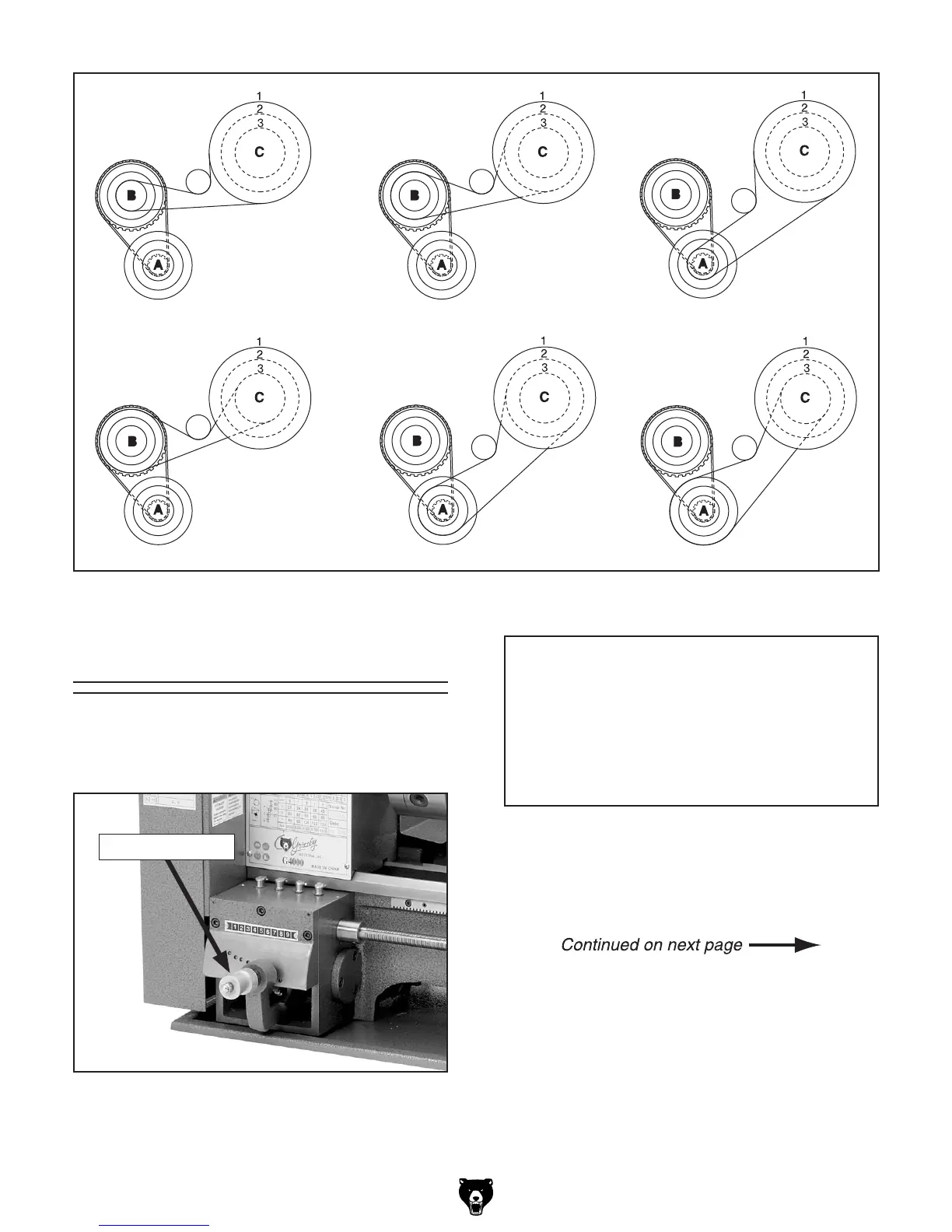

Figure 46. Illustrations of spindle belt configurations for each available spindle speed.
Feed Rate Lever
The feed rate lever shown in Figure 47 is used
with the change gears to provide the various pow-
ered feed rates for the carriage.
NOTICE
Attempting to move the feed rate lever when
the spindle is rotating will damage the inter-
nal gears of the power feed mechanism and
will void the warranty. NEVER attempt to
move the feed rate lever when the lathe is
running.
To set the feed rate lever:
1. Make sure the spindle is OFF and has come
to a complete stop.
Figure 47. Feed rate lever.
Feed Rate Lever
To Next Page
