Grizzly G4000 User Manual

Model G4000 (Mfg. Since 8/09)
-61-

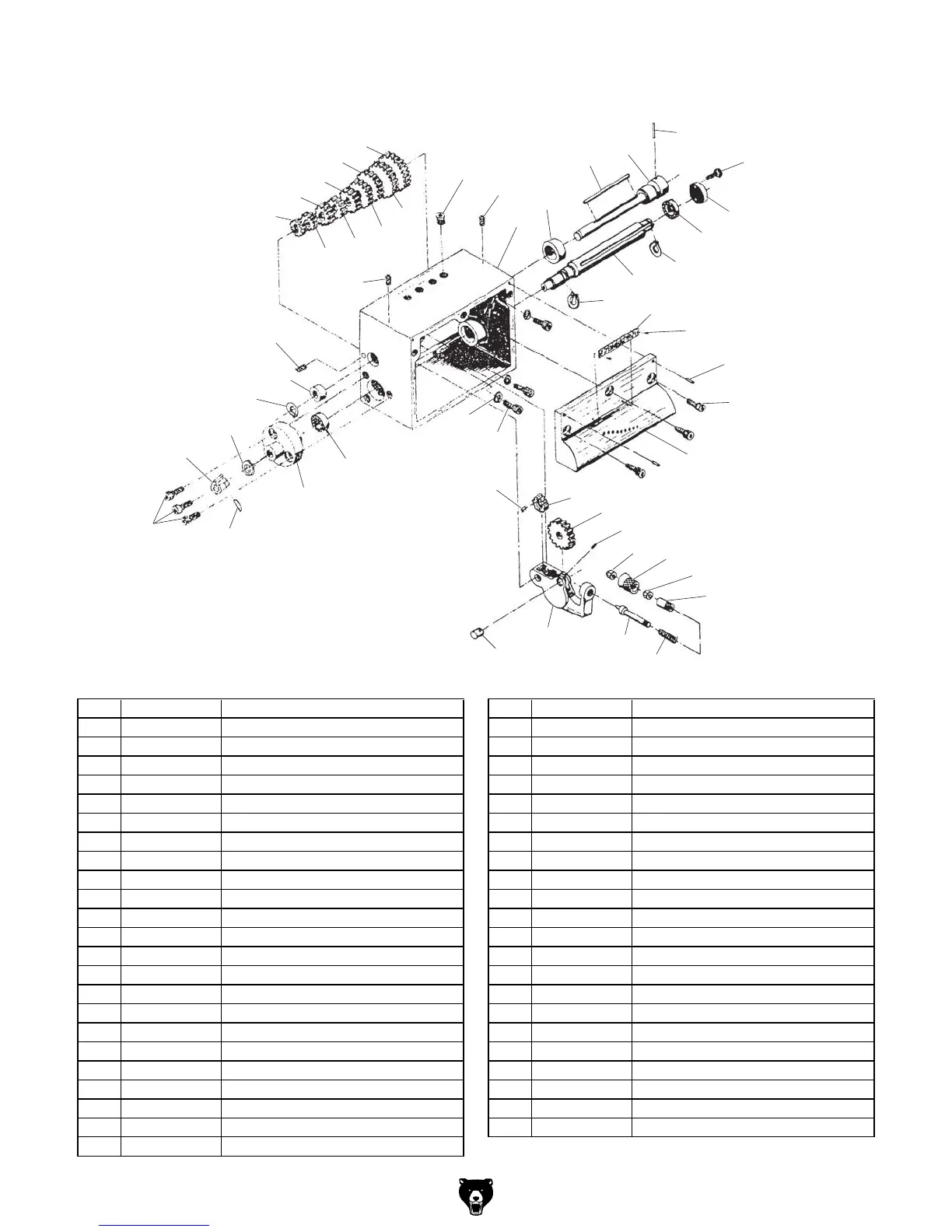

Quick Change Gears
REF PART # DESCRIPTION REF PART # DESCRIPTION
601 P4000601 GEARBOX CASTING 625 P4000625 PLUNGER
602 P4000602 SHAFT 626 P4000626 COMPRESSION SPRING
603 PK13M KEY 5 X 5 X 70 627 P4000627 BUSHING
604 P4000604 BUSHING 628 P4000628 KNURLED KNOB
605 P4000605 GEAR 28T 629 PN35M ACORN NUT M6-1
606 P4000606 GEAR 26T 630 P4000630 GEARBOX FRONT COVER
607 P4000607 GEAR 24T 631 PCAP01M CAP SCREW M6-1 X 16
608 P4000608 GEAR 23T 632 PRP20M ROLL PIN 4 X 22
609 P4000609 GEAR 22T 633 P4000633 BRACKET
610 P4000610 GEAR 20T 634 PCAP04M CAP SCREW M6-1 X 10
611 P4000611 GEAR 19T 635 PW04M FLAT WASHER 10MM
612 P4000612 GEAR 18T 636 P4000636 BUSHING
613 P4000613 GEAR 16T 637 PRP19M ROLL PIN 4 X 14
614 P4000614 BUSHING 638 P4000638 NUMBER PLATE
615 PR06M EXT RETAINING RING 16MM 639 PRIV002M COPPER FLUTED RIVET 2 X 5MM
616 P4000616 SHAFT 640 PCAP14M CAP SCREW M8-1.25 X 20
617 PK10M KEY 5 X 5 X 12 641 PLW04M LOCK WASHER 8MM
618 P4000618 GEAR 16T 642 P4000642 OIL CUP
619 P4000619 SHIFT ARM 643 P4000643 BEARING CAP
620 P4000620 SHAFT 644 PN01M HEX NUT M6-1
621 P4000621 GEAR 36T 645 PSS49M SET SCREW M4-.7 X 16
622 PSS05M SET SCREW M5-.8 X 10 646 PLUBE001M TAP-IN BALL OILER 6MM
623 PR05M EXT RETAINING RING 15MM 647 PRP18M ROLL PIN 4 X 12
624 P6202ZZ BALL BEARING 6202ZZ
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
623
624
631
647
646
646
645
644
