Model G4000 (Mfg. Since 8/09)
-55-
READ ELECTRICAL SAFETY
ON PAGE 54!

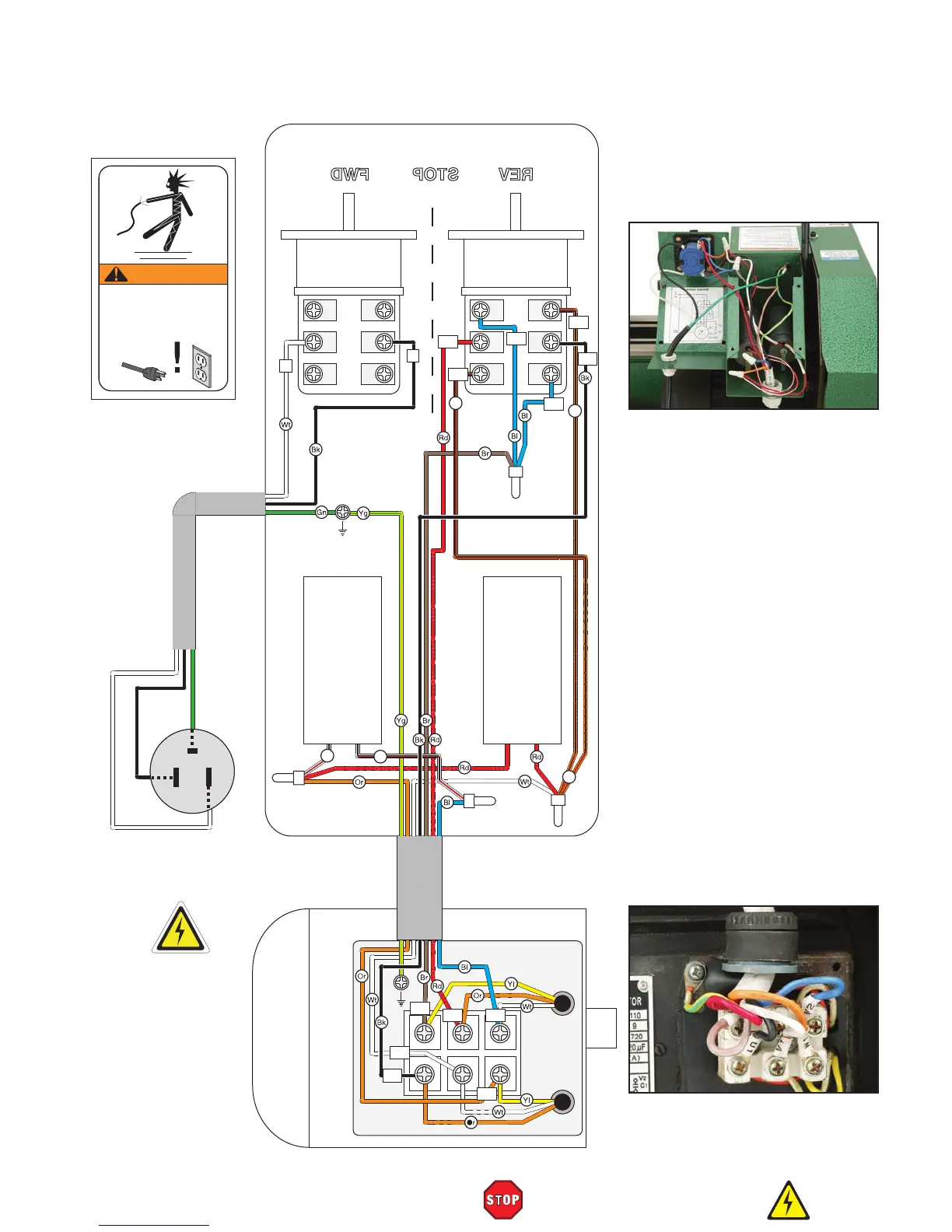

wiring diagram
Wiring Diagram
wiring diagram
2
10
6
4
12
8
3
11
7
1
9
5
Spindle Switch
Motor
Run Capacitor
20MFD 450VAC
Hot
Hot
Ground
NEMA 5-15 Plug
(As Recommended)
W2
U2
V2
W1
V1
Rw
Start Capacitor
100MFD 250VAC
Rw
U1
Ro
W2
U2
V1
U1
W2
V1
N
L
WARNING!
SHOCK HAZARD!
Disconnect power
before working on
wiring.
Ro
Ro
Figure 87. Electrical box wiring.
Figure 88. Motor wiring.
