Grizzly G4000 User Manual

-58-
Model G4000 (Mfg. Since 8/09)

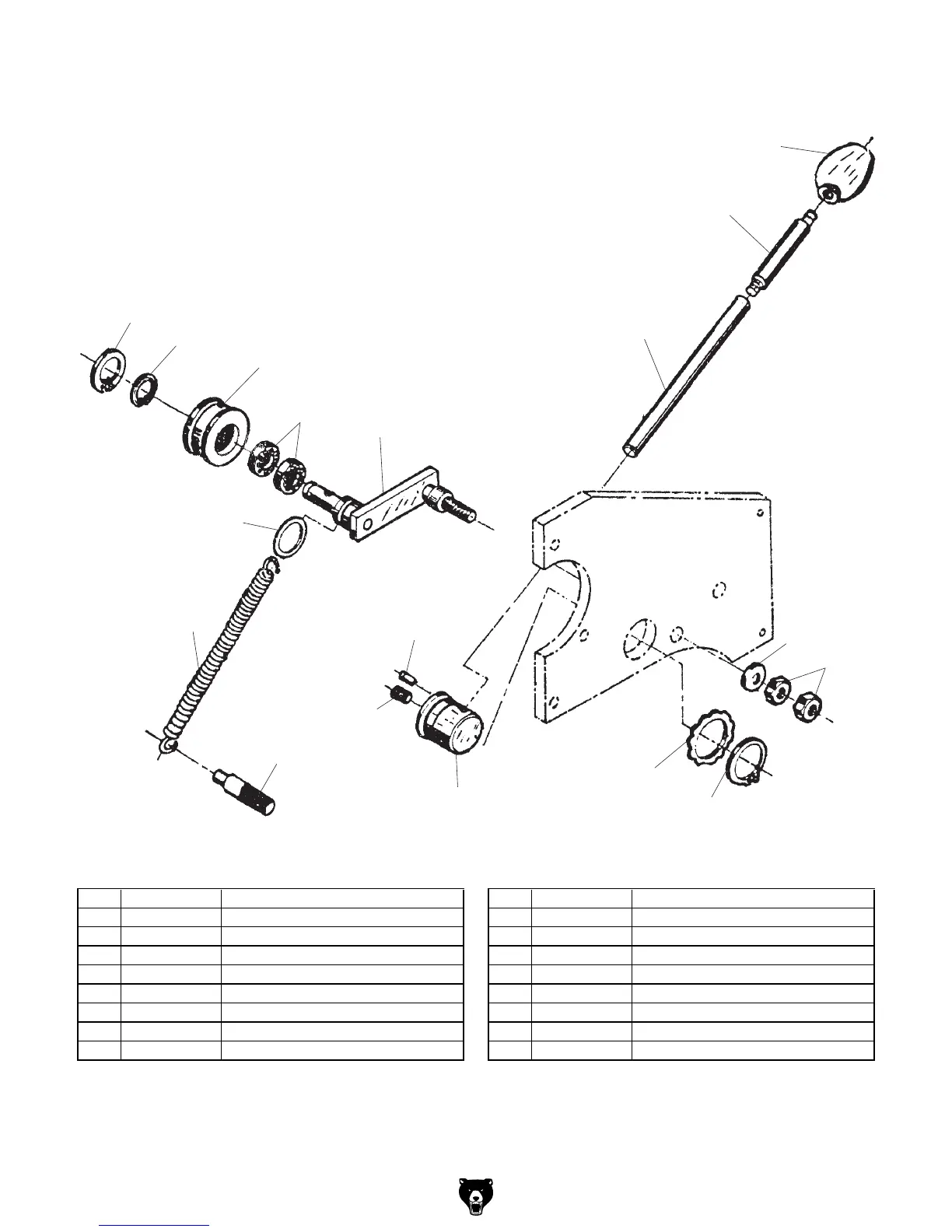

Belt Tension Lever
REF PART # DESCRIPTION REF PART # DESCRIPTION
303 P4000303 LEVER BRACKET ASSEMBLY 314 P4000314 STUD BOLT
305 P6001ZZ BALL BEARING 6001ZZ 315A P4000315A TENSIONING CAM V2.08.07
306 P4000306 ROLLER 316A PCAP06M CAP SCREW M6-1 X 25
308 PR03M EXT RETAINING RING 12MM 319 PSS20M SET SCREW M8-1.25 X 8
309 PR20M INT RETAINING RING 28MM 320 P4000320 WAVY WASHER
310 PW04M FLAT WASHER 10MM 321 PR84M EXT RETAINING RING 34MM
311 PN02M HEX NUT M10-1.5 322 P4000322 BELT TENSION LEVER
312 P4000312 SPRING RING 323 P4000323 EXTENSION ROD
313 P4000313 TENSION SPRING 324 P4000324 KNOB
303
305
306
308
309
310
311
312
313
314
315A
316A
319
320
321
322
323
324

Grizzly G4000 Specifications

General

Brand	Grizzly
Model	G4000
Category	Lathe
Language	English
