Grizzly G4000 User Manual

-48-
Model G4000 (Mfg. Since 8/09)

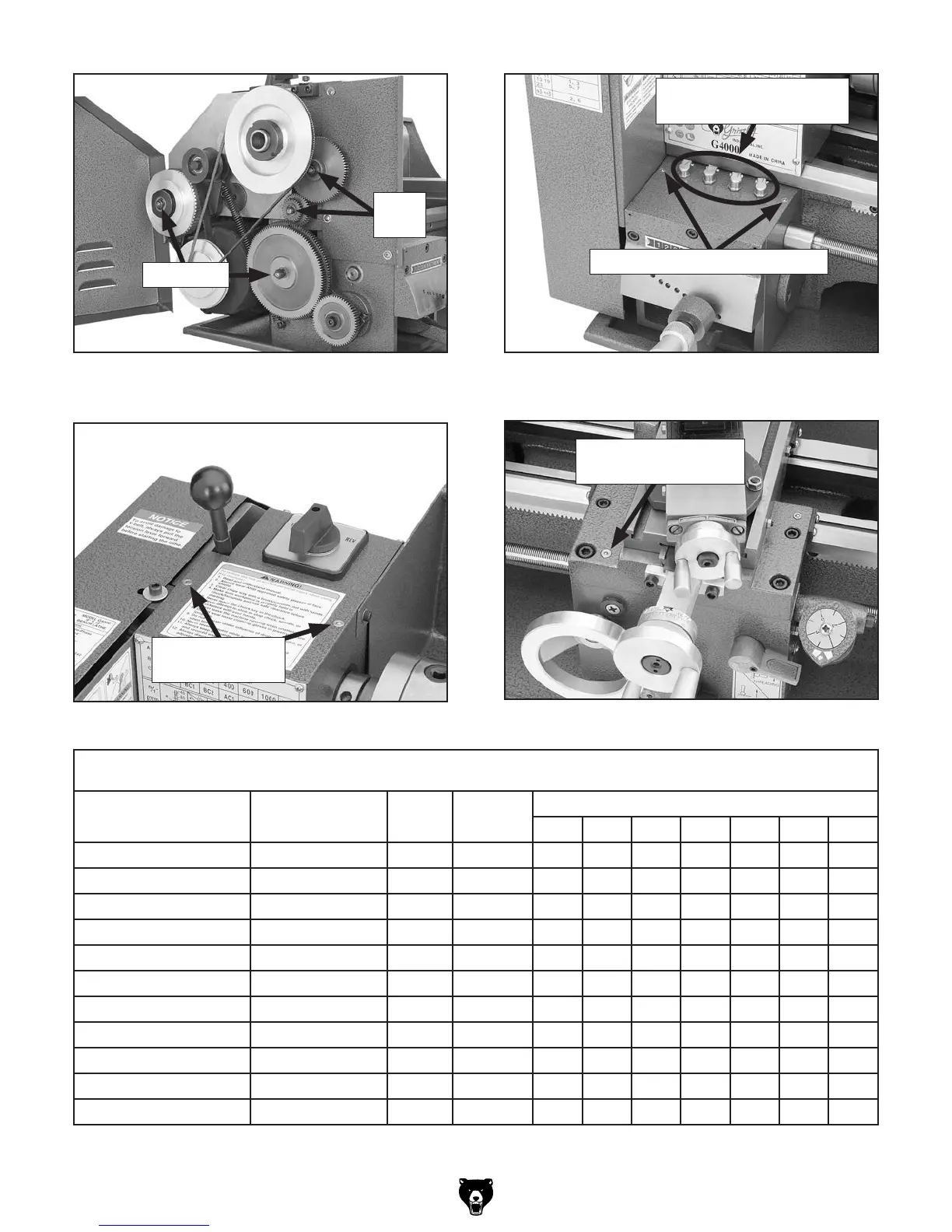

Figure 73. Ball oilers inside the change gear
cover.
Ball Oilers
Ball
Oilers
Figure 74. Spindle bearing ball oilers.
Spindle Bearing
Ball Oilers
Figure 75. Leadscrew bearing ball oilers and
quick change gear oil cups.
Quick Change Oil Cups
(1 Squirt)
Leadscrew Bearing Ball Oilers
Figure 76. Carriage handwheel ball oiler.
Carriage Handwheel
Ball Oiler
lubrication 1
Daily Lubrication Chart
Machine Area Lubricant
Figure
No.
No. of
Fittngs
Days
Mon Tue Wed Thu Fri Sat Sun
Change Gears ISO 32 Oil
73
4
Spindle Bearings ISO 32 Oil
74
2
Leadscrew Bearings ISO 32 Oil
75
2
Quick Change Cups ISO 68/Way Oil
75
4
Carriage Handwheel ISO 32 Oil
76
1
Apron ISO 32 Oil
78
3
Tailstock ISO 32 Oil
79
1
Leadscrew Bushing ISO 32 Oil
80
1
Rack ISO 68/Way Oil
81
Length
Leadscrew Threads ISO 68/Way Oil
81
Length
Bedways ISO 68/Way Oil
81
Length
Figure 77. Daily lubrication chart.
