Grizzly G4000 User Manual

-66-
Model G4000 (Mfg. Since 8/09)

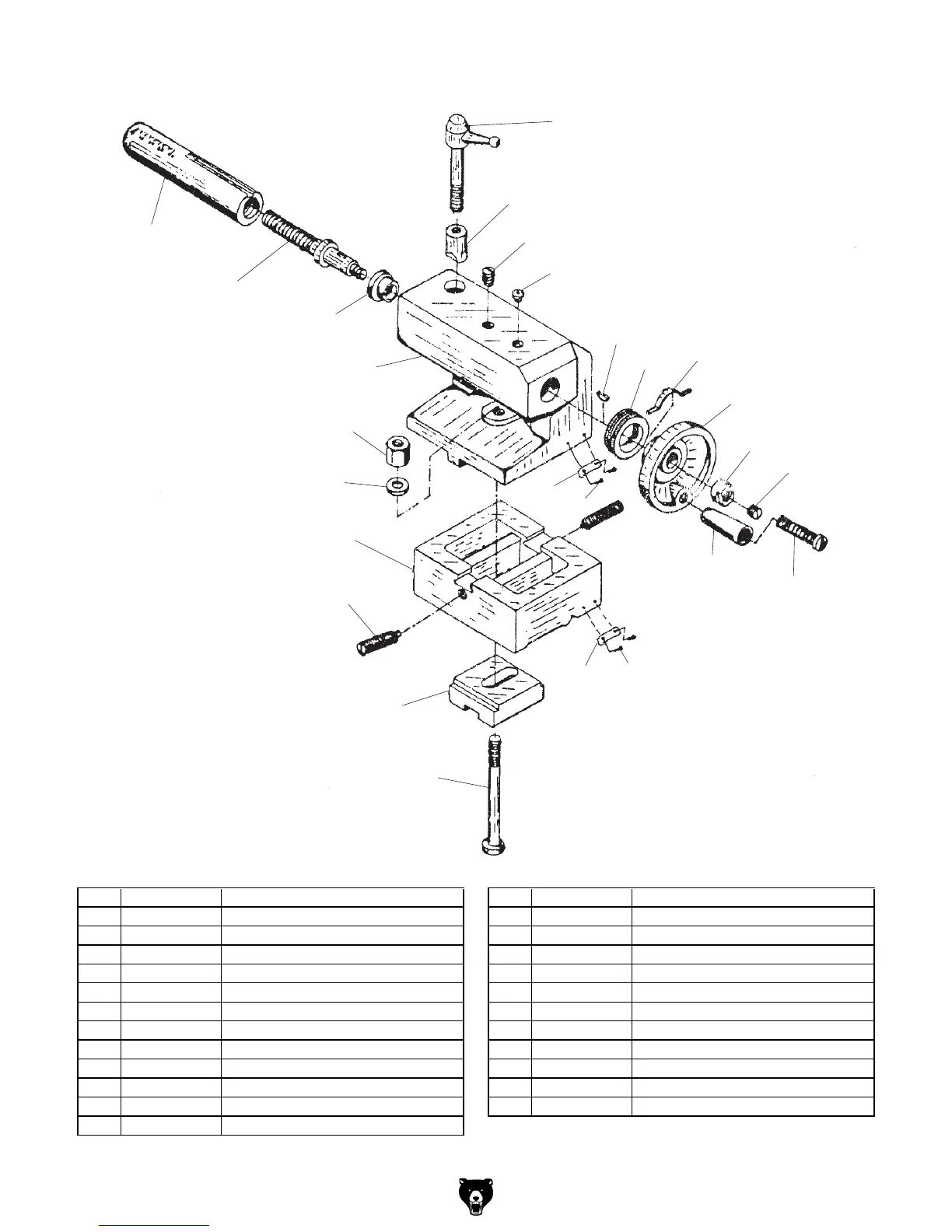

Tailstock
REF PART # DESCRIPTION REF PART # DESCRIPTION
1001 P40001001 TAILSTOCK QUILL 1015 P40001015 HANDLE
1002 P40001002 TAILSTOCK LEADSCREW 1016 P40001016 HANDLE SCREW
1003 P40001003 BUSHING 1017 P40001017 KEY 3 X 13
1005 P40001005 HANDWHEEL 1018 PSS20M SET SCREW M8-1.25 X 8
1006 P40001006 QUILL LOCK LEVER 1019 PRIV002M COPPER FLUTED RIVET 2 X 5MM
1007 P40001007 CLAMP 1020 P40001020 OIL PORT 6MM
1008 PSS05M SET SCREW M5-.8 X 10 1021 P40001021 CLAMPING PLATE
1009 P40001009 GRADUATED DIAL 1022 PN03M HEX NUT M8-1.25
1010 P40001010 POINTER PLATE 1023 P40001023 TAILSTOCK CLAMP BOLT
1011 P40001011 HANDWHEEL NUT M8-1.25 1024 PW01M FLAT WASHER 8MM
1012 P40001012 TAILSTOCK BODY 1026 P40001026 UPPER OFFSET PLATE V2.03.09
1013 P40001013 TAILSTOCK BASE 1027 P40001027 LOWER OFFSET PLATE V2.03.09
1014 PSS21M SET SCREW M8-1.25 X 25
1001
1002
1003
1005
1006
1007
1008
1009
1010
1011
1012
1013
1014
1015
1016
1017
1018
1019
1020
1021
1022
1023
1024
1019
1027
1026
