Grizzly G4000 User Manual

-60-
Model G4000 (Mfg. Since 8/09)

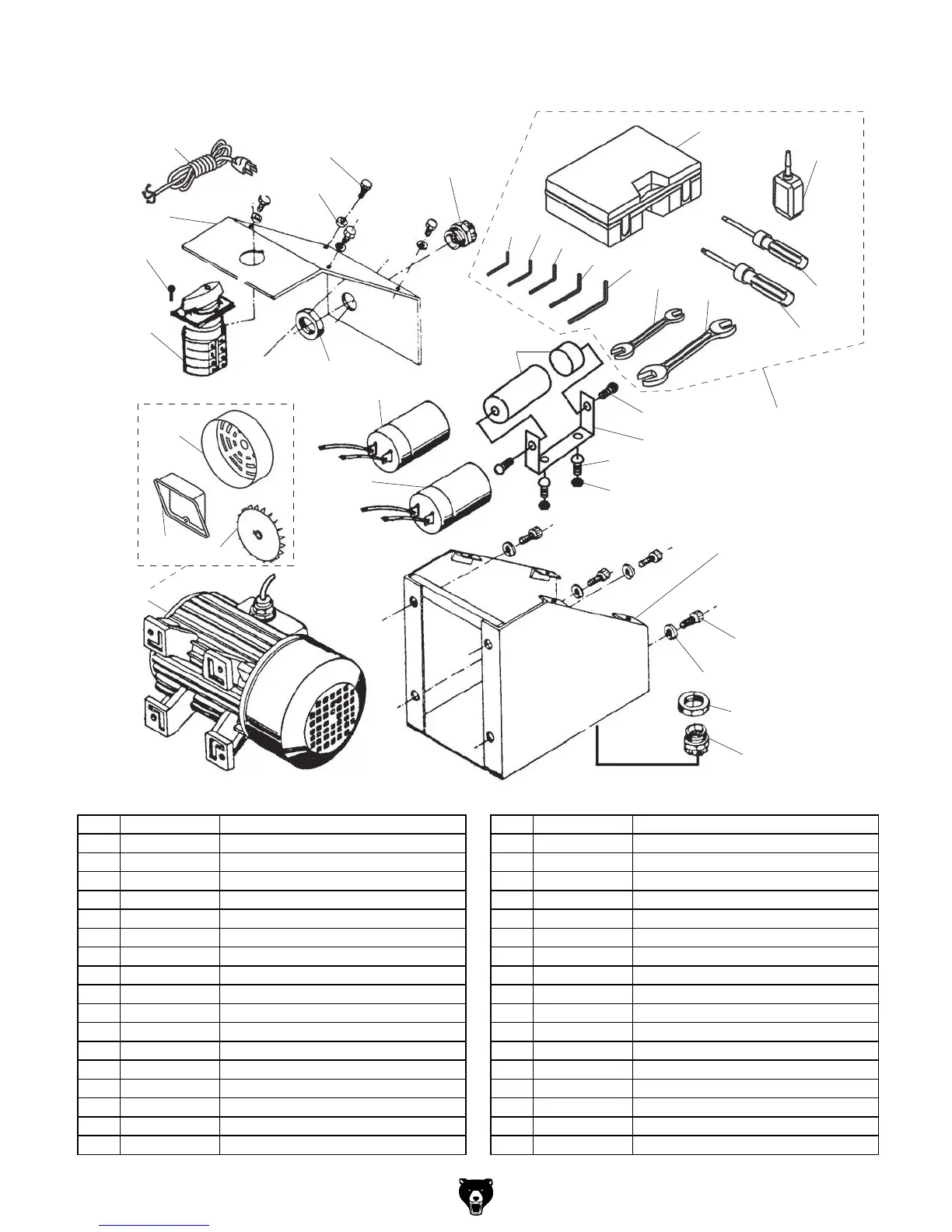

Electrical & Tools
REF PART # DESCRIPTION REF PART # DESCRIPTION
501 P4000501 ELECTRICAL BOX 516 PS17M PHLP HD SCR M4-.7 X 6
502 PCAP50M CAP SCREW M5-.8 X 10 517 P4000517 CAPACITOR CLIP
503 PLW03M LOCK WASHER 6MM 518 PWR810 WRENCH 8/10MM
504 P4000504 ELECTRICAL BOX COVER 519 PWR1214 WRENCH 12/14MM
506B P4000506B R CAPACITOR 20M 400V 1-5/8 X 2-7/8 520 PAW01.5M HEX WRENCH 1.5MM
506C P4000506C S CAPACITOR 100M 250V 1-5/8 X 3-1/8 521 PAW02M HEX WRENCH 2MM
507 P4000507 STRAIN RELIEF NUT M16-1 522 PAW04M HEX WRENCH 4MM
508 P4000508 STRAIN RELIEF M16 523 PAW05M HEX WRENCH 5MM
509 P4000509 SPINDLE SWITCH 524 PAW06M HEX WRENCH 6MM
510 PS09M PHLP HD SCR M5-.8 X 10 525 PS56M PHLP HD SCR M4-.7 X 16
511 P4000511 MOTOR 3/4HP 110V 60HZ 526 P4000526 STRAIN RELIEF NUT M24-1.5
511-1 P4000511-1 MOTOR FAN COVER 527 P4000527 STRAIN RELIEF M24
511-2 P4000511-2 MOTOR FAN 936 PSDF2 SCREWDRIVER FLAT #2
511-3 P4000511-3 TERMINAL COVER 937 PSDP2 SCREWDRIVER PHILLIPS #2
512 PLW01M LOCK WASHER 5MM 945 PWRCRD110L POWER CORD 16/3/110V
513 PN04M HEX NUT M4-.7 1316 P40001316 TOOL BOX
514 PS07M PHLP HD SCR M4-.7 X 8 1316A P40001316A COMPLETE TOOL BOX
515 P4000515 CAPACITOR COVER W/CAP 1319 P40001319 OIL BOTTLE
501
502
503
504
506B
506C
507
508
509
510
511
511-1
511-2
511-3
512
1316
936
937
518
519
520
521
522
523
524
1319
513
514
515
516
517
527
526
525
945
1316A
