Model G4000 (Mfg. Since 8/09)
-67-

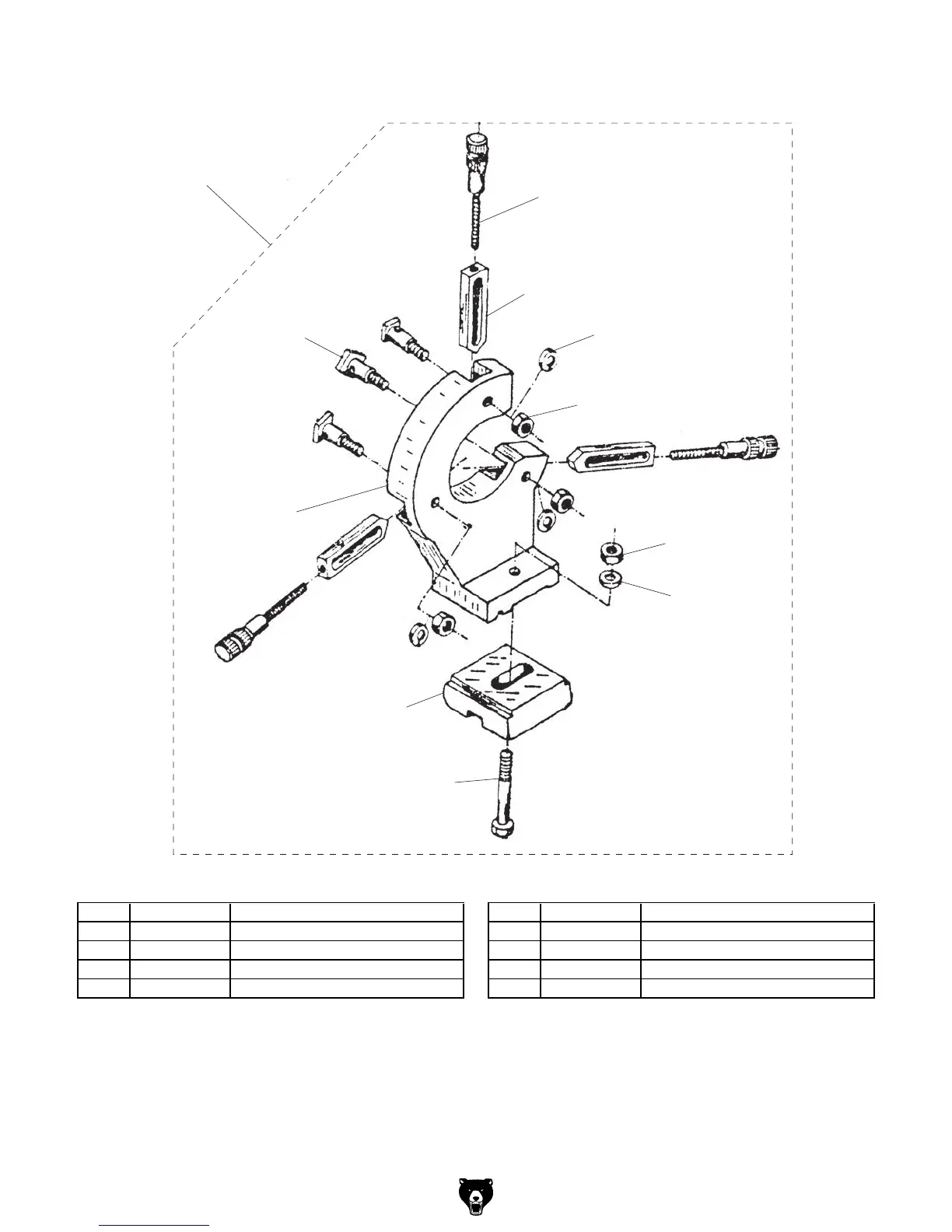

Steady Rest
REF PART # DESCRIPTION REF PART # DESCRIPTION
1101 P40001101 STEADY REST CASTING 1105 PN03M HEX NUT M8-1.25
1101A P40001101A STEADY REST ASSEMBLY 1106 P40001106 ADJUSTING SCREW
1102 P40001102 STEADY REST FINGER 1107 P40001107 CLAMPING PLATE
1103 P40001103 SPECIAL SCREW 1108 PB28M HEX BOLT M8-1.25 X 60
1104 PLW04M LOCK WASHER 8MM 1109 PW01M FLAT WASHER 8MM
1101
1101A
1102
1103
1104
1105
1106
1107
1108
1109
1105
