Grizzly G4000 User Manual

-56-
Model G4000 (Mfg. Since 8/09)
101
102
103
104
105
106
107
108
109
110
112
113
114
115
118
119A
120
121
122
123
126
126A
126B
127A
127A-1
129
130
131
1001A
107
106
105
121
120
115
118
114
133
134
111
135
124
126C

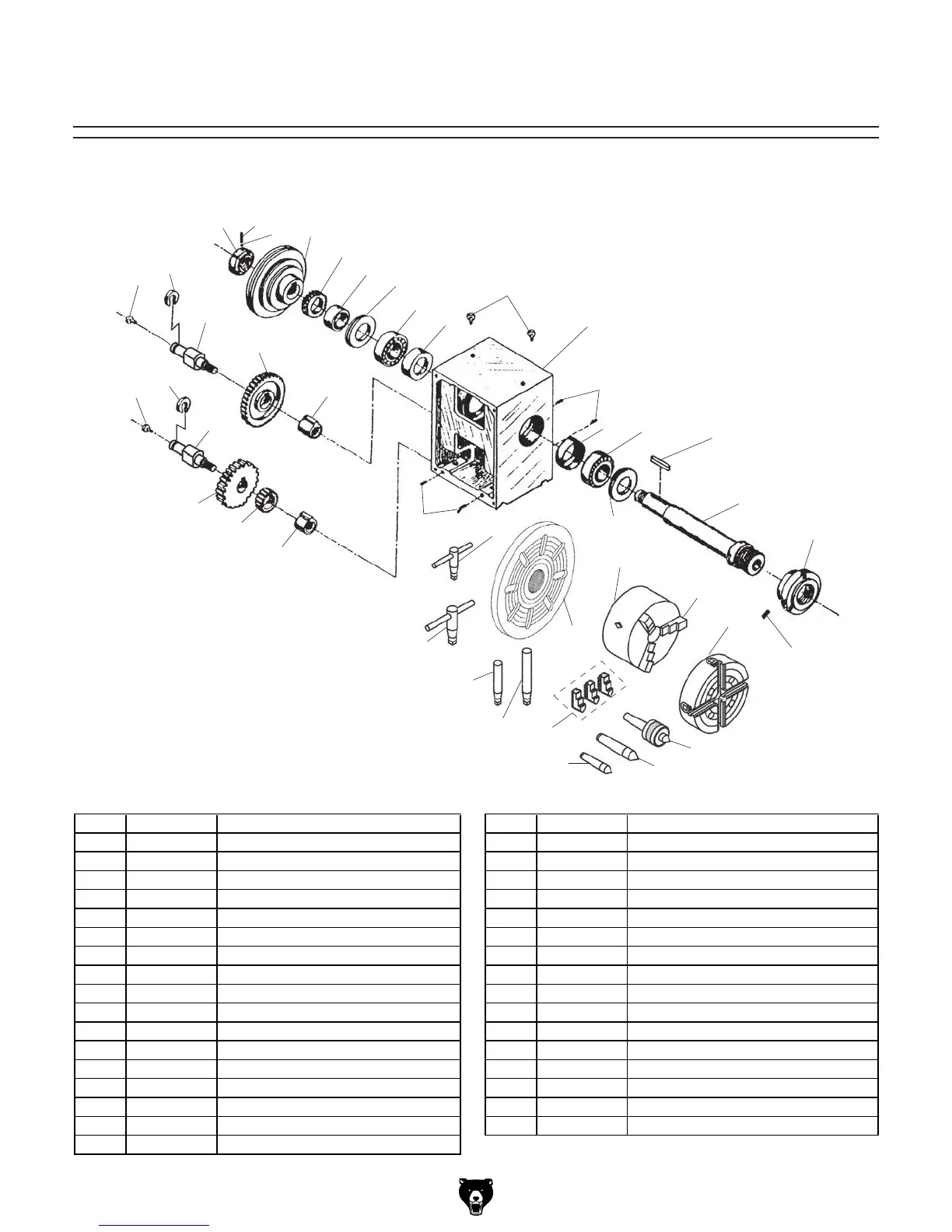

Headstock
SECTION 9: PARTS
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 P4000101 HEADSTOCK CASTING 121 P40001020 OIL PORT 6MM
102 P4000102 3-JAW CHUCK BACK PLATE 122 P4000122 GEAR 40T X 14MM
103 P4000103 SPINDLE 123 P4000123 GEAR 28T
104 P4000104 SPINDLE SHAFT KEY 124 PSS01M SET SCREW M6-1 X 10
105 P4000105 GASKET 126 P4000126 3-JAW CHUCK 4"
106 P32007 TAPERED BEARING 32007 126A P4000126A 3-JAW CHUCK KEY
107 P4000107 BEARING CAP 126B P4000126B 3-JAW REVERSE JAWS 3PC SET
108 P4000108 SPACER 126C P4000126C 3-JAW INTERNAL 3-PC JAWS V2.03.07
109 P4000109 GEAR 40T X 30MM 127A P4000127A 4-JAW CHUCK 6-1/4"
110 P4000110 SPINDLE PULLEY 127A-1 P4000127A-1 4-JAW CHUCK KEY
111 P4000111 STEEL BALL 129 P4000129 DEAD CENTER MT#2
112 PSS08M SET SCREW M4-.7 X 5 130 P4000130 DEAD CENTER MT#3
113 P4000113 THREADED LOCK COLLAR 131 P4000131 FACEPLATE 7-1/2"
114 PSS23M SET SCREW M4-.7 X 10 133 P4000133 CHUCK BAR SHORT
115 P4000115 SHAFT 134 P4000134 CHUCK BAR LONG
118 P4000405 KEYED BUSHING 135 PLUBE001 TAP-IN BALL OILER 1/4
119A P4000119A GEAR 80T METAL 1001A P40001001A LIVE CENTER MT#2
120 P4000120 RETAINING CLIP
