Model G4000 (Mfg. Since 8/09)
-69-

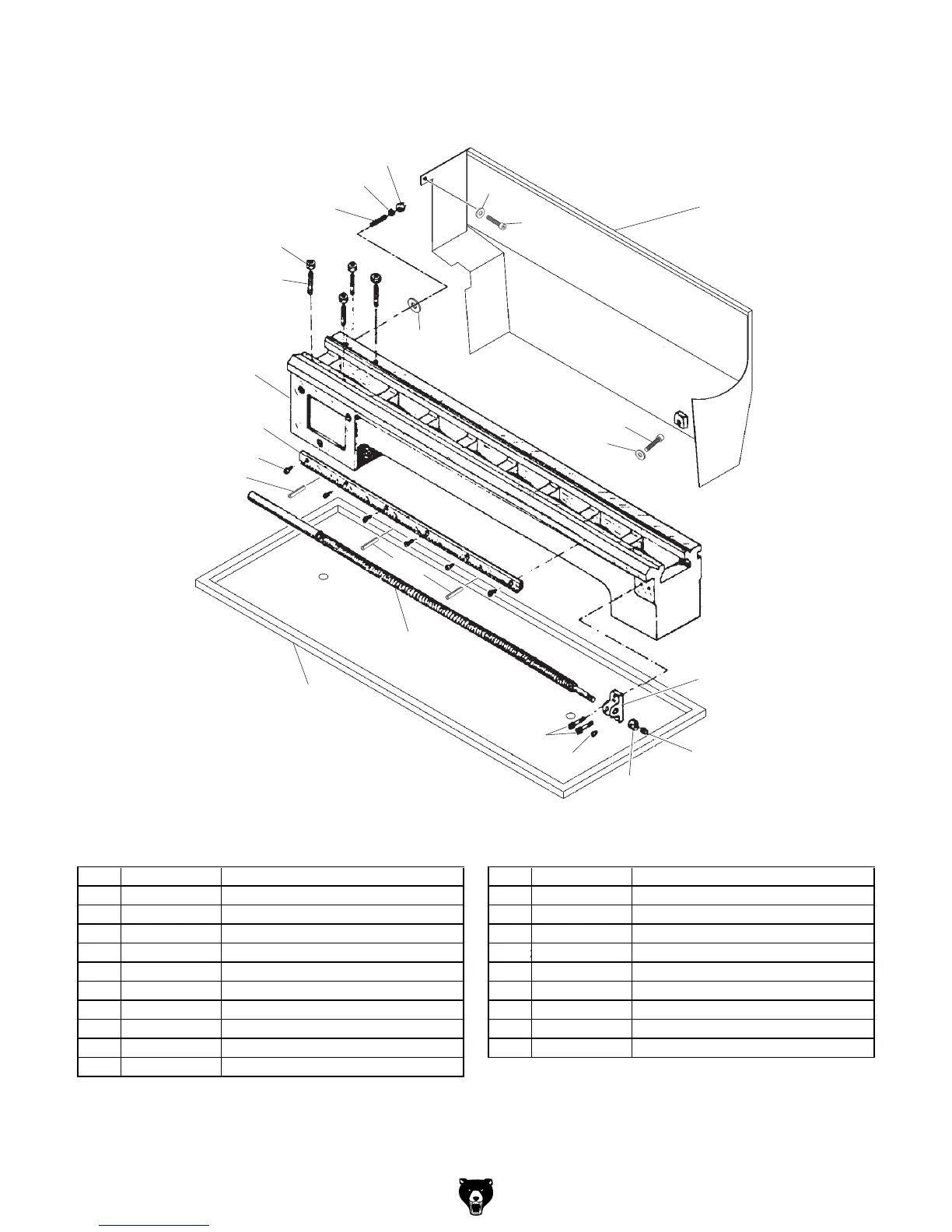

Bed
706
1301
1302
1303
1305
1306
1307
1308
1309
1310
1311
1312
1313
1314
1317
1318
1322
1321
1320
1321
1320
1323
1323
1317V2
REF PART # DESCRIPTION REF PART # DESCRIPTION
706 P4000706 LEADSCREW 9/16-16 x 25" 1312 PSS12M SET SCREW M6-1 X 25
1301 P40001301 BED 1313 PW03M FLAT WASHER 6MM
1302 P40001302 RACK 1314 PN01M HEX NUT M6-1
1303 PCAP18M CAP SCREW M4-.7 X 8 1317 P40001317 CHIP SHIELD GREEN V1.06.97
1305 P40001305 LEADSCREW BUSHING BLOCK
P40001317V2 CHIP SHIELD WHITE V2.01.08
1306 P4000216 OIL PORT 1318 P40001318 CHIP PAN
1307 PCAP02M CAP SCREW M6-1 X 20 1320 PW02M FLAT WASHER 5MM
1308 PN03M HEX NUT M8-1.25 1321 PCAP50M CAP SCREW M5-.8 X 10
1309 PSS17M SET SCREW M8-1.25 X 6 1322 PWF06M FENDER WASHER 6MM
1310 P40001310 THREADED STUD M8-1.25 X 28 1323 PRP76M ROLL PIN 4 X 16
1311 PN03M HEX NUT M8-1.25
