Model G4000 (Mfg. Since 8/09)
-59-

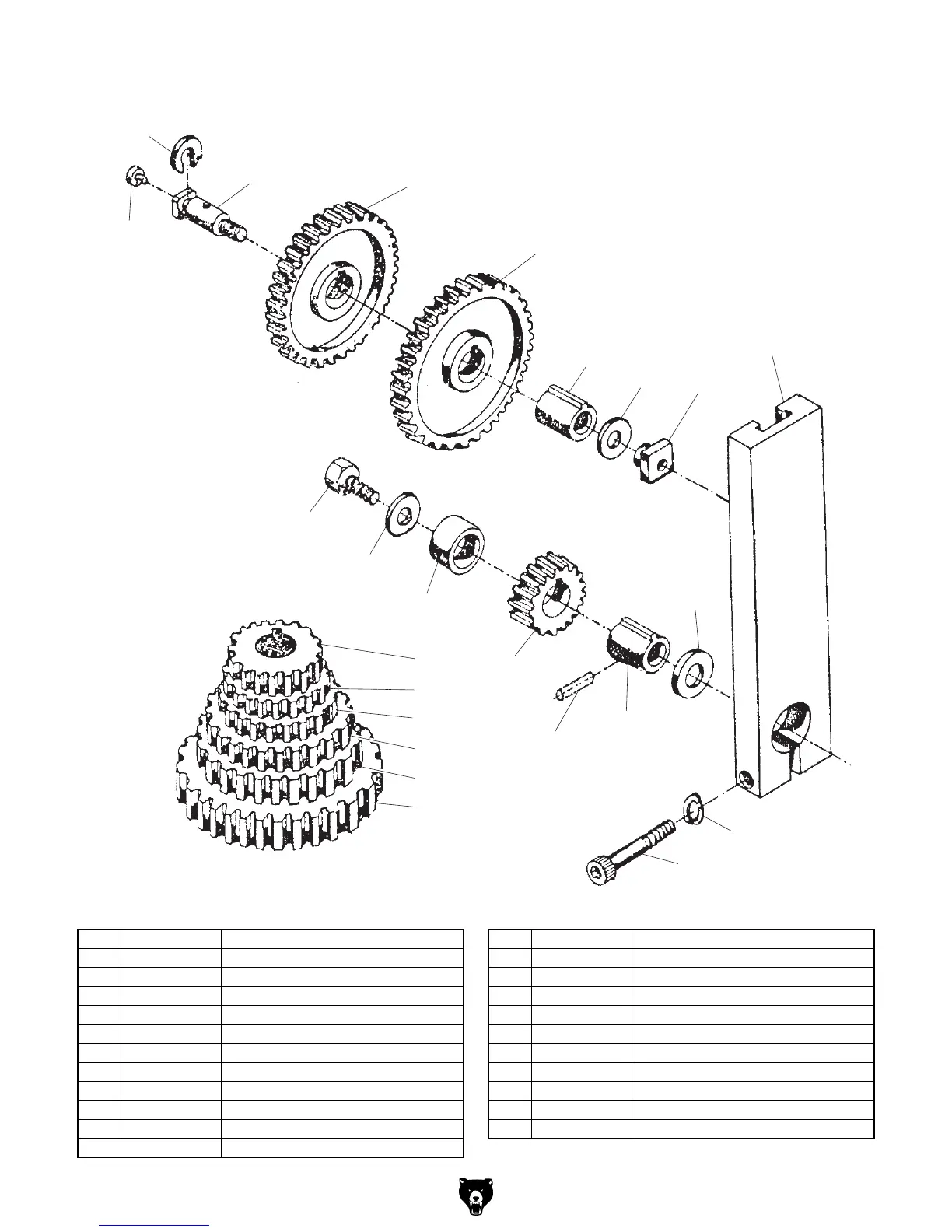

Change Gears
REF PART # DESCRIPTION REF PART # DESCRIPTION
401 P4000401 BRACKET 413 P4000413 SPACER
402 P4000402 T-NUT M6-1 414 PW03M FLAT WASHER 6MM
403 PW03M FLAT WASHER 6MM 415 PCAP04M CAP SCREW M6-1 X 10
404 P4000404 SHAFT 416 PLW03M LOCK WASHER 6MM
405 P4000405 KEYED BUSHING 417 PCAP48M CAP SCREW M6-1 X 35
406 P4000406 GEAR 127T 418 P4000418 GEAR 28T
407 P4000407 GEAR 120T 419 P4000419 GEAR 36T
408 P4000408 SHAFT RETAINING CLIP 420 P4000420 GEAR 42T
409 P4000409 OIL PORT 6MM 421 P4000421 GEAR 45T
410 PW04M FLAT WASHER 10MM 422 P4000422 GEAR 60T
411 PRP19M ROLL PIN 4 X 14 423 P4000423 GEAR 80T
412 P4000412 GEAR 30T
