Automatic Greasing System OnePlus
General information
7
Date of issue: October 2011
EG1605R01
A Groeneveld OnePlus automatic greasing system could comprise the following
parts (see Figure 1.1):
1. An electric grease pump (plunger pump) with integrated grease reservoir and
a digital control unit with data storage facility.
2. Manometer.
3. Primary grease lines between the pump unit and the distribution blocks and
interconnecting the distribution blocks themselves.
4. Main distribution block.
5. One or more distribution blocks (assembled from multiple doser segments).
6. Secondary grease lines between the distribution blocks (doser segments) and
the individual grease points.
7. Distribution block monitoring switch.

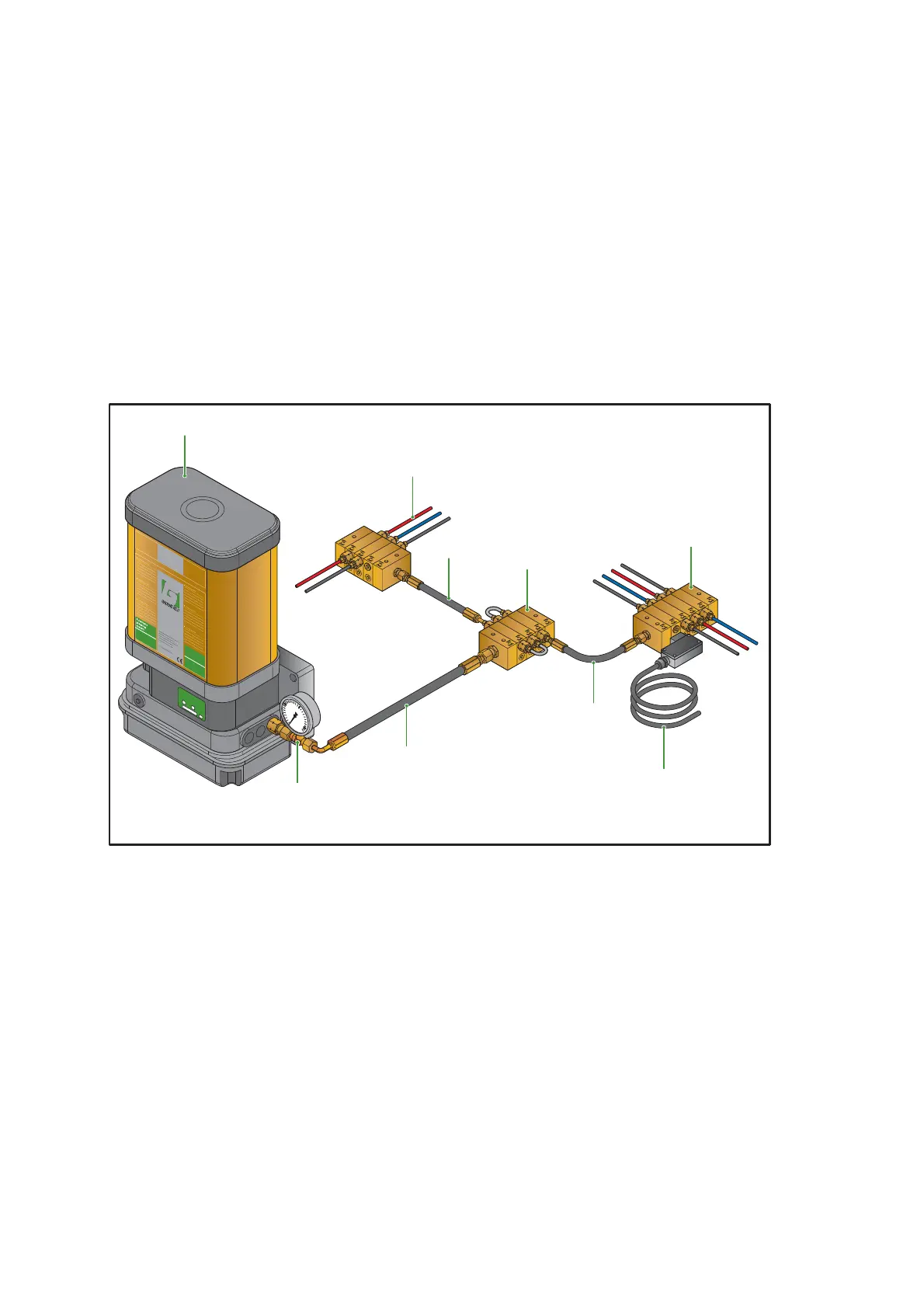

Figure 1.1 System overview
