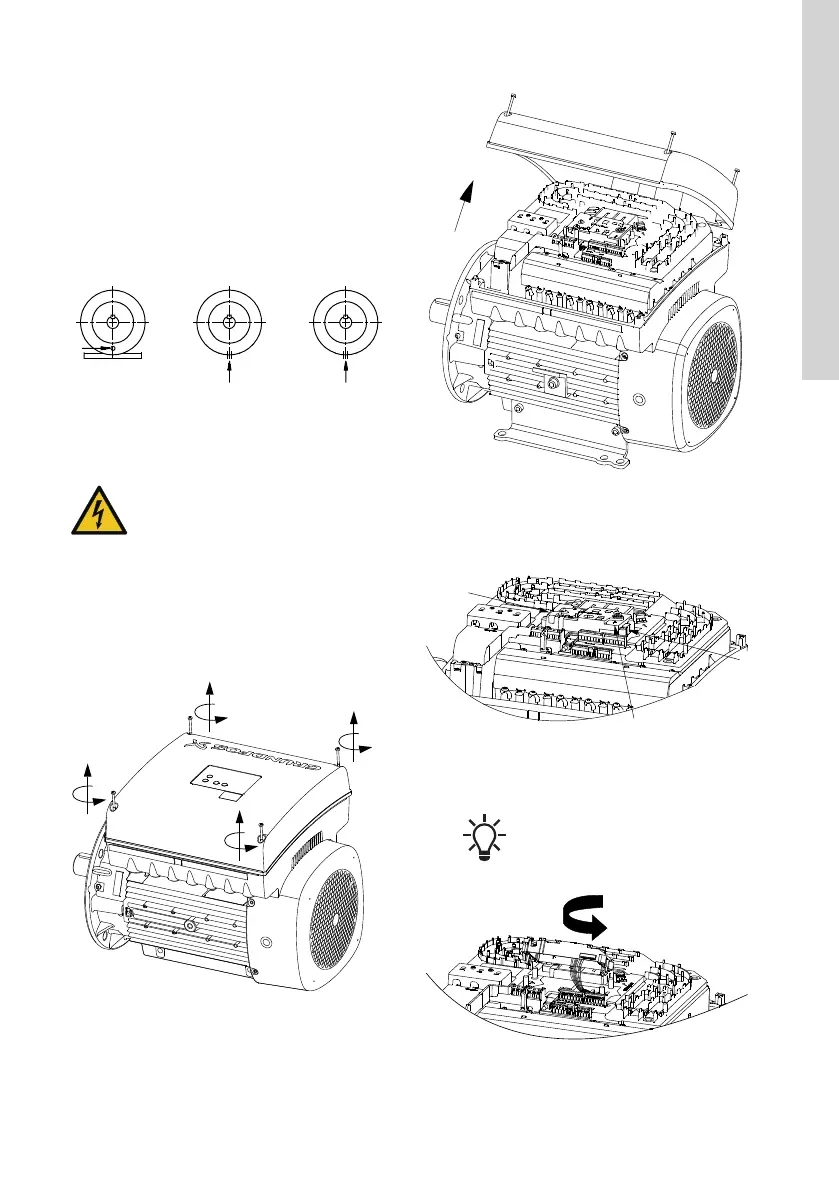

5.1.1.2 Drain holes
The motor has a plugged drain hole on the drive side.
The drain hole is placed in the flange on the drive
side. You can turn the flange 90° to both sides or
180°.
With the drain hole open, the motor becomes self-
venting, allowing water and humid air to escape.
When you open the drain hole, the enclosure class of
the motor will be lower than standard.
B3 B14 B5
TM029037
5.1.2 Changing the position of the operating panel
WARNING
Electric shock
Death or serious personal injury
Switch off the power supply to the
product including the power supply for
the signal relays. Wait at least 5
minutes before you make any
connections in the terminal box.
You can turn the operating panel 180°. Follow the
instructions.
1. Loosen the four screws (TX25) of the terminal box
cover.
TM082854
Model K
2.
Remove the terminal box cover.
TM082855
Model K
3. Press and hold in the two locking tabs (A) while
gently lifting the plastic cover (B).
A
A
B
TM082856
Model K
4. Turn the plastic cover 180°.
Do not twist the cable more than 90°.
180°
TM082857
Model K
13
English (GB)
