4. Assembly and Installation

PNEG-1156ETL Design III Series Grain Stir-Ator CSA 39

3. Always fasten the trolley securely with vise grips or another suitable tool so that it cannot roll back

and forth on the frame rails. Keeping the trolley toward the center of the bin will make lifting the

Stir-Ator track unit into place easier. (See Figure 4AK.)

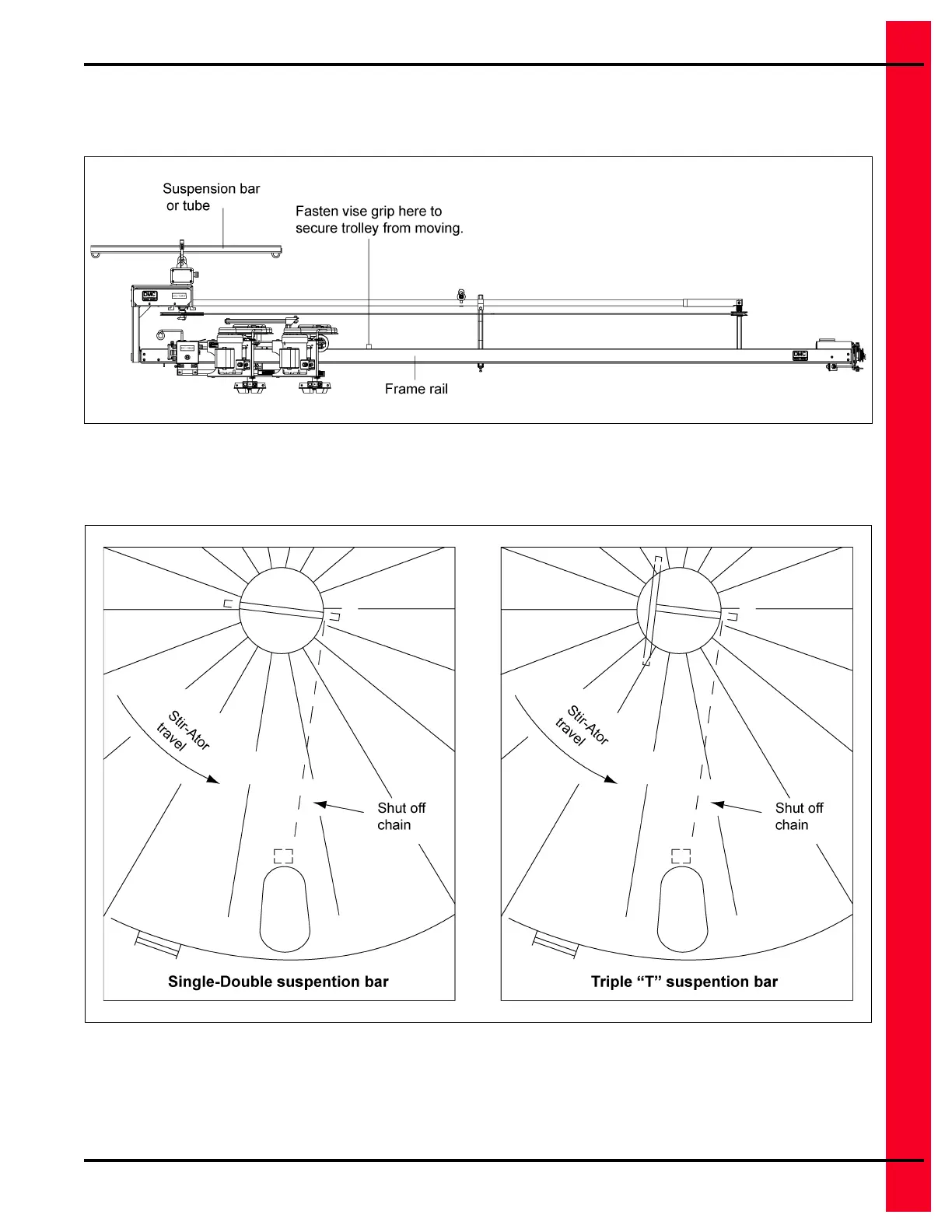

Figure 4AK

NOTE: Check that the shut off hook end of the suspension tube is located properly in relation to the

shut off switch box. (See Figure 4AL.)

Figure 4AL
