4. Assembly and Installation
40 PNEG-1156ETL Design III Series Grain Stir-Ator CSA
4. When the suspension bar is about 16" above the eave height, the ends of the suspension chains
should be placed through loops and around the tube ends and hooked back on the main strand with
the “S” hooks. (See Figure 4AM.) Hang the Stir-Ator 1-1/2" high in the center for each 18' of bin
diameter, with the suspension bar level.

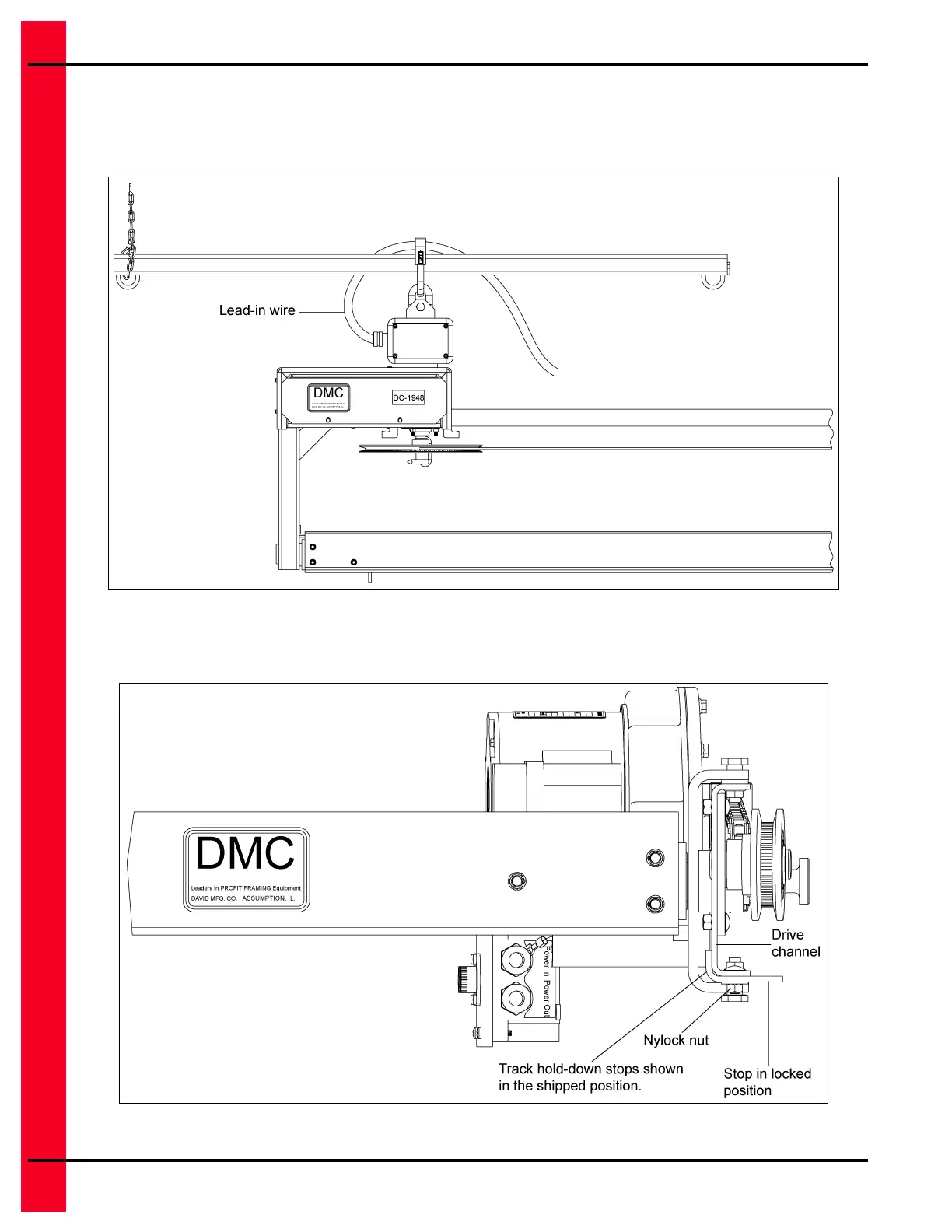

Figure 4AM
5. Lift the outboard end track unit onto the bin wall track. Place the track hold-down stops into the locked
position. (See Figure 4AN.)
Figure 4AN
