4. Assembly and Installation
42 PNEG-1156ETL Design III Series Grain Stir-Ator CSA

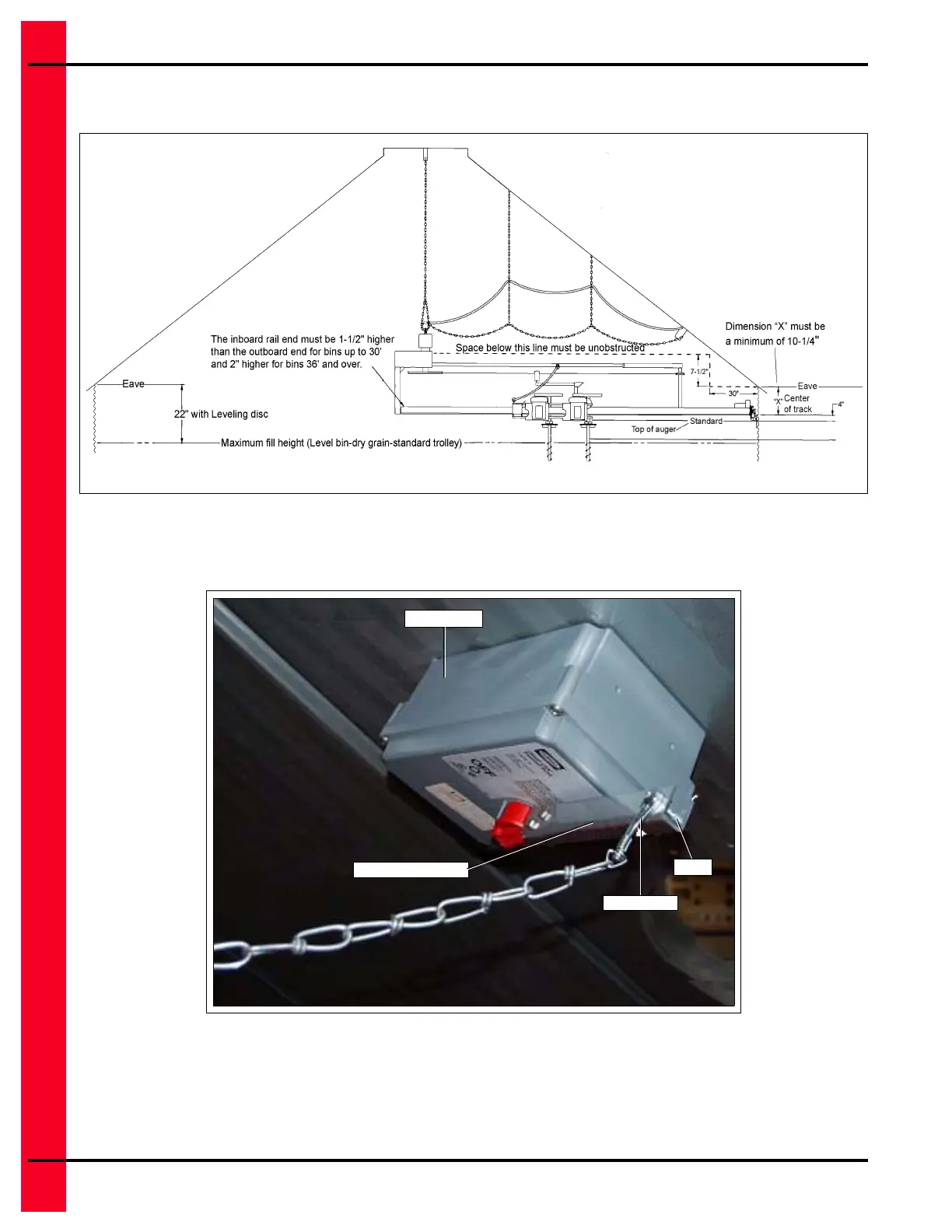

3. Use the shut off support chain(s) to hold the shut off chain so that there is adequate clearance
between the shut off chain and the Stir-Ator as it travels underneath. (See Figure 4AQ.)
Figure 4AQ
4. Attach the chain to the handle extension by clipping it onto the bolt positioned on the end of the
handle extension. (See Figure 4AR.)
Figure 4AR
5. String the lead-in wire through the chain link clevis on the bottom of the suspension bar toward the
bar with the safety chain “S” hook. (Do not attach the wire to the end of the suspension bar.)
The lead-in wire can then be suspended above the safety chain and routed to the switch box.
(See Figure 4AS on Page 43.)
Design III Stir-Ator
Switch box
Chain clip
Bolt
Handle extension
