4. Assembly and Installation
PNEG-1156ETL Design III Series Grain Stir-Ator CSA 47
Slide the auger into the stub and align the holes in the stub shaft and the auger shaft. Place the auger
clamp with the spring pin over the holes so the spring pin is inserted into the auger. Evenly torque the
clamp bolts to 140 ft.-lbs. (See Figure 4AX.)

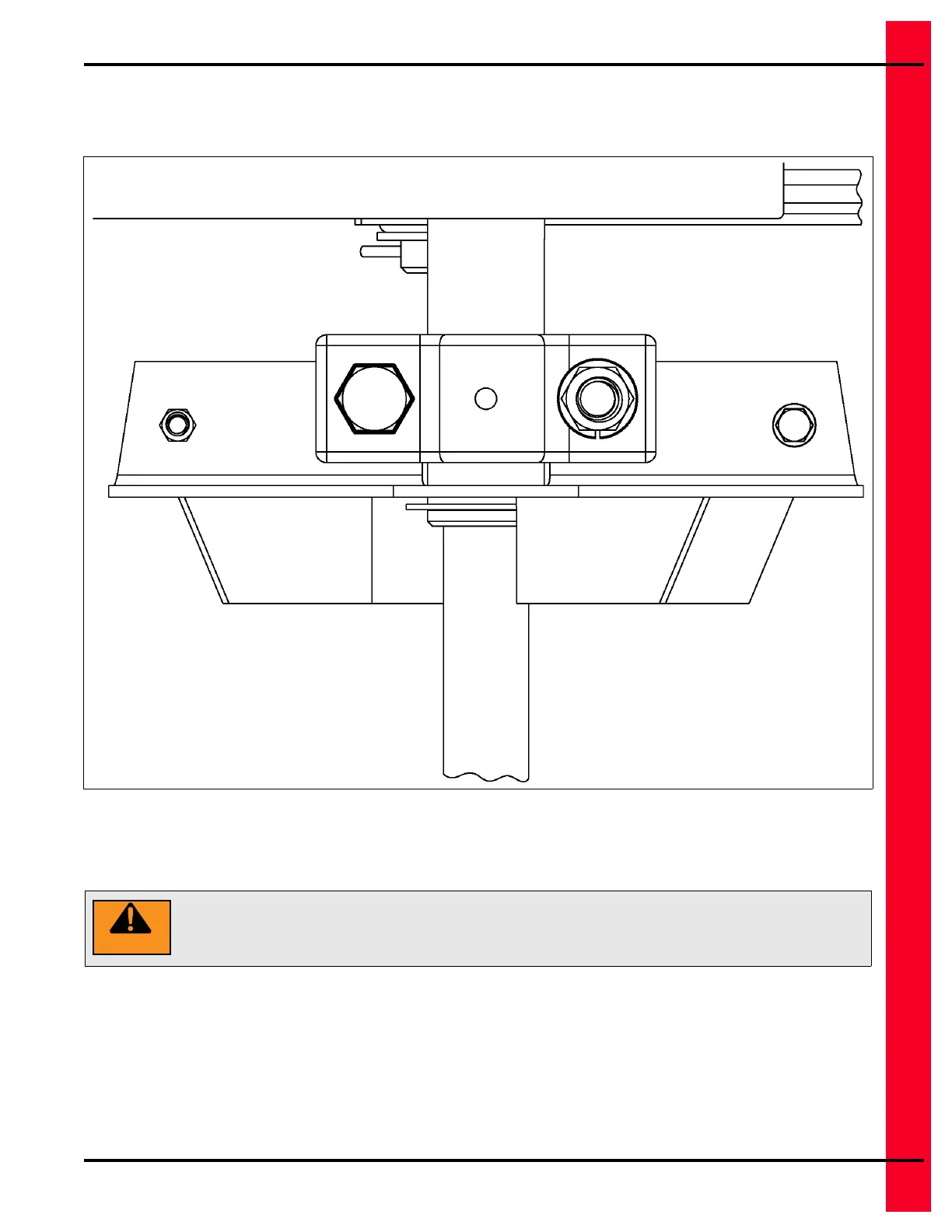

Figure 4AX
To replace the auger, unbolt the auger clamp and remove the clamp and spring pin. This will allow the
auger to be removed.
Do not run augers in an empty bin. Augers can whip and become entangled
causing damage to machine and/or bodily harm.
