GVA G24HTC16 - Rear View and Sockets

6
Guide to the Television

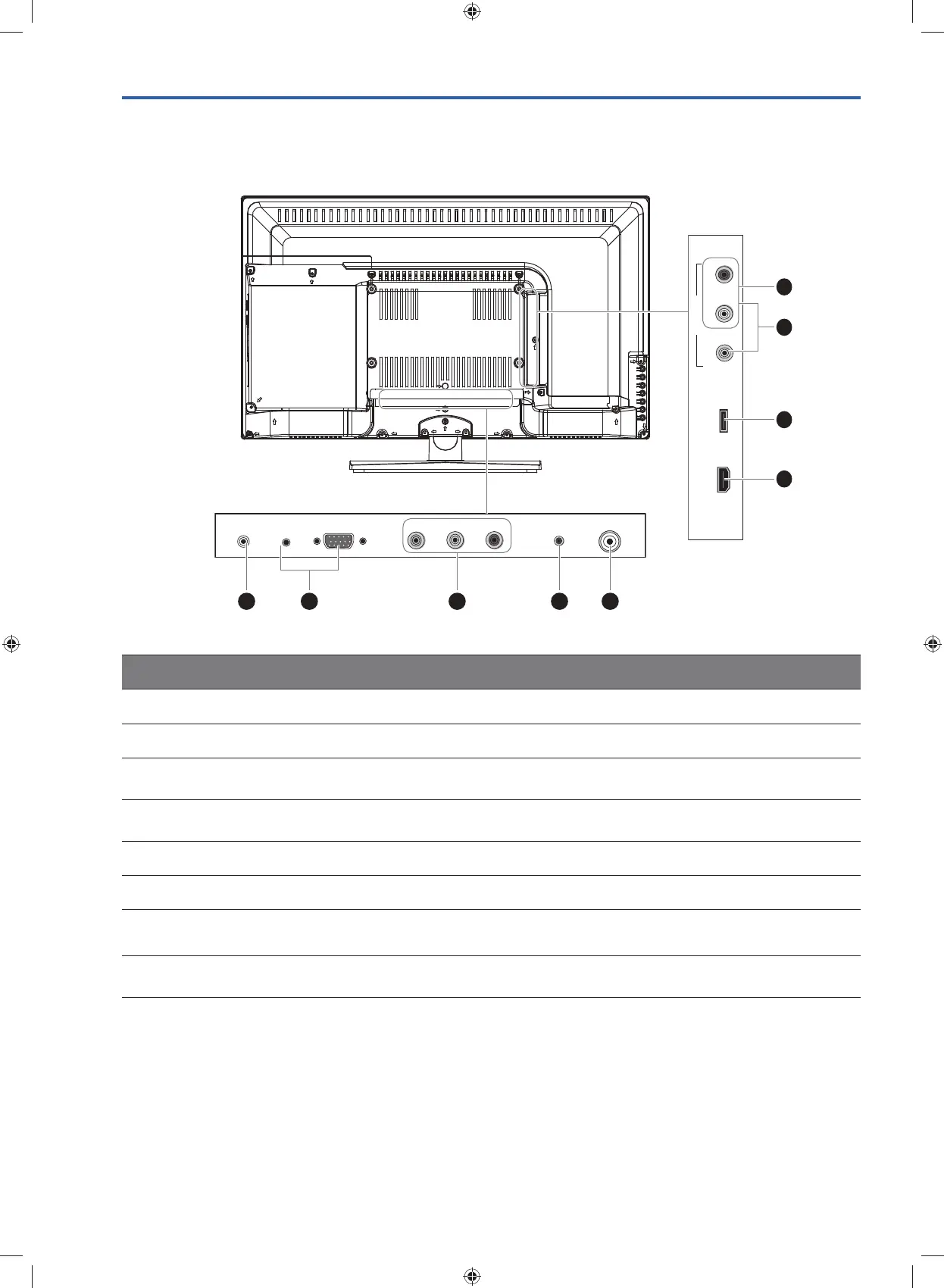

Rear View and Sockets
Item Description
1 HEADPHONE Connects to the headphones.
2 PC AUDIO / VGA Connects to a computer or other devices with a VGA interface.
3 Y, PB, PR / AUDIO (L/R)
Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
4 Digital Audio Output
(Coaxial)
To connect to the audio socket on the digital/standard 5.1 audio system.
5 RF Connects to the aerial socket on the wall with the RF coaxial cable.
6 VIDEO / AUDIO (L/R) Connects to the Composite output sockets on external video devices.
7 USB
Allows the insertion of a USB storage device to play video, audio, photo and text
files (USB mode) and record DTV programmes on to a USB storage device.
8 HDMI
Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-
ray disc player or AV receiver.
1 32 4 5
USBHDMI
RL
AV INPUT
VIDEO
RF
Digital Audio Output
(Coaxial)
PC AUDIO HEADPHONE
VGA Y Pb Pr
8
7
6
3
