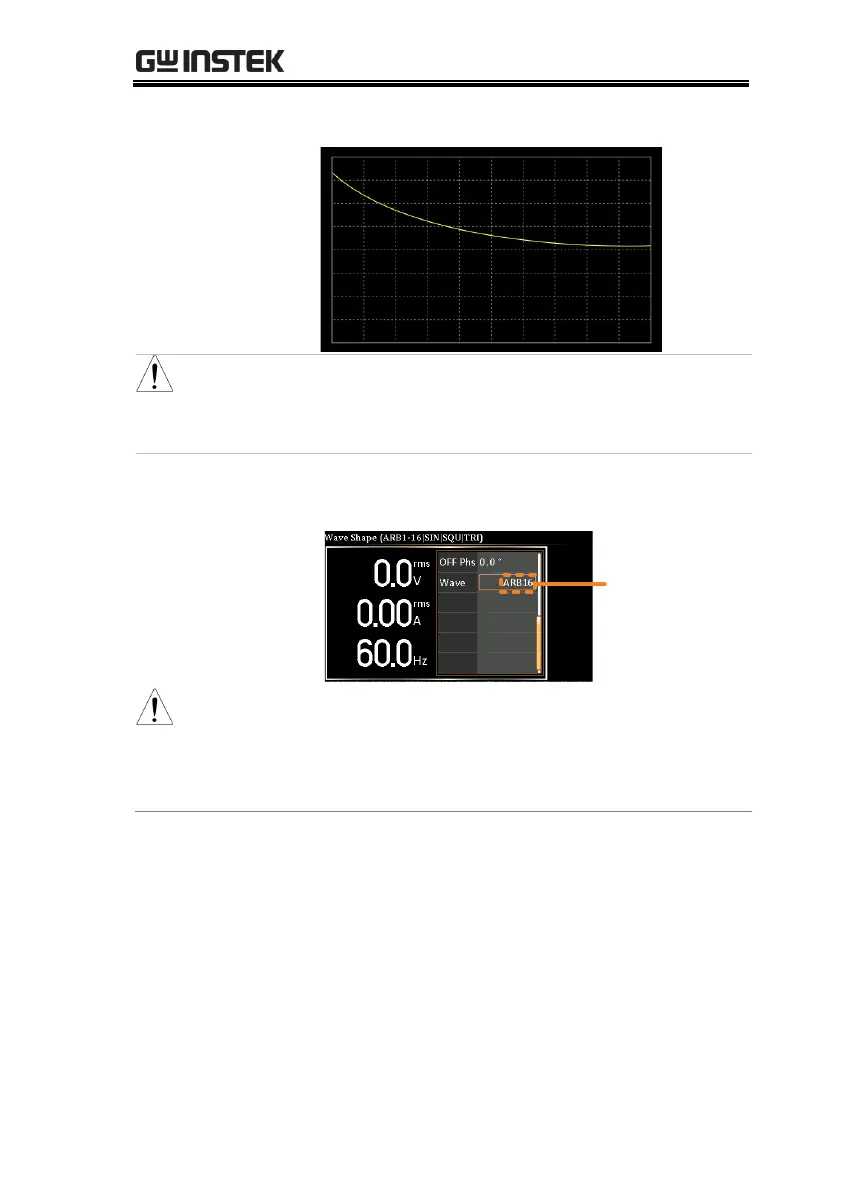

ARB 16
Exponential (falling)
Note
Del ARB1~16 restores back to Default for ARB1~16
(page 126~127). Del All Data restores back to Default
for all ARB (page 127~128).
3. Press Enter to confirm the waveform setting.
Example
ARB 16
selected
Note
When the input peak value of ARB waveform is not in
the full scale 32768, the ratio of maximum value of
voltage output by ARB waveform will decrease
accordingly.
