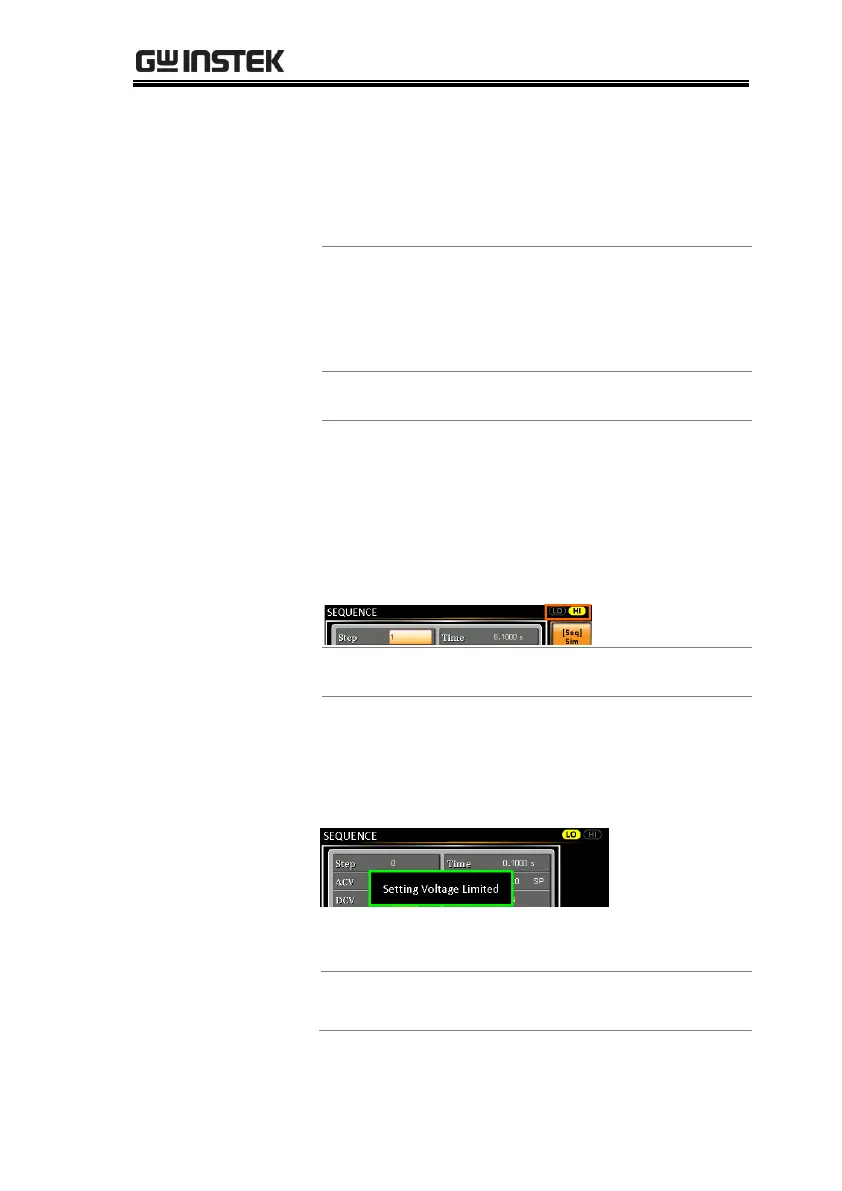

TEST MODE FUNCTION
157
Steps
3. Use the scroll wheel to go to the Step setting
and press Enter.
4. Use the scroll wheel to select the step number. 0
is always the starting step for the sequence.
Step
0 ~ 999
5. Go to the Time setting and set the duration of
the step.
Time
0.0001 ~ 999.9999s
6. In order to adjust both ACV and DCV voltage
range between HI and LO, it is required to set
up outside of the SEQUENCE menu. Refer to
the page 67 for details. The selected range will
be shown on the top bar.
Range
Range
LO - 100V, HI - 200V
7. Go to the ACV setting and set the output
voltage for the step. If you input an ACV value
that is not within the voltage range, the
warning message below will be shown.
Next set the secondary voltage settings to
determine characteristics of the voltage output.
ACV
0.0 ~ 400.0V (Range 200V)
0.0 ~ 200.0V (Range 100V)
