GPP Series User Manual
26

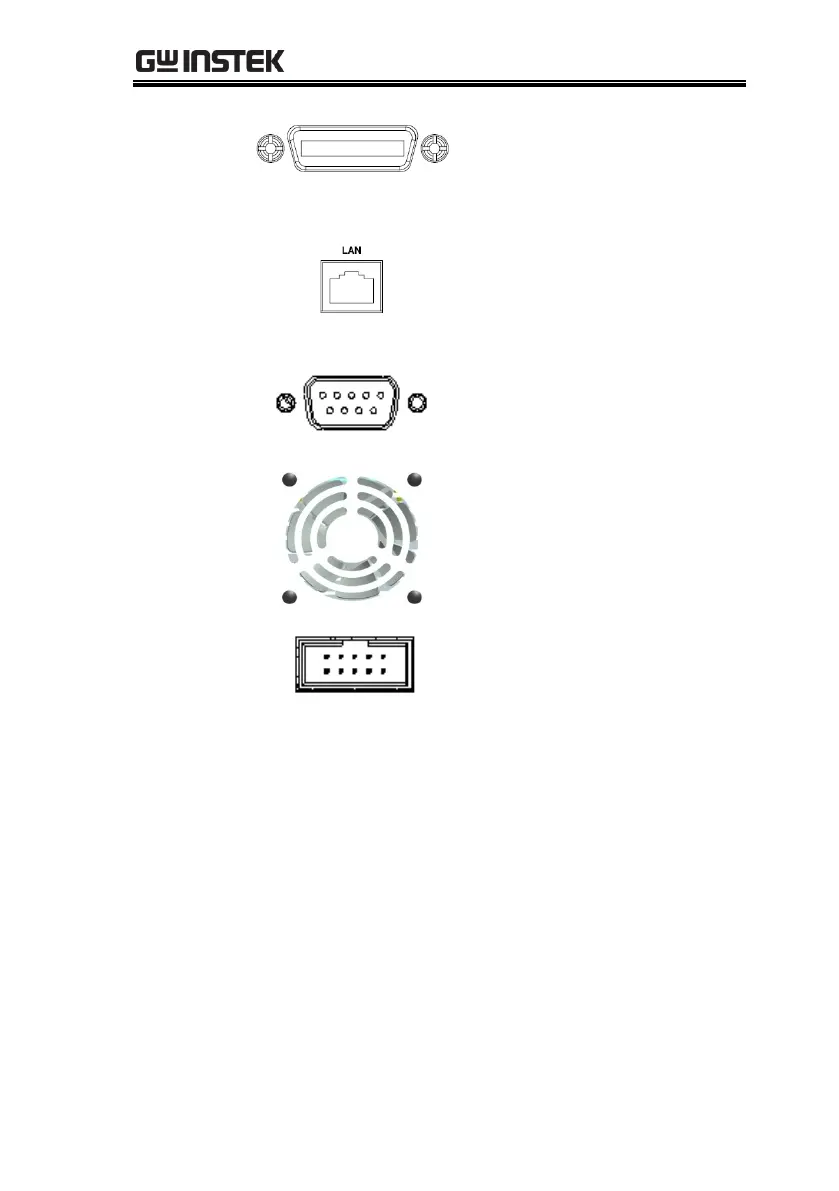

GPIB port
GPIB slave port for re
mote
control. Abides to
IEEE488.2
(SCPI) protocol.
See page
99
for details.
LAN port
LAN port for re
mote
control. See page
100
for
LAN setting and opera
tion
details.
RS 232 port
RS232 port
for remote
control. See
page
96
for
details.
Heat sink
fan
C
ontrol I/O
port
5 ports in all for
input/output c
ontrol. See
page
78
for deta
ils of
configuration.
25
27
Table of Contents
Table of Contents
3
Safety Instructions
6
Safety Symbols
6
Safety Guidelines
7
Power Cord for the United Kingdom
10
Overview
11
Introduction
12
Key Features
15
Front Panel
17
Rear Panel
25
Constant Voltage/Constant Current Crossover Characteristics
27
Getting Started
29
Start up
29
Load Connection
30
Turning the Output On/Off
31
Basic Operation
33
Display Change
33
Source Function
36
Independent Output Mode
41
Tracking Series and Tracking Parallel Modes
42
Load Function
46
Sequence Function
50
Set Sequence Output
50
Set Group Parameter
52
Construct Templet
54
Menu Tree
57
Save and Recall
59
Delay Function
62
Set Delay Output
62
Set Group Parameter
65
Menu Tree
67
Save and Recall
69
Monitor Function
71
Set Monitor
72
Recorder Function
75
Set Recorder
75
Enternal I/O Control
78
Key Function Description
80
File Operation
83
Save/Recall
83
Restore Factory Default Settings
86
System Settings
87
System Information
88
System Settings
89
Firmware Upgrading
91
Description of Using Flash Drive
92
Remote Control
93
Connection Usage
95
Usb
97
Gpib
99
Lan
100
Command Syntax
106
Command List
110
Output Commands
110
Measurement Instructions
110
Display Functions
110
Source and Load Commands
111
Status Commands
116
System Commands
116
System Related Commands
118
IEEE488.2 Common Commands
118
Command Details
119
Measurement Commands
119
Display Commands
121
Output Commands
123
Source and Load Commands
126
Status Commands
166
System Commands
172
System Related Commands
181
SCPI Status Registers SCPI
182
Event Registers
184
Enable Registers
184
Status Byte Register
184
Standard Event Register
186
Status Byte Register Commands
187
Standard Event Register Commands
188
Other Status Register Commands
190
Errors
191
Error Message
191
Command Errors
191
Appendix
195
Replacing the Fuse
195
Specifications
196
Optional Accessories
199
Declaration of Conformity
200
4
