12
4. One person supports the chassis bottom with one hand, holds the front part of the chassis with
the other hand, and pushes the chassis into the rack gently.
Make sure the shoulder screws make close contact with the upper edges of the rear mounting
brackets, as shown in Figure 13.
5. The othe
r person attaches the front mounting brackets with M6 screws (user-supplied) to the
front rack posts.
Make sure the switch is installed securely in the rack.

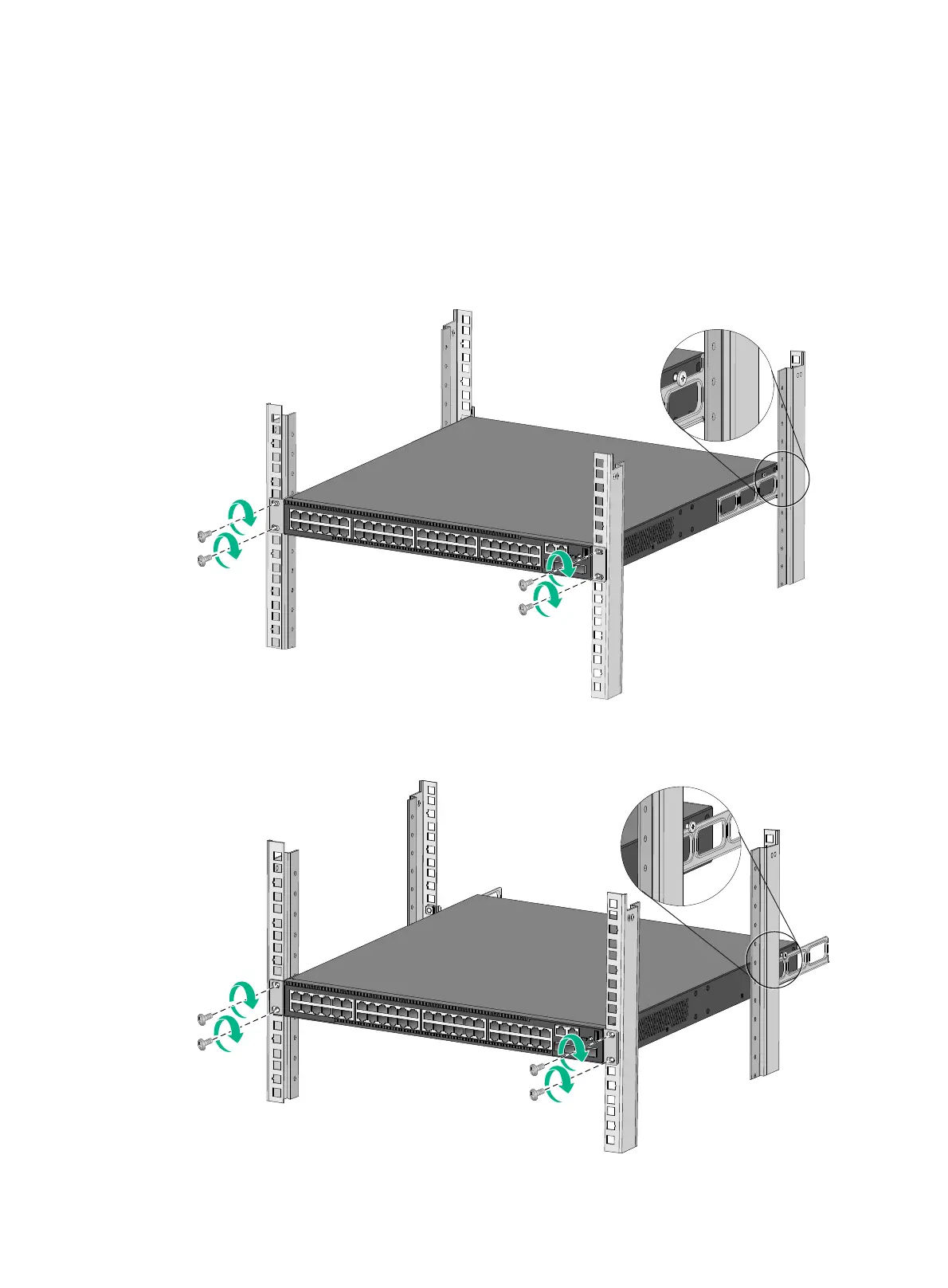

Figure 13 Mounting the switch in the rack (with the wide flange of the rear mounting
brackets inside the rack)
Figure 14 Mounting the switch in the rack (with the wide flange of the rear mounting
brackets outside the rack)
